2J4C01P

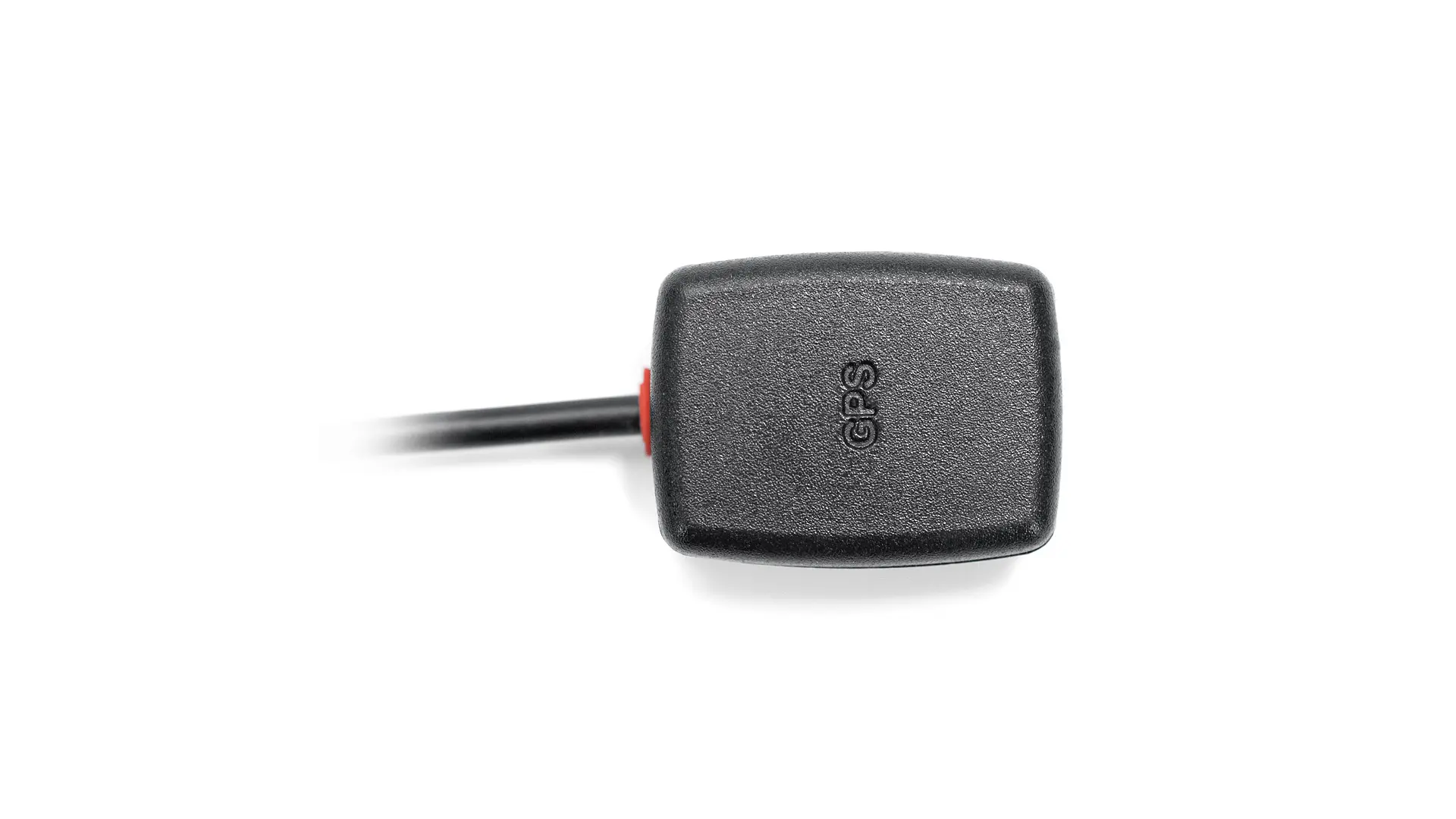

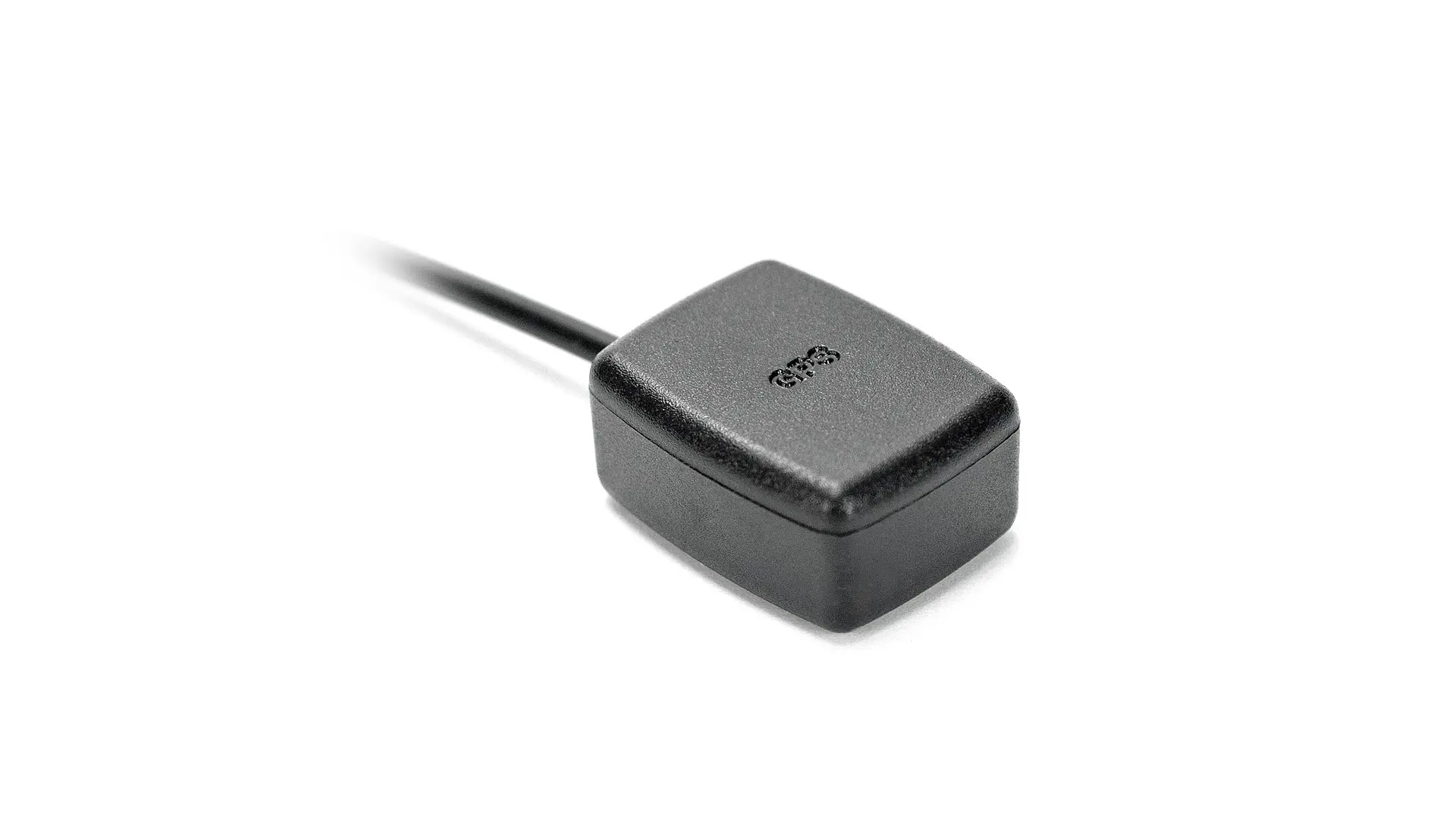

Active GPS/GNSS/ 1575MHz Customizable Adhesive Mount Antenna
Connections (1)
1×
GPS / QZSS / Galileo - L1
| Mounting | Adhesive Mount |
|---|---|
| Dimensions (mm) | 28 × 21.3 × 14 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42 |
| VSWR | ~1.5:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 26-27 @ 3-5 V |
| Saw Filter Type | No Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 40-138 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Adhesive Mounting sticker included
Active GNSS Antenna
Non-Filter GNSS
27 dB GNSS Active Gain
Voltage Range 2.7 - 5.5 V
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
