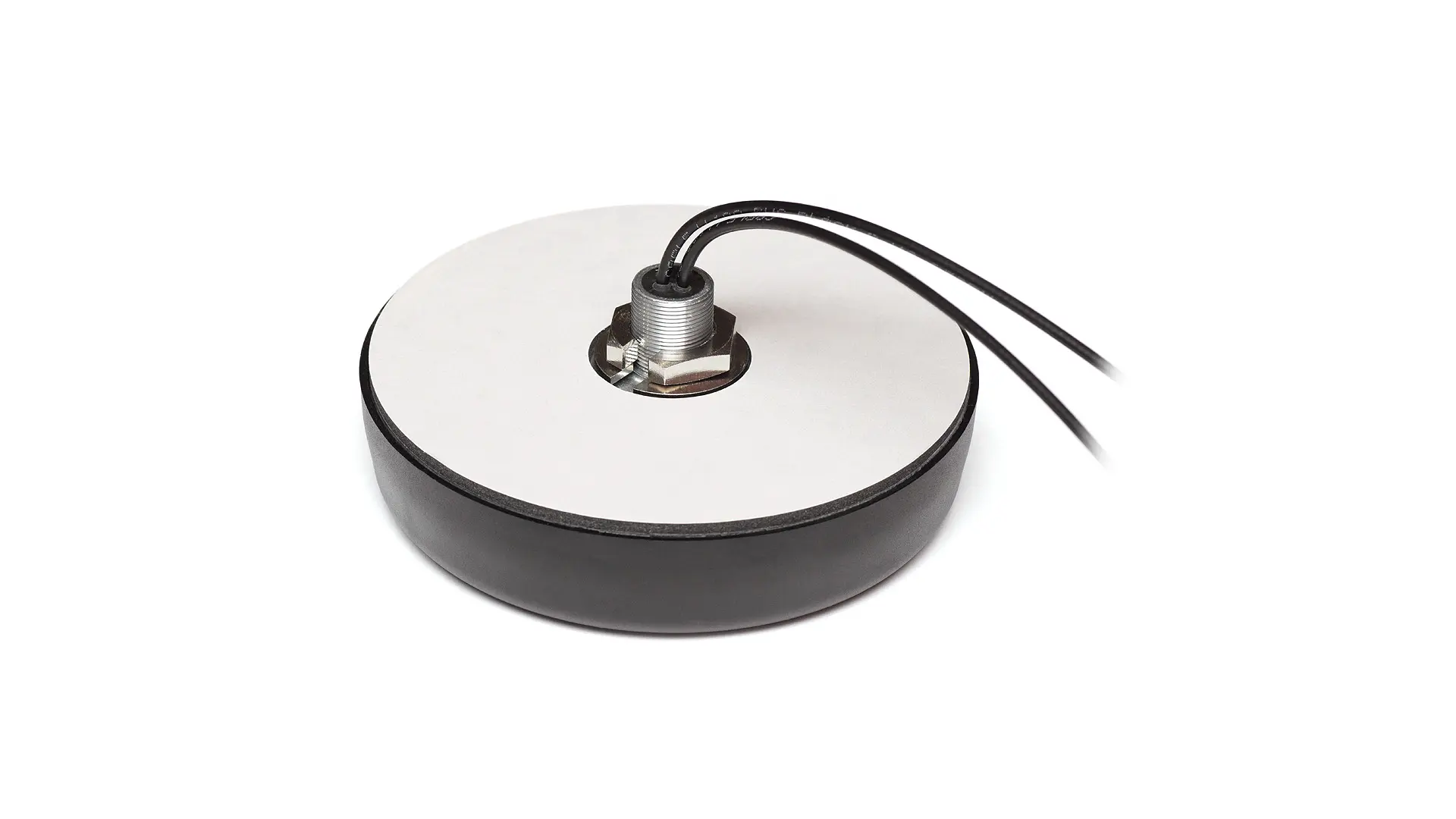

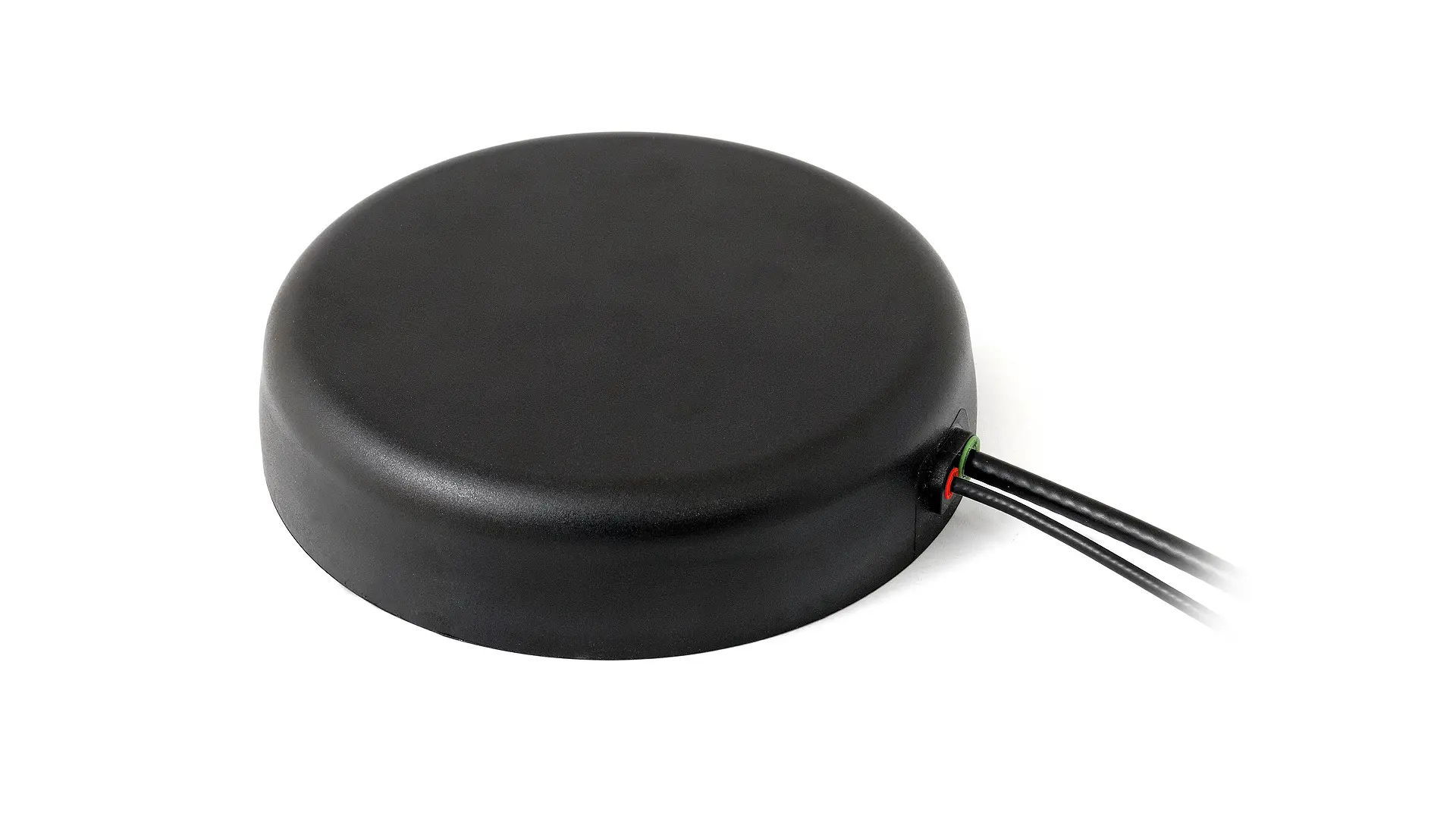

2J6507BGF-M18-SP
TETRA/UHF, GPS/GLONASS/Galileo Heavy Duty Antenna
Connections (2)
1×
TETRA / UHF / LMR - 380-470 MHz
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 136 × 31.5 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
TETRA / UHF / LMR - 380-470 MHz
| Standards | TETRA/UHF |
|---|---|
| Frequency | 380-470 |
| VSWR | ~4.8:1 |
| Efficiency (%) | ~36.8 |
| Peak Gain (dBi) | ~-0.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
connection 2
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage Range (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.2 |
| Current Consumption (mA) | 22 @ 5V |
| Power Consumption (mW) | max 138 mW |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
24 dB GNSS Active Gain
Public safety TETRA Antenna
Post-Filter GNSS
-0.2 dBi TETRA Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Security & Safety
Defense & Public Safety
Navigation & Positioning
Marine & Maritime
