2J0202-C638

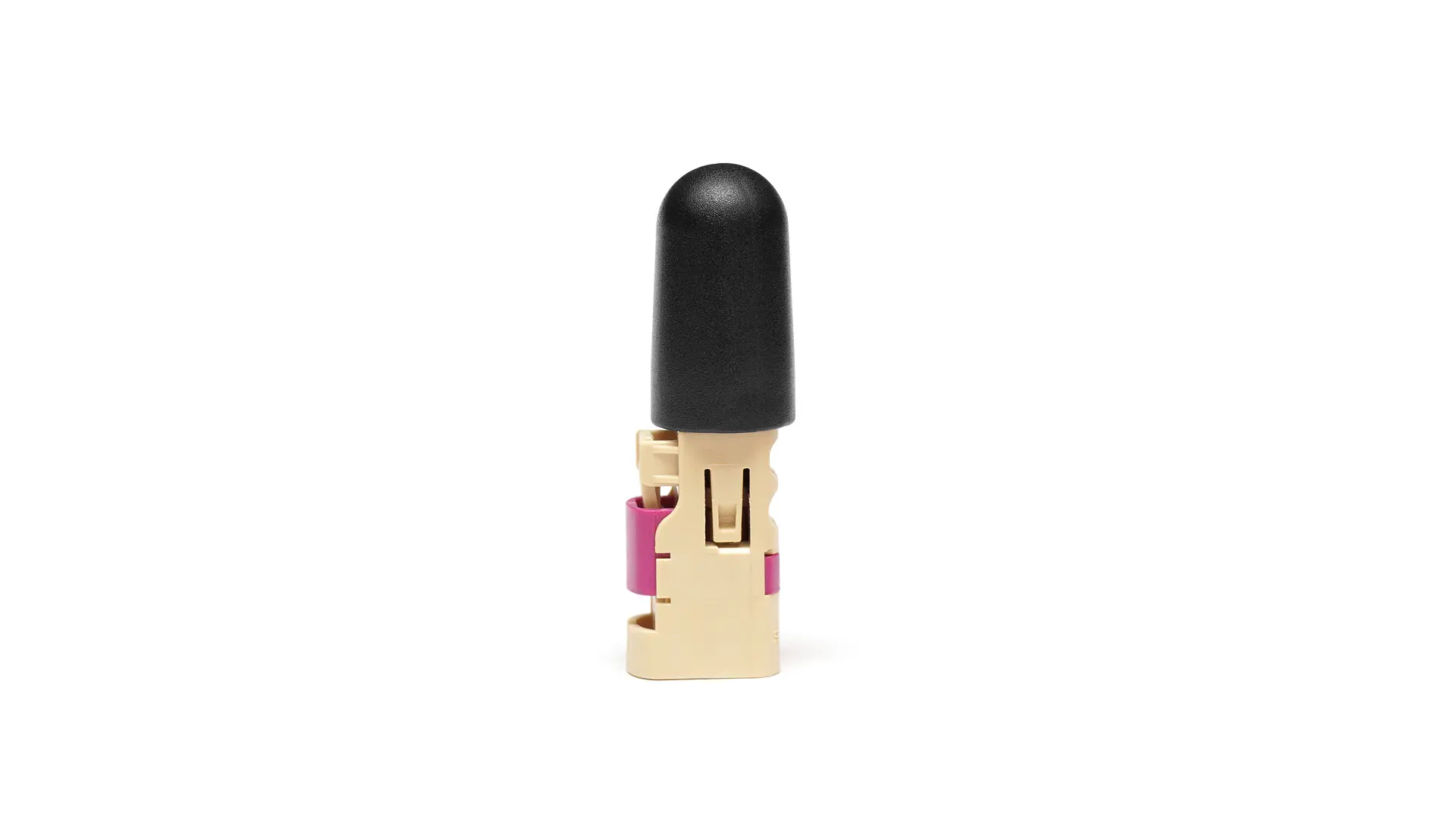

Compact 2.4/5.0 GHz WiFi ISM Monopole Fakra Connector Mount Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | Ø 12.5 × 44.5 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.3:1, ~3.8:1 |
| Efficiency (%) | ~61.1, ~25.7 |
| Peak Gain (dBi) | ~2.6, ~-0.3 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Monopole Antenna
Small Form Factor
Ground Plane Dependent
High Gain
2.6 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
