Selecting the appropriate antenna is a critical step of any connected device - Talk to Antenna Experts

Marine & Maritime, 2-in-1 Antennas

Browse our selection of products including antennas, mounting brackets, and development kits.

2-in-1

Marine & Maritime

Products per page

2J6584BGF-M18-SP

Discus 2-in-1 5GNR Sub-6GHz and GPS/GNSS UWB Screw Mount Antenna.

Connections (2)

1×

5G NR / Cellular / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 136 × 31.5

Mounting:

Screw Mount

Certificate:

IP67, IP69K, IK09

Ground Plane Dependent

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

0.6 dBi 5G NR Peak Gain

View Product

2J6984BGF

Phoenix 5GNR/4G LTE/3G/2G and GPS/GLONASS Screw Mount Antenna.

Connections (2)

1×

5G NR / Cellular / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 25.6

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Independent

High Performance

Customizable Cable and Connector

Low Profile

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

5.1 dBi 5G NR Peak Gain

View Product

2J6A84BGF

Helm 5GNR/4G LTE/3G/2G and GPS/GLONASS Screw Mount Antenna.

Connections (2)

1×

5G NR / Cellular / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 65.5

Mounting:

Screw Mount

Certificate:

IP67, IP69, IK09

Ground Plane Dependent

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

3.7 dBi 5G NR Peak Gain

View Product

2J6A84BGF-RB-SP

Helm 5GNR/4G LTE/3G/2G and GPS/GLONASS Screw Mount Antenna.

Connections (2)

1×

5G NR / Cellular / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 69 × 65.5

Mounting:

Screw Mount

Certificate:

IP67, IP69, IK09

Ground Plane Dependent

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

3.7 dBi 5G NR Peak Gain

View Product

2J7584BG

5GNR/4G LTE/3G/2G and GPS/GLONASS High Performance IP67 IP69 Antenna.

Connections (2)

1×

5G NR / Cellular / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 64 × 81.4

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Dependent

High Performance

Customizable Cable and Connector

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

Non-Filter GNSS

27 dB GNSS Active Gain

GNSS Voltage Range 2.7 - 5.5 V

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

3.6 dBi 5G NR Peak Gain

View Product

2J7684BGF

Mini-Shaker 5GNR/4G LTE/3G/2G and GPS/GLONASS Screw Mount Antenna.

Connections (2)

1×

5G NR / Cellular / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 50 × 50.8

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Independent

Customizable Cable and Connector

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

2.9 dBi 5G NR Peak Gain

View Product

2J6041BGF

Falcon 4G LTE/3G/2G GPS/GLONASS/Galileo Compact Versatile SM Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 14.7

Mounting:

Screw Mount

Ground Plane Independent

Wide band Antenna

698-2700 MHz 4GLTE Bands

Customizable Cable and Connector

Low Profile

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

5.0 dBi 4G LTE Peak Gain

View Product

2J6941BGF

Phoenix 4G LTE/3G/2G Cellular and GNSS/GPS Screw Mount Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 25.6

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Independent

Wide band Antenna

698-2700 MHz 4GLTE Bands

High Performance

Customizable Cable and Connector

Low Profile

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

5.3 dBi 4G LTE Peak Gain

View Product

2J6A41BF

4G LTE/3G/2G, GPS/Galileo Pre-Filter GNSS Anti-Rotation Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 65.5

Mounting:

Screw Mount

Certificate:

IP67, IK09, IP69K

Ground Plane Dependent

Wide band Antenna

698-2700 MHz 4GLTE Bands

Customizable Cable and Connector

4.0 dBi 4G LTE Peak Gain

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

View Product

2J6A41BGF

4G LTE/3G/2G, GPS/Galileo Ground Plane Dependent Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 65.5

Mounting:

Screw Mount

Certificate:

IP67, IK09, IP69K

Ground Plane Dependent

Wide band Antenna

698-2700 MHz 4GLTE Bands

Customizable Cable and Connector

4.0 dBi 4G LTE Peak Gain

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

View Product

2J7541BG

4G LTE/3G/2G, GPS/Galileo High Performance IP67 IP69K Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 64 × 81.4

Mounting:

Screw Mount

Certificate:

IP67, IP69K

Ground Plane Dependent

Wide band Antenna

698-2700 MHz 4GLTE Bands

2.6 dBi 4G LTE Peak Gain

Customizable Cable and Connector

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

Non-Filter GNSS

27 dB GNSS Active Gain

GNSS Voltage Range 2.7 - 5.5 V

View Product

2J7641BGF

Mini-Shaker 4G LTE/3G/2G, GPS/GLONASS/Galileo low-profile Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 50 × 50.8

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Independent

Wide band Antenna

698-2700 MHz 4GLTE Bands

Customizable Cable and Connector

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

3.2 dBi 4G LTE Peak Gain

View Product

2J7741BGF

Shaker 4G LTE/3G/2G, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 60 × 69

Mounting:

Screw Mount

Certificate:

IP67, IP69, IK09

Ground Plane Dependent

Wide band Antenna

698-2700 MHz 4GLTE Bands

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

4.3 dBi 4G LTE Peak Gain

View Product

2J8741BGF

2-in-1 Cellular/LTE and GNSS ‘Shark Fin’ Antenna.

Connections (2)

1×

4G LTE / Cellular / LPWA / NB-IoT

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

102 × 63 × 63

Mounting:

Screw Mount

Certificate:

IP67 after mounted, IP69 after mounted, IK09

Ground Plane Dependent

Wide band Antenna

698-2700 MHz 4GLTE Bands

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

3.1 dBi 4G LTE Peak Gain

View Product

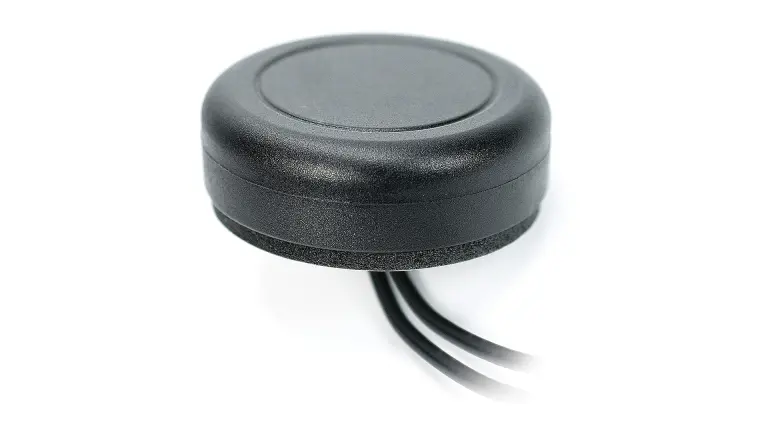

2J4700BGF

CELLULAR, GPS/GLONASS/Galileo 2 Cables Customizable Antenna.

Connections (2)

1×

3G / 2G / Cellular

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 52 × 17.5

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Independent

Customizable Cable and Connector

Low Profile

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

-0.3 dBi 3G 2G Peak Gain

View Product

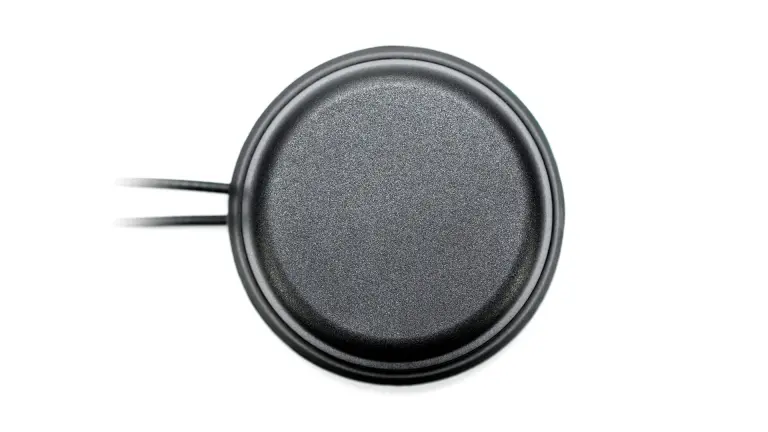

2J6600BGF

CELLULAR, GPS/GLONASS/Galileo 2 Cables Customizable Antenna.

Connections (2)

1×

3G / 2G / Cellular

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 15

Mounting:

Screw Mount

Certificate:

IP67, IP69K

Ground Plane Independent

Customizable Cable and Connector

Low Profile

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

27 dB GNSS Active Gain

GNSS Voltage Range 2.7 - 5.5 V

Post-Filter GNSS

-3.3 dBi 3G 2G Peak Gain

View Product

2J6700BGF

CELLULAR, GPS/GLONASS/Galileo 2 Cables Customizable Antenna.

Connections (2)

1×

3G / 2G / Cellular

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 36.5

Mounting:

Screw Mount

Certificate:

IP67, IP69K, IK10

Ground Plane Independent

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

Pre-Filter GNSS

GNSS Voltage Range 2.7 - 5.5 V

24 dB GNSS Active Gain

-2.1 dBi 3G 2G Peak Gain

View Product

2J8600BGF

CELLULAR, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (2)

1×

3G / 2G / Cellular

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

98 × 60 × 46

Mounting:

Screw Mount

Certificate:

IP69, IP67

Ground Plane Dependent

Customizable Cable and Connector

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

Pre-Filter GNSS

GNSS Voltage Range 2.7 - 5.5 V

24 dB GNSS Active Gain

-3.9 dBi 3G 2G Peak Gain

View Product

2J6033BGF

Falcon GPS GLONASS Galileo Iridium Certified Screw Mount Antenna.

Connections (2)

1×

IRIDIUM

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 14.7

Mounting:

Screw Mount

Certificate:

Iridium Certified

Ground Plane Independent

Customizable Cable and Connector

Low Profile

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Iridium Certified Antenna

4.5 dBic IRIDIUM Peak Gain

View Product

2J6039BGF

Falcon 868/915 MHz ISM and GPS/GLONASS/Galileo Compact Antenna.

Connections (2)

1×

868 & 915 MHz ISM / Sigfox / LoRa / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 14.7

Mounting:

Screw Mount

Ground Plane Independent

Customizable Cable and Connector

Low Profile

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Dual Band 868/915 MHz ISM Antenna

1.6 dBi 868/915 MHz ISM Peak Gain

View Product

2J6507BGF-M18-SP

TETRA/UHF, GPS/GLONASS/Galileo Heavy Duty Antenna.

Connections (2)

1×

TETRA / UHF / LMR - 380-470 MHz

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 136 × 31.5

Mounting:

Screw Mount

Certificate:

IP67, IP69, IK09

Ground Plane Dependent

Customizable Cable and Connector

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

GNSS Voltage Range 2.7 - 5.5 V

24 dB GNSS Active Gain

Public safety TETRA Antenna

Post-Filter GNSS

-0.2 dBi TETRA Peak Gain

View Product

2J6603BGF

Blackhat 2-in-1 Combi WiFi 2.4/5.0GHz ISM GPS/GNSS Screw Mount Antenna.

Connections (2)

1×

2.4 / 5.0 GHz WIFI / ZigBee / ISM

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 15

Mounting:

Screw Mount

Certificate:

IP67, IP69K

Ground Plane Independent

Customizable Cable and Connector

Low Profile

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

2.9 dBi WIFI Peak Gain

View Product

2J6703B

WiFi ISM, GPS/Galileo Anti-Rotation IP67 IP69K IK10 Antenna.

Connections (2)

1×

2.4 / 5.0 GHz WIFI / ZigBee / ISM

1×

GPS / QZSS / Galileo - L1

Dimensions:

Ø 77.3 × 36.5

Mounting:

Screw Mount

Certificate:

IP67, IP69K, IK10

Ground Plane Independent

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

4.3 dBi WIFI Peak Gain

26 dB GNSS Active Gain

Non-Filter GNSS

GNSS Voltage Range 3.0 - 5.0 V

View Product

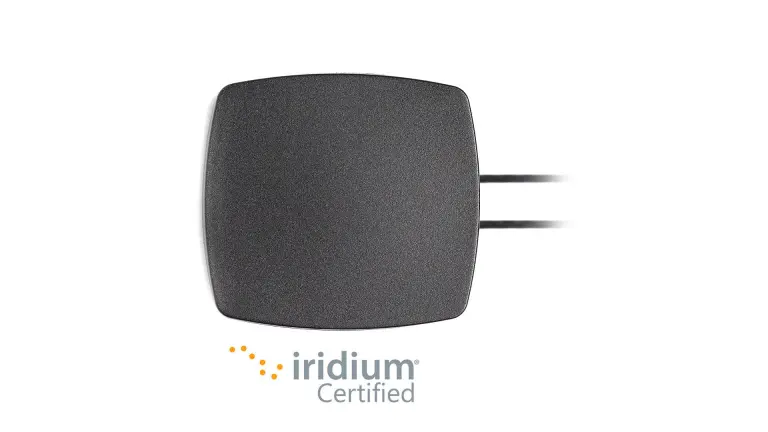

2J6933BGFz

Phoenix GPS/GLONASS/Galileo Iridium Certified Screw Mount Antenna.

Connections (2)

1×

IRIDIUM

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 25.6

Mounting:

Screw Mount

Certificate:

IP67, IP69, Iridium Certified

Ground Plane Independent

High Performance

Customizable Cable and Connector

Low Profile

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Iridium Certified Antenna

5.2 dBic IRIDIUM Peak Gain

View Product

2J6939BGF

Phoenix 868/915 MHz ISM GPS/GNSS Screw Mount Antenna.

Connections (2)

1×

868 & 915 MHz ISM / Sigfox / LoRa / LPWA

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

80 × 74 × 25.6

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Independent

Customizable Cable and Connector

Low Profile

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Dual Band 868/915 MHz ISM Antenna

2.7 dBi 868/915 MHz ISM Peak Gain

View Product

2J7107BGF

Big Medusa 2-in-1 TETRA/UHF, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (2)

1×

TETRA / UHF / LMR - 380-470 MHz

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 96 × H 130

Mounting:

Screw Mount

Certificate:

IP67, IP69, IK09

Ground Plane Dependent

Customizable Cable and Connector

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Public safety TETRA Antenna

Loaded Dipole

2.5 dBi TETRA Peak Gain

View Product

2J7225BG

GPS/GLONASS/Galileo, 169 MHz ISM-ERMES Antenna.

Connections (2)

1×

ERMES / VHF - 169 MHz

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 60 × 97

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Dependent

Customizable Cable and Connector

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

Non-Filter GNSS

27 dB GNSS Active Gain

GNSS Voltage Range 2.7 - 5.5 V

View Product

2J7703BGF-RB-SP

Shaker 2.4/5.0/6.0 GHZ WIFI 6E / WIFI 7 ISM, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (2)

1×

2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

Ø 54 × 69

Mounting:

Screw Mount

Certificate:

IP67, IP69, IK09

Ground Plane Dependent

Customizable Cable and Connector

WIFI 6E / WIFI 7 Antenna

Heavy Duty antenna

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

3.7 dBi WIFI Peak Gain

View Product

2J8407BGF

TETRA/UHF, GPS/GLONASS/Galileo Antenna.

Connections (2)

1×

TETRA / UHF / LMR - 380-470 MHz

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

99 × 60 × 154

Mounting:

Screw Mount

Certificate:

IP67, IP69

Ground Plane Dependent

Customizable Cable and Connector

Anti-Rotation Mounting

2-in-1 Combination Antenna

Active GNSS Antenna

Pre-Filter GNSS

27 dB GNSS Active Gain

GNSS Voltage Range 2.7 - 5.5 V

Public safety TETRA Antenna

2.0 dBi TETRA Peak Gain

View Product

2J9607JBWGF-B12JWa-B10BW

TETRA/UHF, GPS/GLONASS/Galileo Configurable Mounting Marine Antenna.

Connections (2)

1×

TETRA / UHF / LMR - 380-470 MHz

1×

GPS / GLONASS / QZSS / Galileo - L1

Dimensions:

266 × 110 × 74

Mounting:

Screw Mount, Adhesive Mount, Pole Mount

Certificate:

IP67

Ground Plane Independent

Customizable Cable and Connector

Adhesive Mounting sticker included

2-in-1 Combination Antenna

Active GNSS Antenna

Pre-Filter GNSS

GNSS Voltage Range 2.7 - 5.5 V

24 dB GNSS Active Gain

Public safety TETRA Antenna

Compact Marine antenna

Configurable Mount options

-2.0 dBi TETRA Peak Gain

View Product

Get Quote

Marine & Maritime, 2-in-1 Antennas

2J6584BGF-M18-SP

2J6984BGF

2J6A84BGF

2J6A84BGF-RB-SP

2J7584BG

2J7684BGF

2J6041BGF

2J6941BGF

2J6A41BF

2J6A41BGF

2J7541BG

2J7641BGF

2J7741BGF

2J8741BGF

2J4700BGF

2J6600BGF

2J6700BGF

2J8600BGF

2J6033BGF

2J6039BGF

2J6507BGF-M18-SP

2J6603BGF

2J6703B

2J6933BGFz

2J6939BGF

2J7107BGF

2J7225BG

2J7703BGF-RB-SP

2J8407BGF

2J9607JBWGF-B12JWa-B10BW

Stay Connected
