2JP0434B

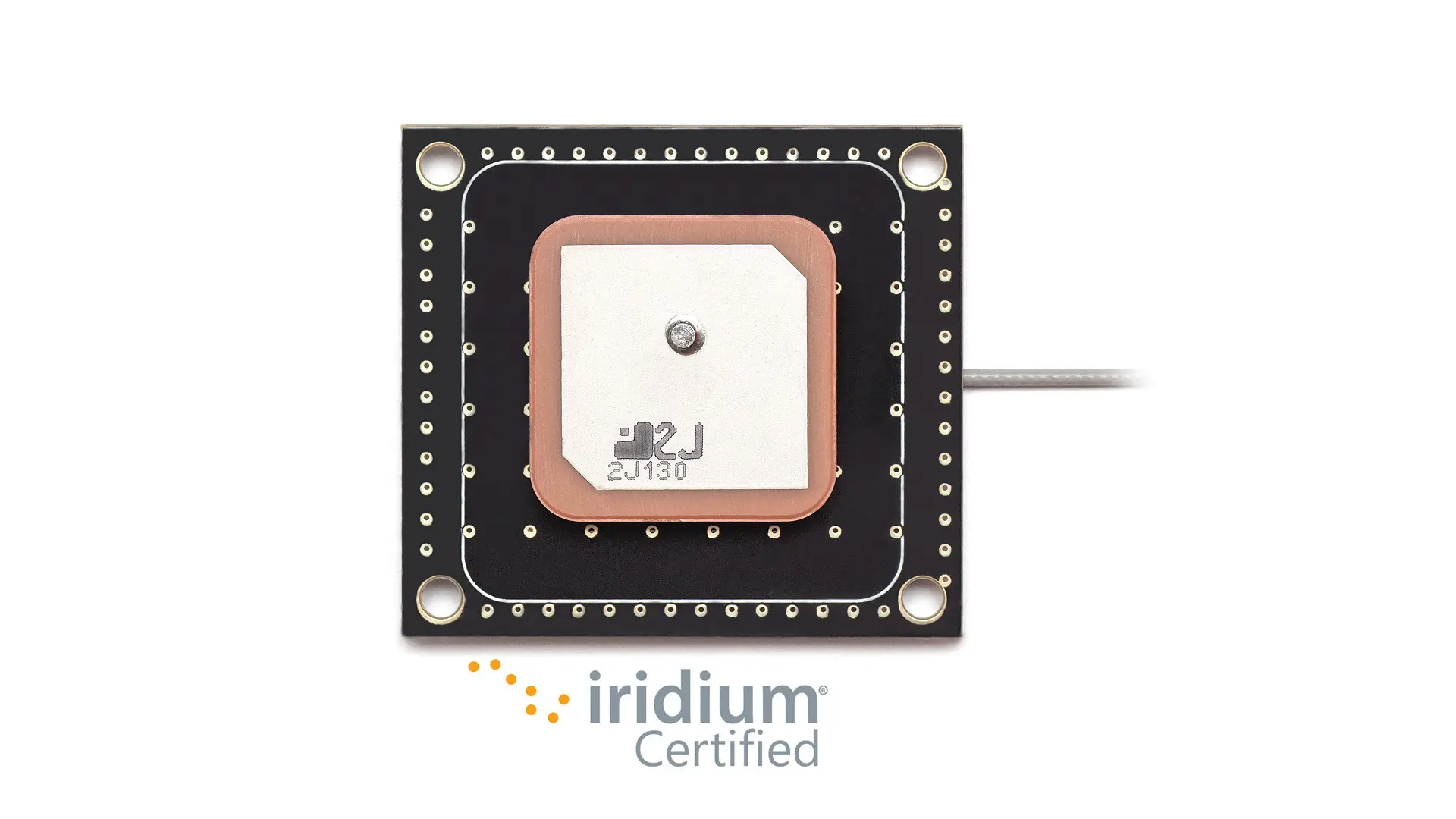

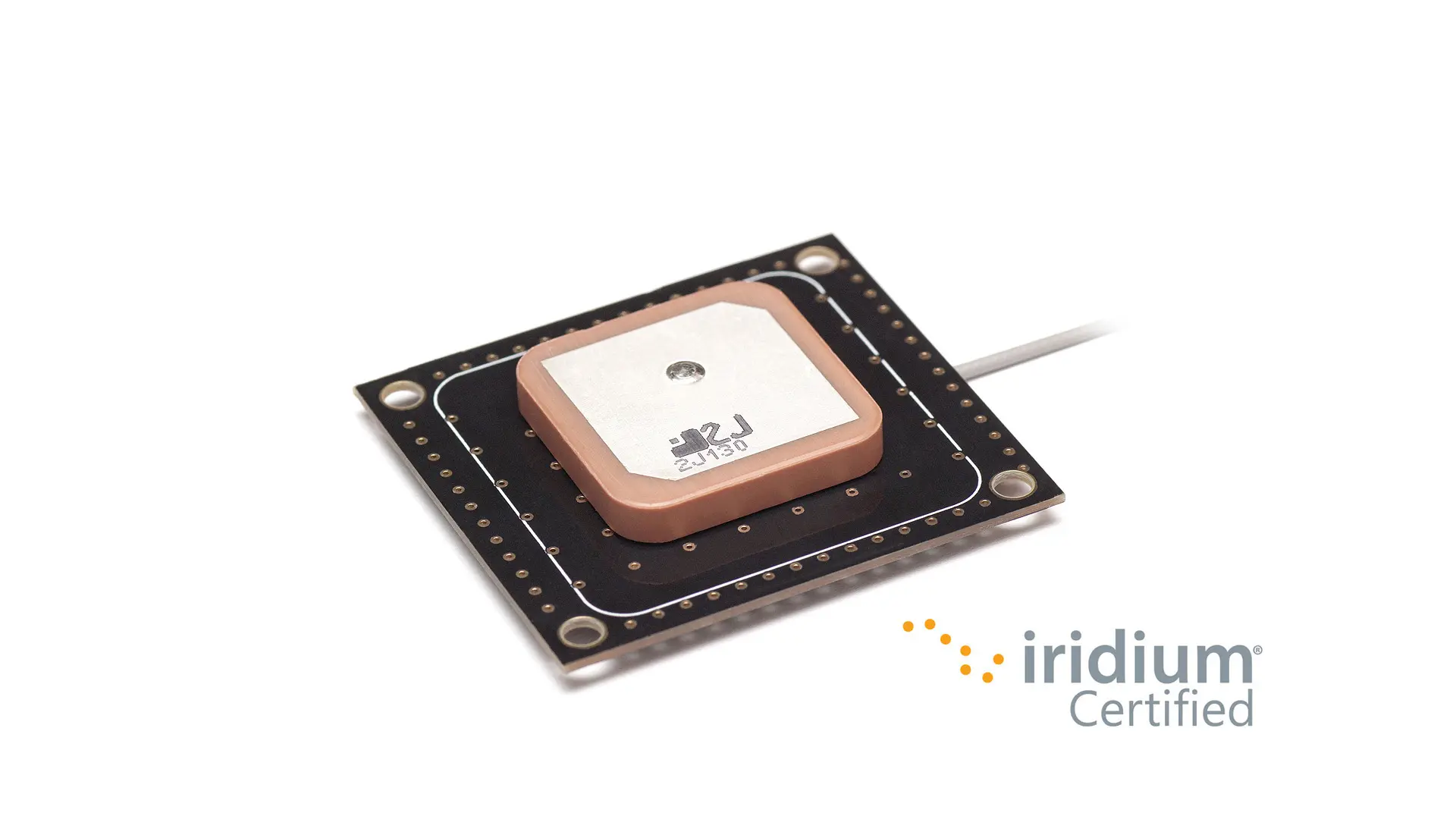

GNSS/GPS/Galileo/Iridium Internal Passive Ceramic Screw Mount Antenna
Connections (1)
1×
GPS & IRIDIUM
| Mounting | Screw Mount Module |
|---|---|
| Dimensions (mm) | 46 × 42 × 7.8 |
| Operating temperature | -40 °C to +85 °C |
| Note | Patent Pending |
| Certificates | Iridium Certified |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS & IRIDIUM
| Standards | GPS/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1575.42, 1616-1627 |
| Peak Gain (dBi) | ~2.5, ~2.6 |
| Efficiency (%) | ~66.6, ~65.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Internal Antenna
Iridium Certified Antenna
Passive GNSS-IRIDIUM Ceramic Antenna
Single Feed Technology
2.6 dBi Peak Gain

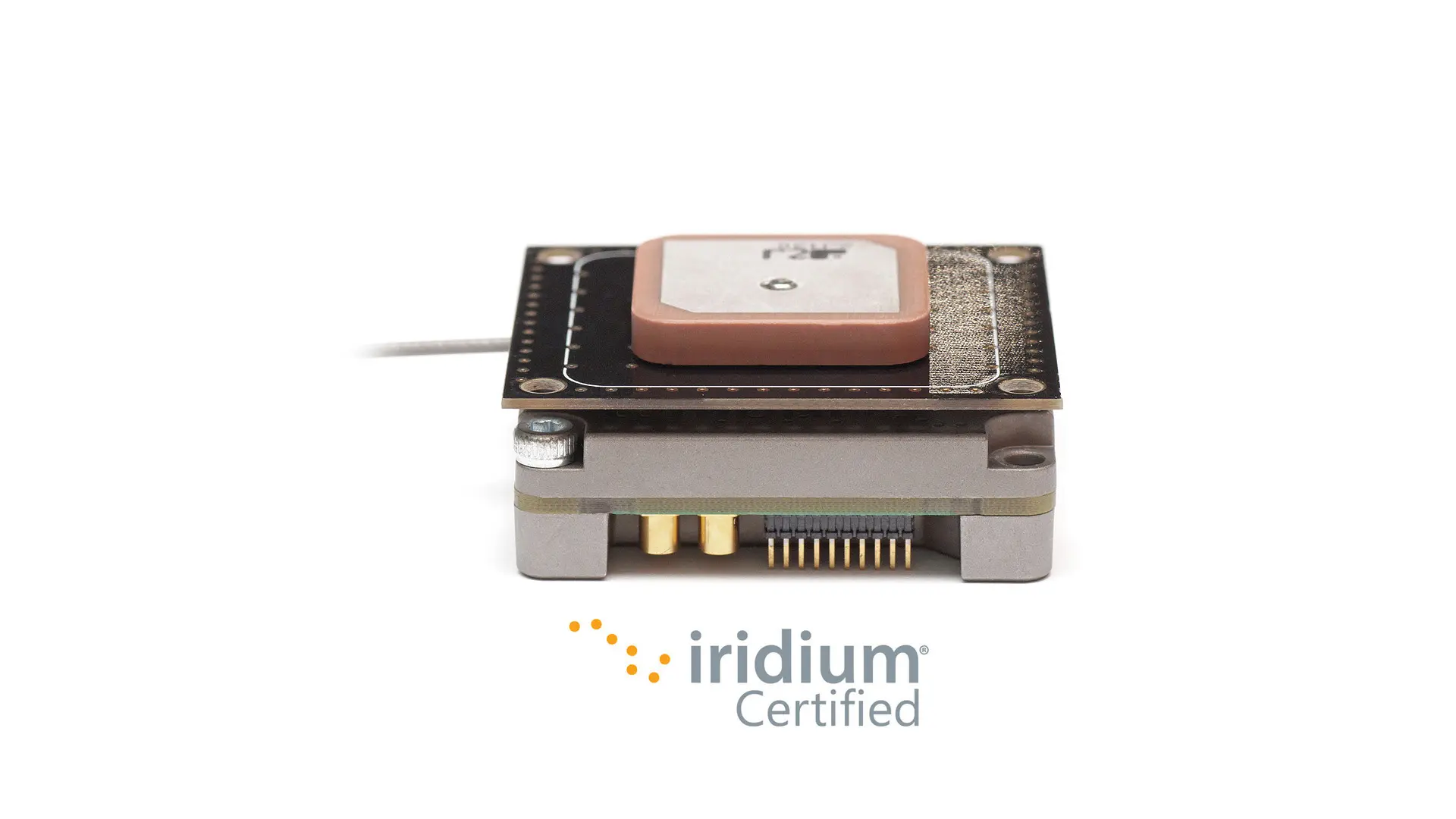

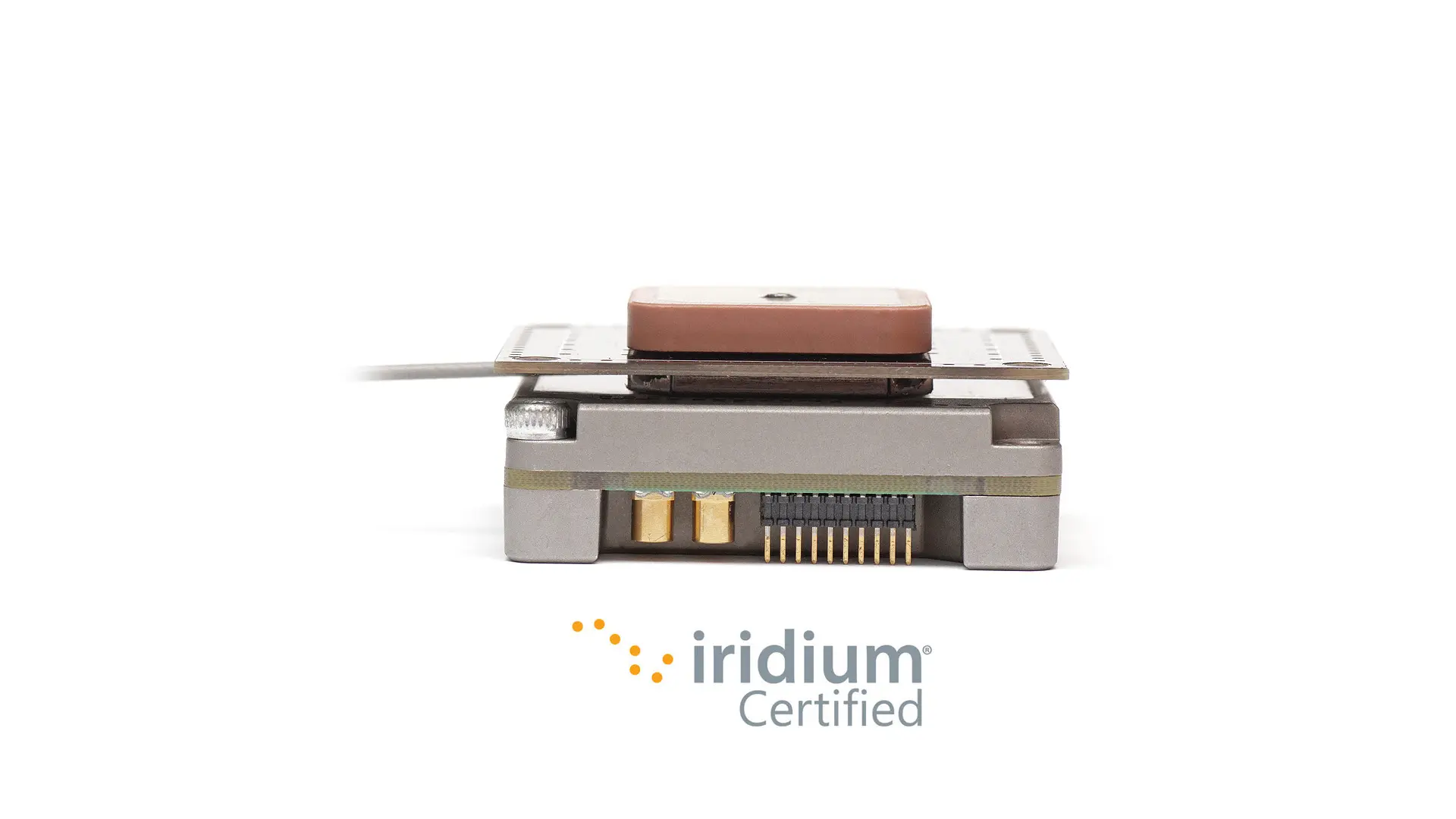

Screw on Feature on Iridium Module
Socket Antenna Module Technology
Patent Pending
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
