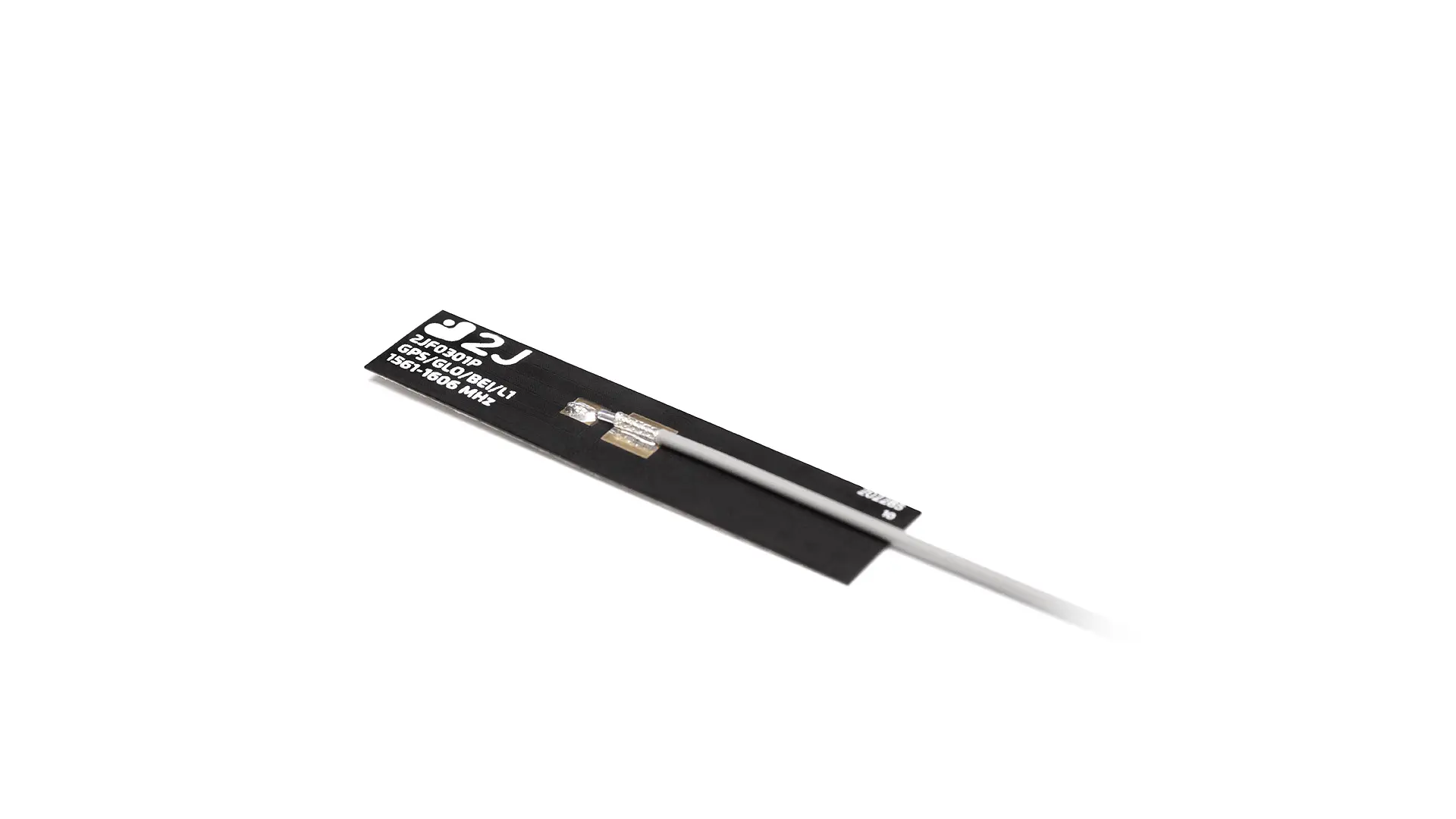

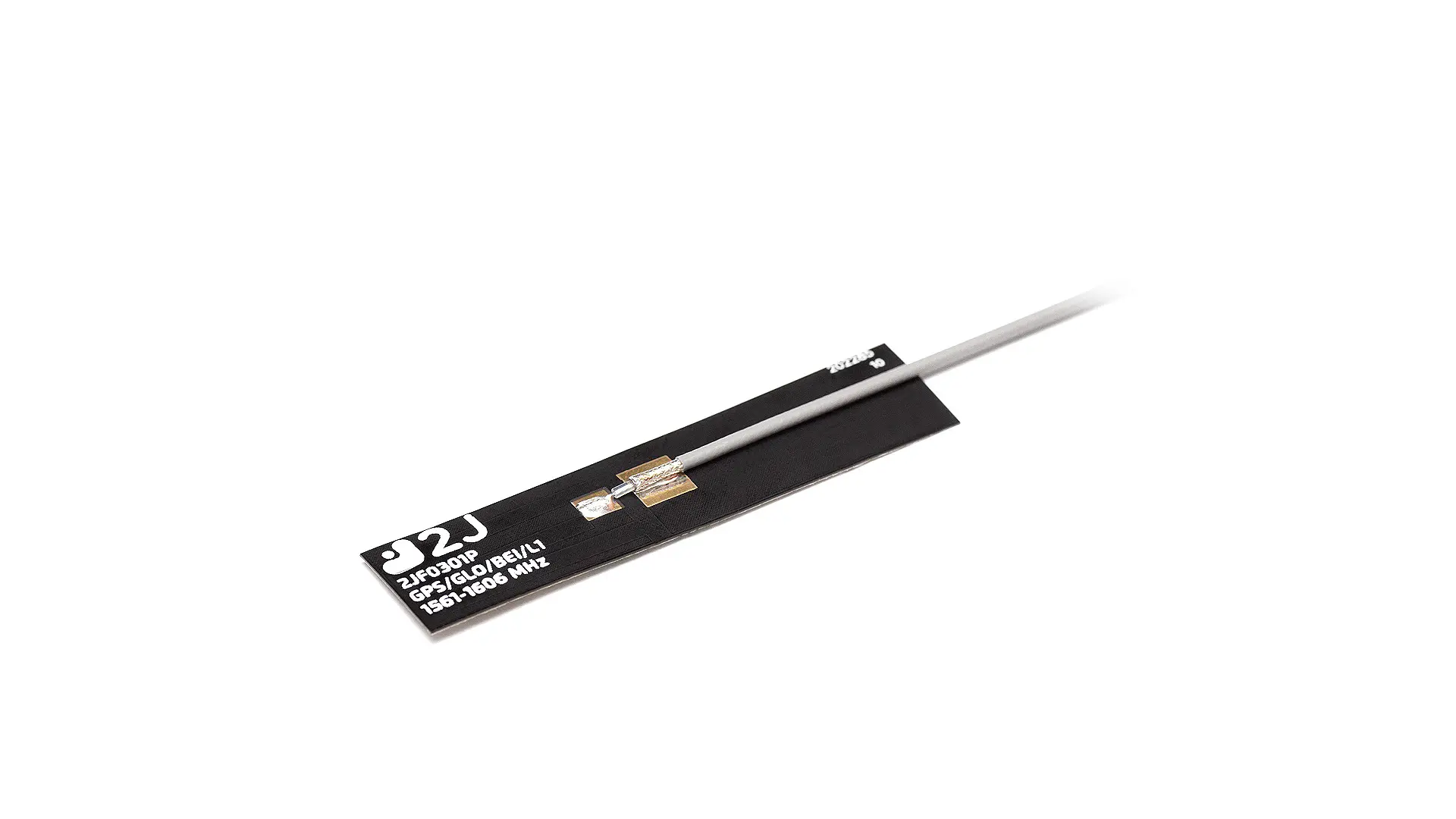

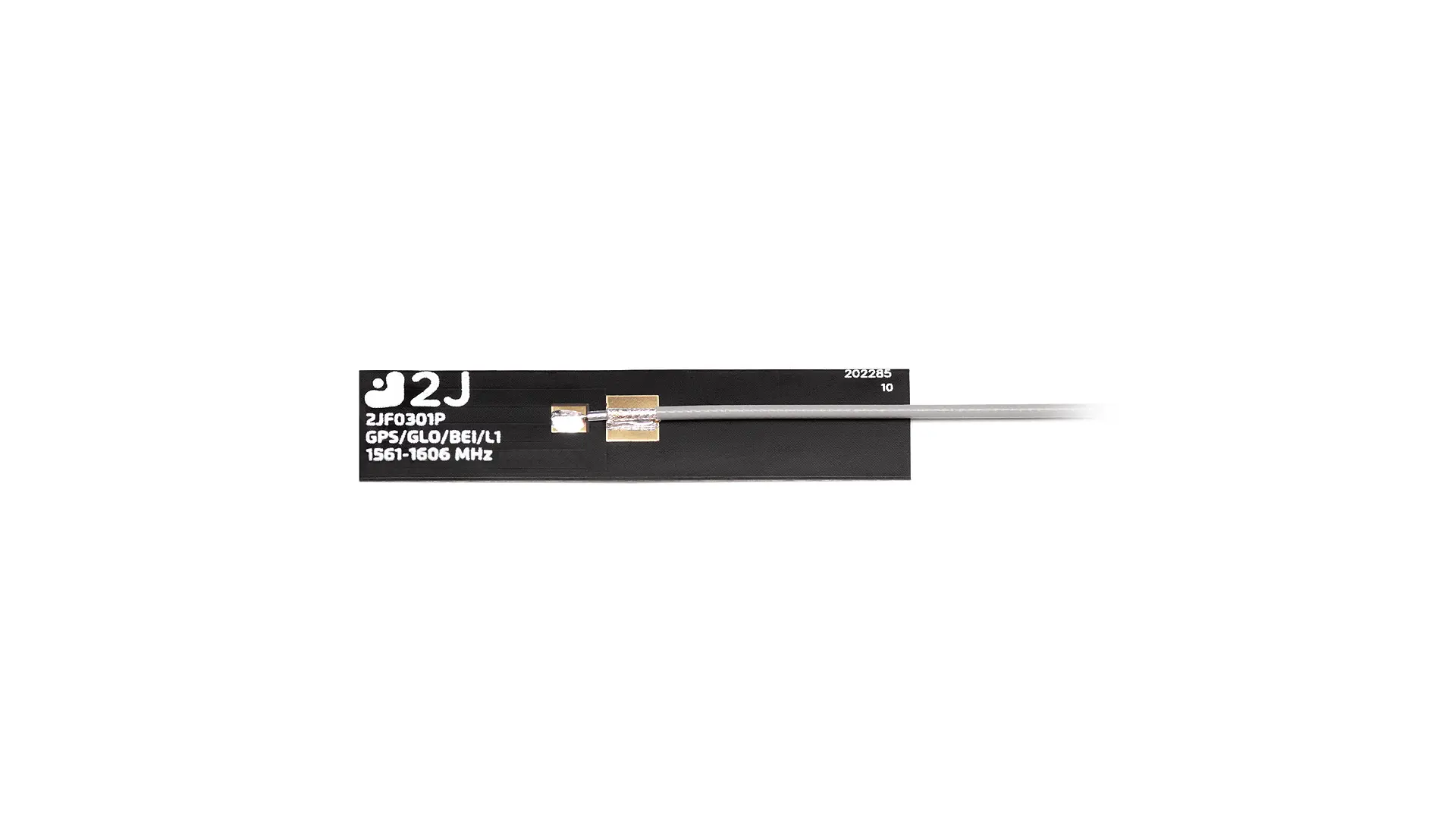

2JF0301P
GPS/GLONASS/BeiDou/Galileo Flexible ultra-thin PCB Adhesive Antenna
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 55.4 × 12.4 × 0.2 |
| Operating temperature | -40 °C to +85 °C |
| Note | Flexi Embedded Antenna |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Standards | BeiDou/GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1561.098, 1575.42, 1598-1606 |
| Passive Gain (dBi) | ~3.7, ~3.9, ~4.0 |
| Efficiency (%) | ~75.0, ~76.0, ~75.0 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarization | Linear |
Antenna Description
Key Features
Ground Plane Independent
High Efficiency
Self-Adhesive
Customizable Cable and Connector
Flexi Internal Antenna
Passive GNSS Antenna
4.0 dBi GNSS Peak Gain
Cable Detuning Resistance
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
