2JF0201P

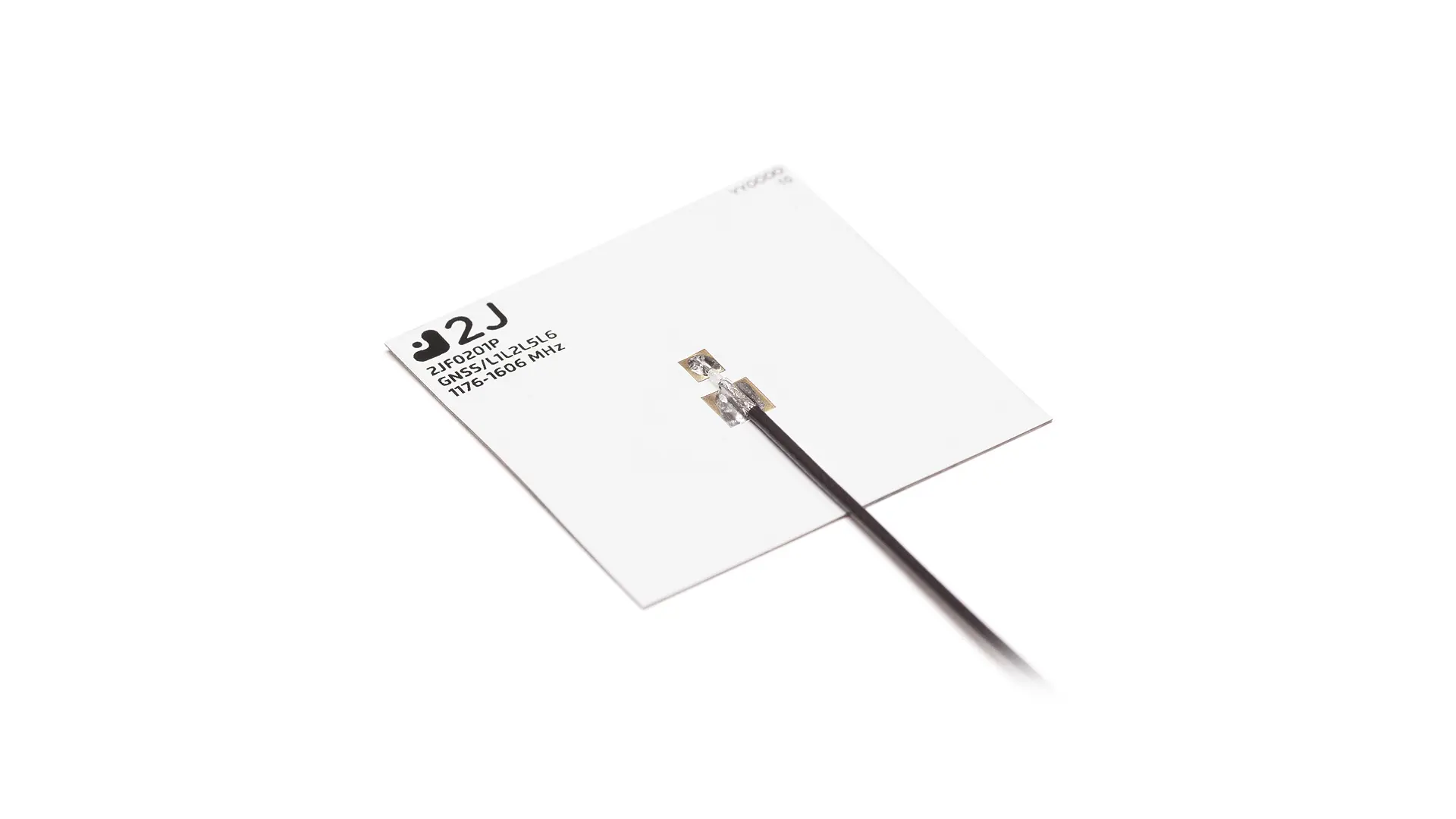

High Precision GPS/GNSS/L1/L2/L5/L6 Flexible Polymer Adhesive Antenna
Connections (1)
1×
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
| Mounting | Adhesive Mount Flexible |
|---|---|
| Dimensions (mm) | 45.4 × 45.4 × 0.2 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 / L6
| Technologies | GPS/Glonass/BeiDou/QZSS/Galileo/IRNSS/SBAS/L1L2L5L6 |
|---|---|
| Bandwidth (MHz) | 1176-1208, 1227-1246, 1268-1279, 1561-1606 |
| Bands | L5, L2, L6, L1 |
| Frequency | 1176.45, 1207.14 / 1227.6, 1246.00 / 1268.52, 1278.75 / 1561.09, 1575.42, 1602.00 |
| Standards | GPS(L5), BeiDou(B2a, B2b), QZSS(L5), Galileo(E5a), IRNSS(L5) / GPS(L2C), GLONASS(L2OF), QZSS(L2C) / GPS(L6), BeiDou(B3), QZSS(L6), Galileo(E6) / GPS(L1C), GLONAS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1) |
| Return Loss (dB) | ~-12.8, ~-16.6, ~-9.3, ~-21.8 |
| VSWR | ~1.6:1, ~1.4:1, ~2.1:1, ~1.2:1 |
| Efficiency (%) | ~75.0, ~76.2, ~74.2, ~79.9 |
| Passive Peak Gain (dBi) | ~3.2, ~3.1, ~2.9, ~4.9 |
| Average Gain (dB) | ~-1.3, ~-1.2, ~-1.3, ~-1.0 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarization | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Efficiency
Self-Adhesive
Customizable Cable and Connector
Flexi Internal Antenna
Passive GNSS Antenna
L1/L2/L5/L6 Multi-Band-Constellation
4.9 dBi GNSS Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
