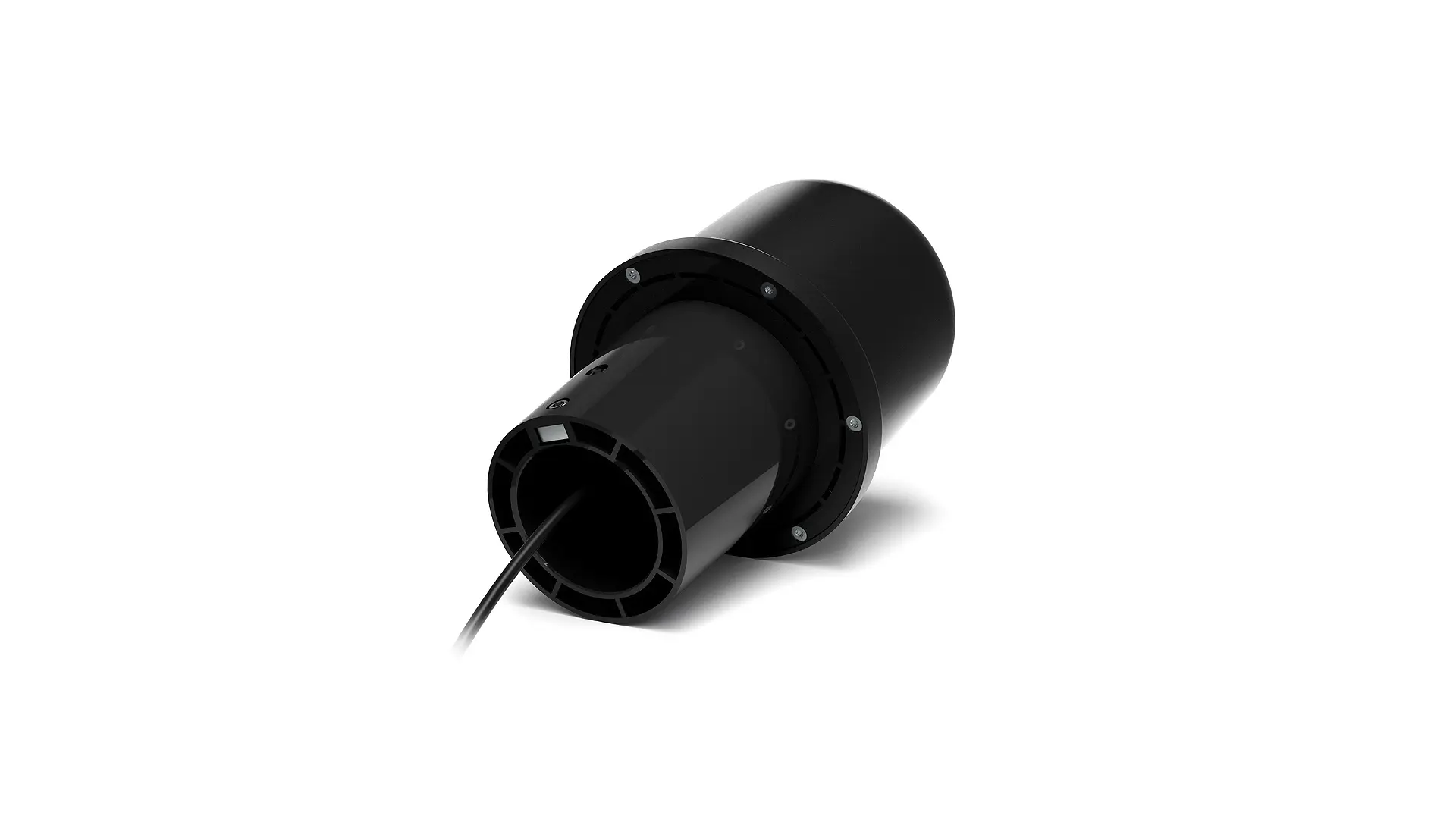

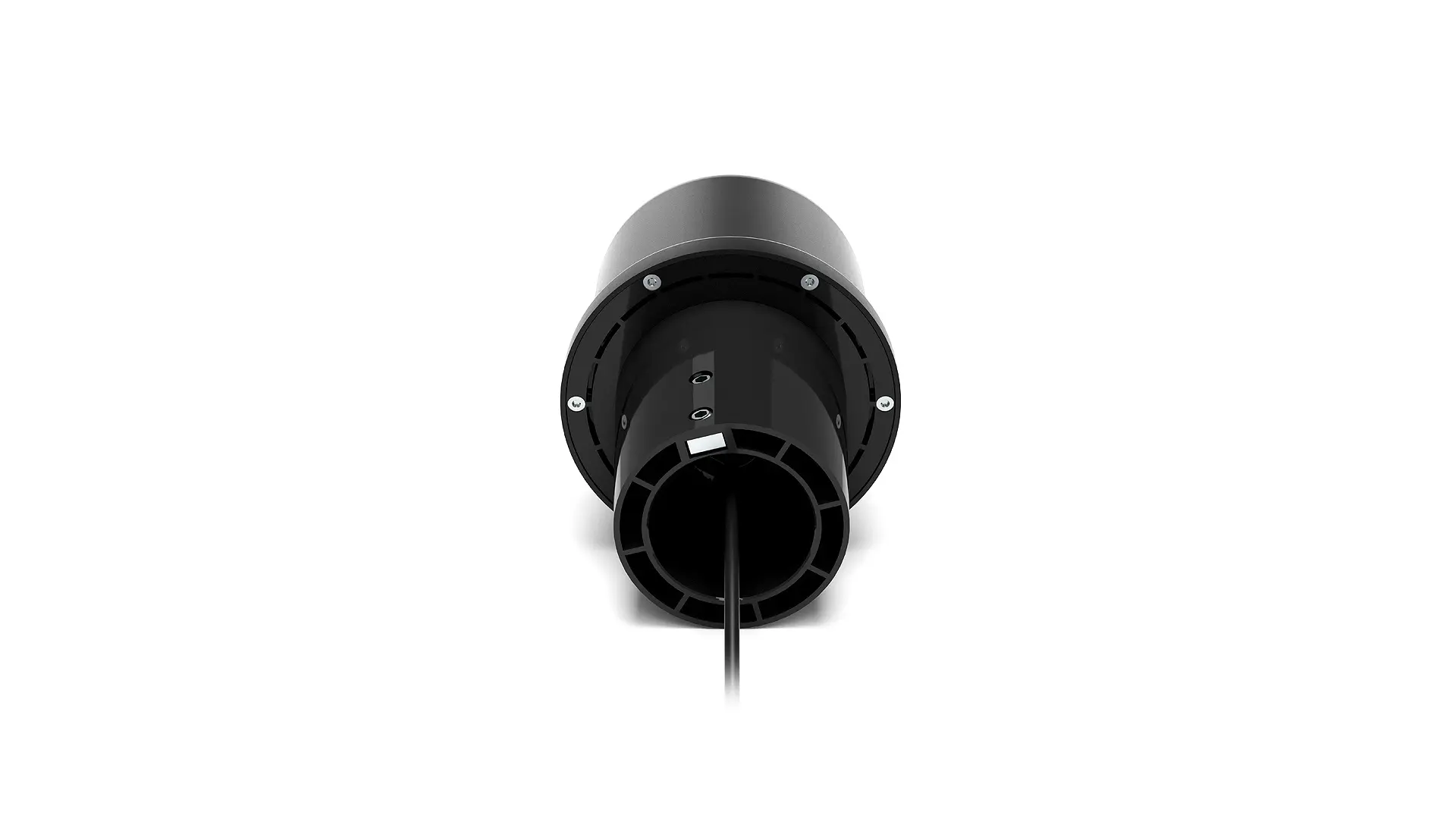

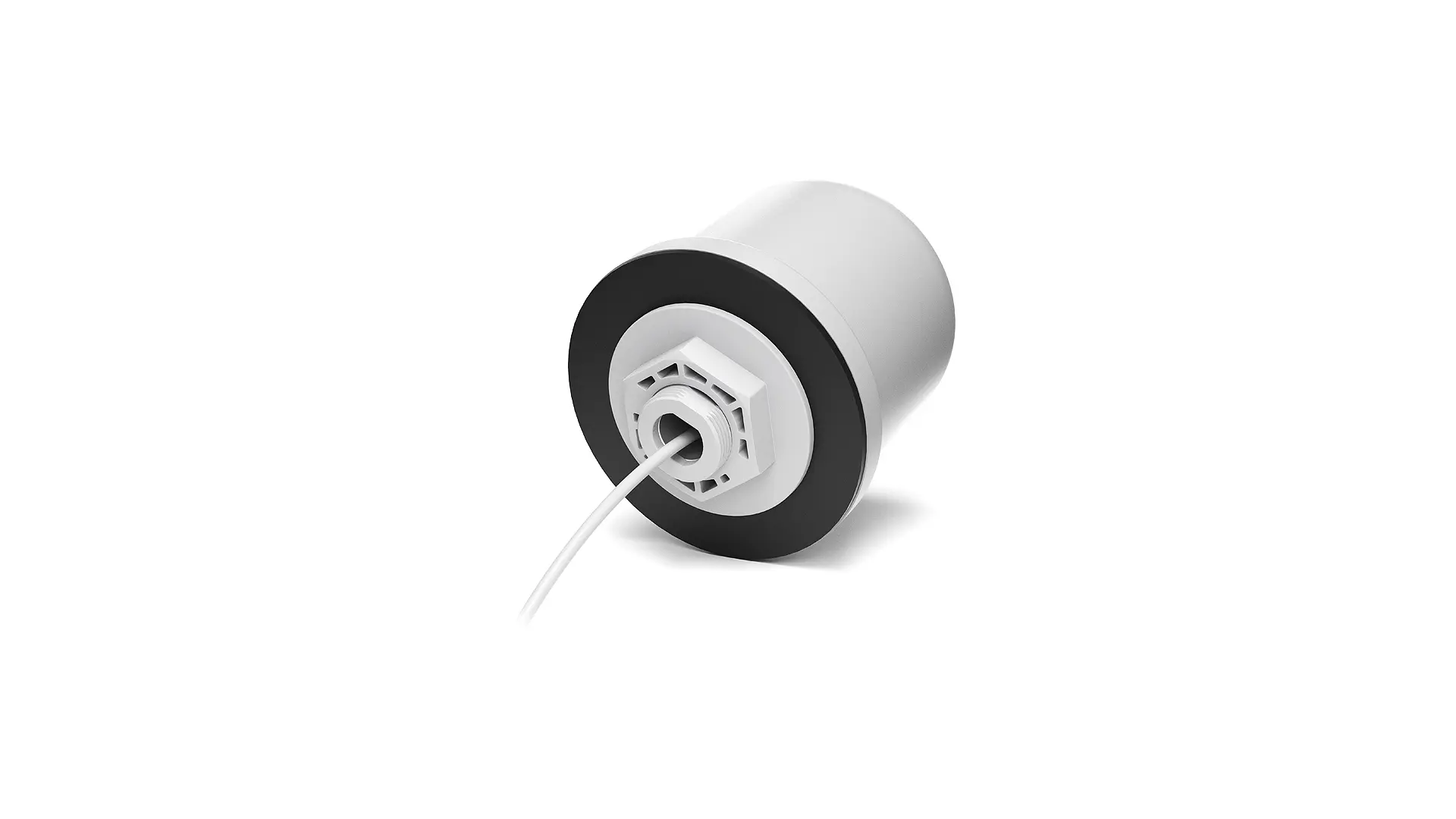

Medusa 5GNR/4G LTE/3G/2G Heavy-Duty Pole and Screw Mount Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Screw Mount, Pole Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 161 (Pole), Ø 96 × H 91 (Screw) |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-7.9, ~-13.3, ~-11.4, ~-12.9 |
| VSWR | ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1 |
| Efficiency (%) | ~44.1, ~56.3, ~44.0, ~42.4 |
| Peak Gain (dBi) | ~1.4, ~3.6, ~3.4, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 35 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
Adhesive Mounting sticker included
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Lightweight Plastic Base
Configurable Mount options
3.8 dBi 5G NR Peak Gain
Pole Mount plastic bracket included
Suitable for pole with max Ø43 mm
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Broadcasting & Media
Consumer & Entertainment
Antenna band list
| Parameters | 5GNR Antenna | |||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 |
| Band (MHz) | 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800 |
| 5GNR Bands | n5, n8 ,12, n20, n28, n71, n81, n82, n83, |
n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86 |
n77, n78, n79 | |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 |
B22, B42, B43, B48, B49, B52 |
B46, B47, B252, B255 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 | |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | ||
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
||
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB18J
Pole Mount aluminum alloy bracket for 2J6Bxx, 2J70xx, 2J71xx, 2J7Axx and 2J7Bxx pole mount antenna series
