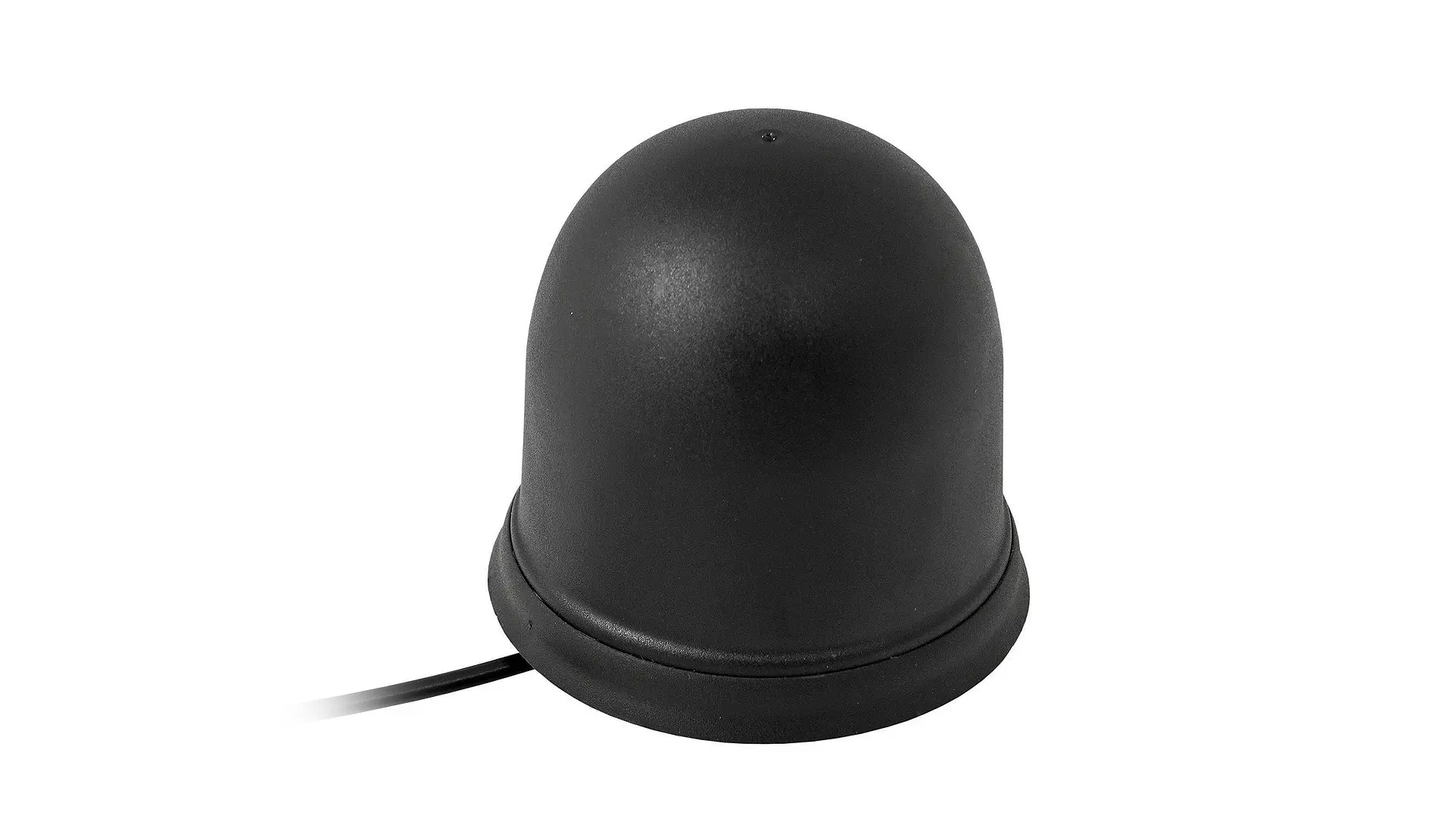

2J6A15B-915
915 MHz ISM Anti-Rotation Customizable Antenna

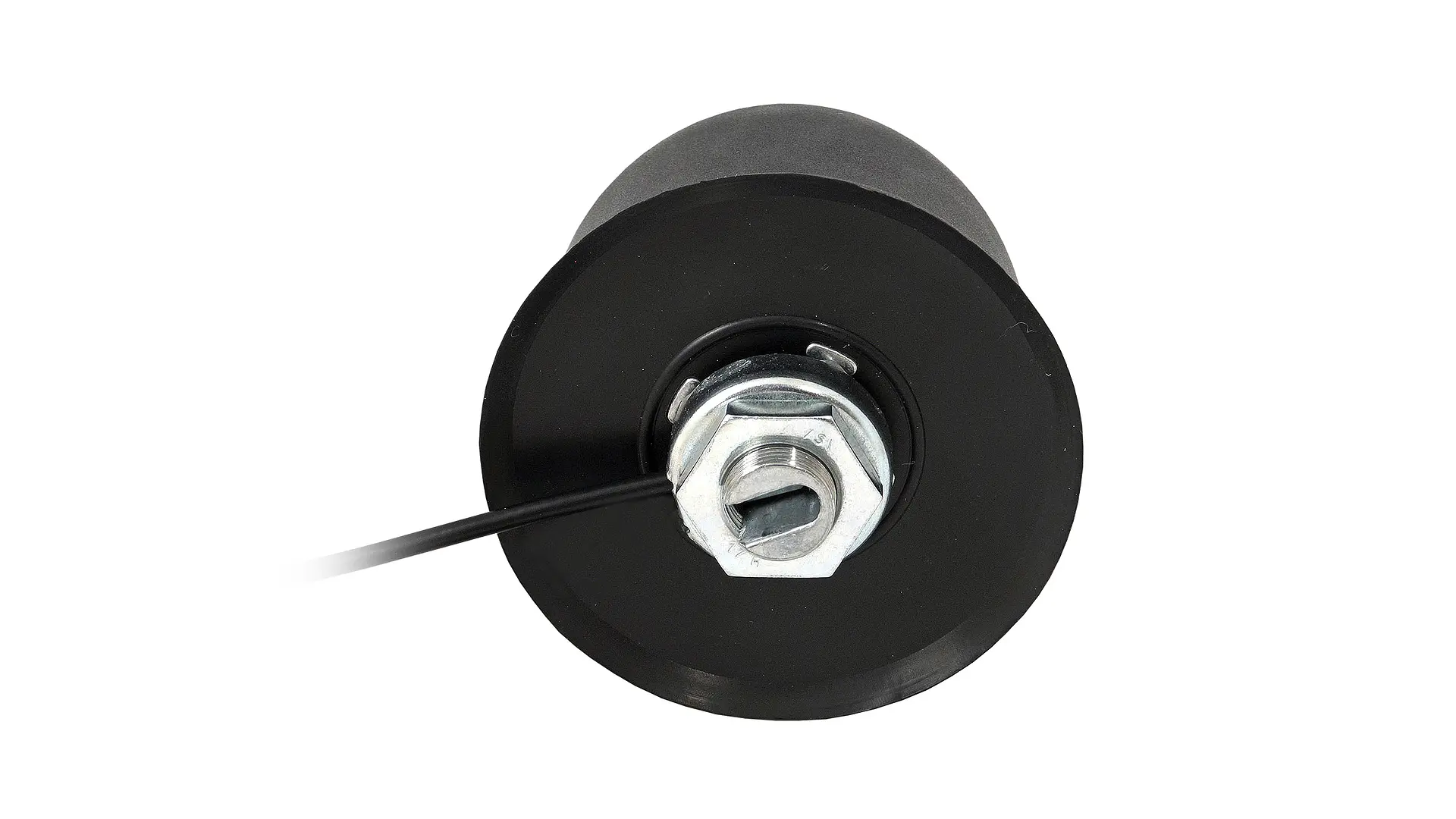

| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 77.3 × 65.5 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69K , IK09 |
| Standard colors |
Black
White
|
Antenna and electrical specifications
915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 902-928 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~66.8 |
| Peak Gain (dBi) | ~4.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB03H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J47xx, 2J6Axx, 2J60xx, 2J65xx, 2J66xx, 2J67xx, 2J72xx, 2J74xx, 2J75xx, 2J76xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03Ha
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03J
Pole Mount metal bracket for Screw Mount Antenna versions of 2J47xx, 2J6Axx, 2J60xx, 2J65xx, 2J66xx, 2J67xx, 2J72xx, 2J74xx, 2J75xx, 2J76xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03Ja
Pole Mount metal bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
