2JP2115P

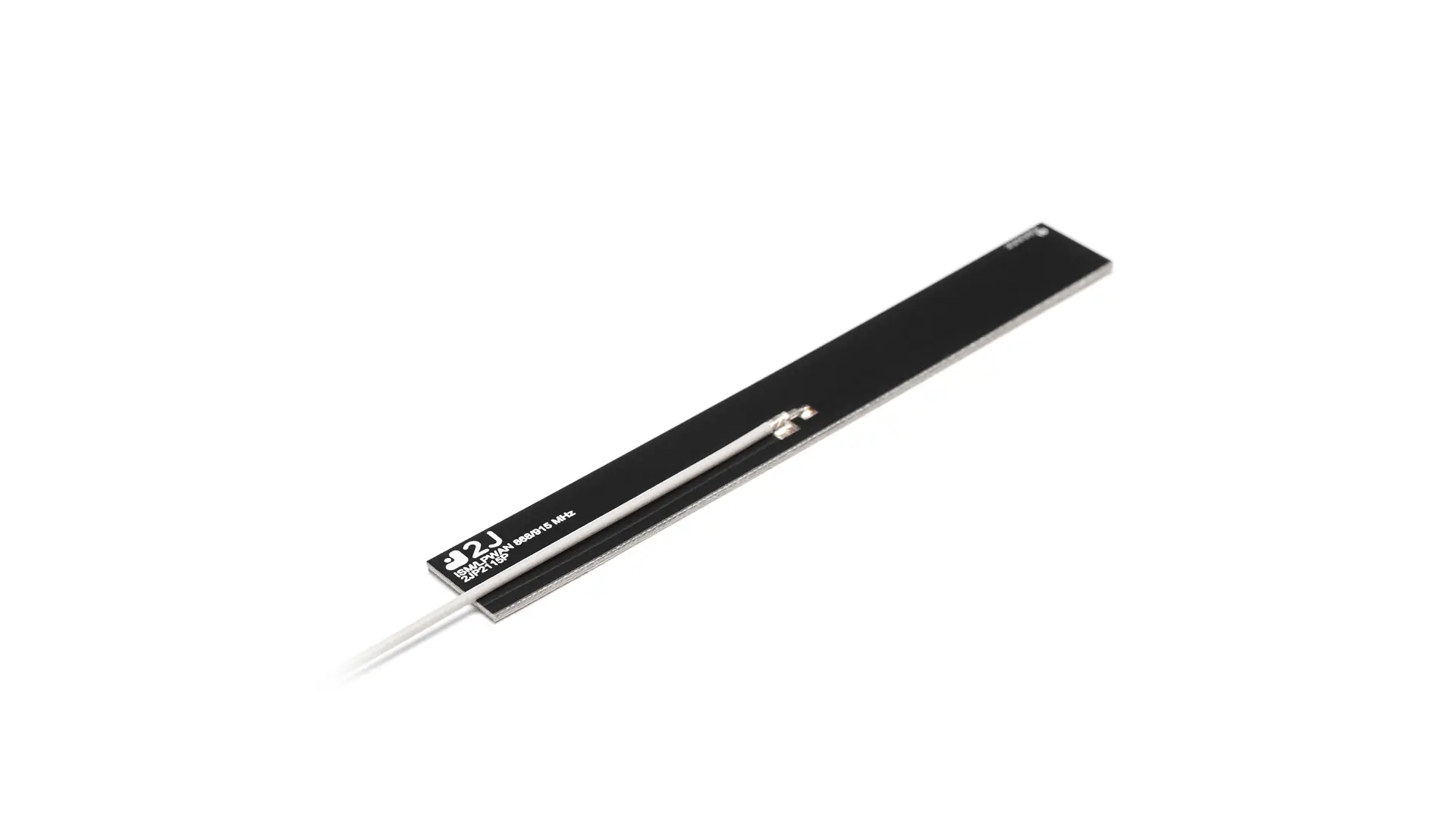

868/915 MHz ISM Rigid Fiberglass Adhesive Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Adhesive Mount Rigid |
|---|---|
| Dimensions (mm) | 95.5 × 14 × 0.8 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~1.9:1, ~2.4:1 |
| Efficiency (%) | ~90.3, ~84.4 |
| Peak Gain (dBi) | ~4.0, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Efficiency
Rigid Internal Antenna
Self-Adhesive
Customizable Cable and Connector
Dual Band 868/915 MHz ISM Antenna
4.0 dBi 868/915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
