Selecting the appropriate antenna is a critical step of any connected device - Talk to Antenna Experts
2J3915M-915

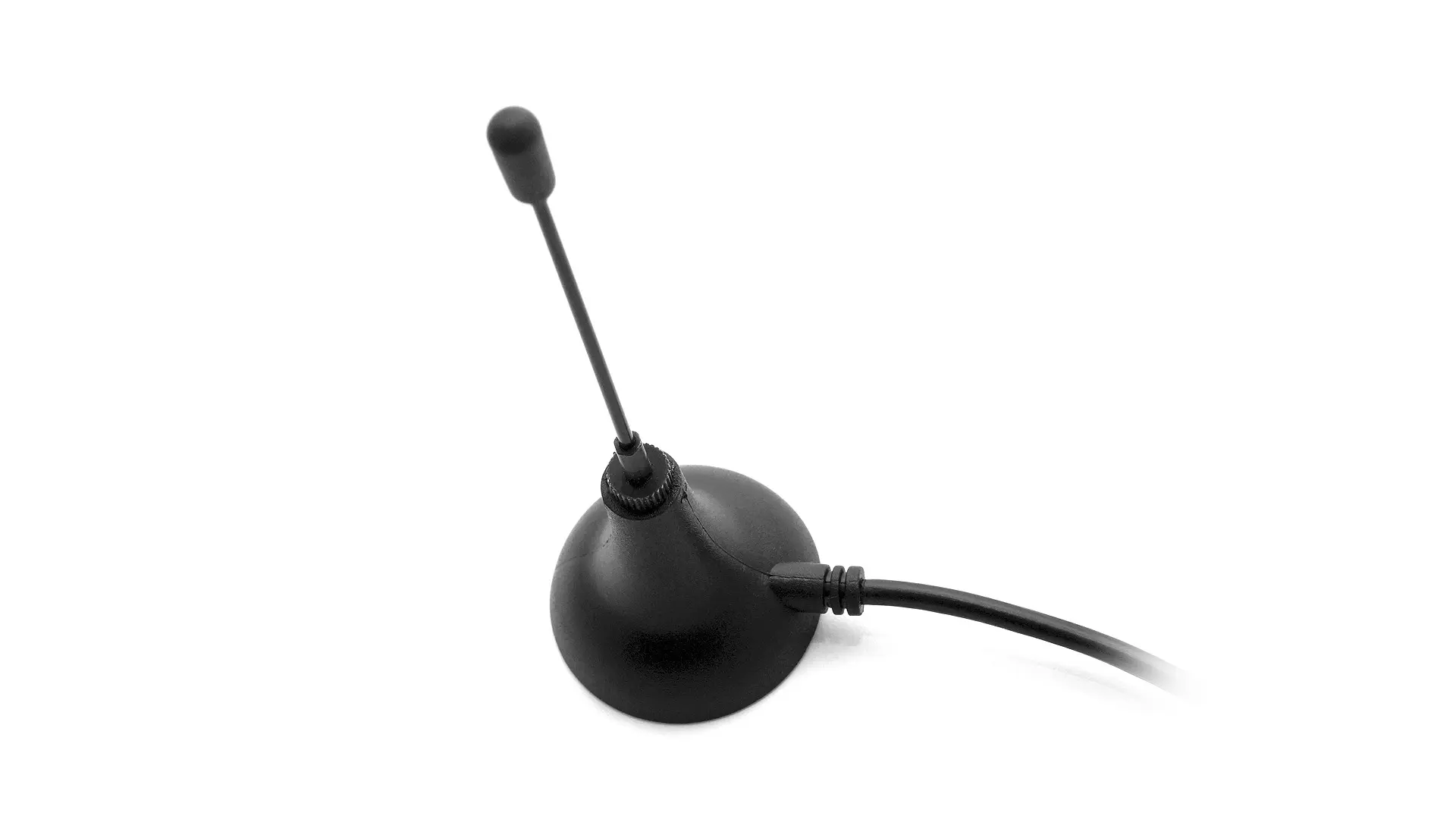

915 MHz ISM High Gain Customizable Antenna
Connections (1)
1×
915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 30.9 × 88 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 902-928 |
| VSWR | ~1.5:1 |
| Efficiency (%) | ~64.6 |
| Peak Gain (dBi) | ~3.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Dependent
High Performance
Customizable Cable and Connector
High Gain
3.0 dBi 915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
