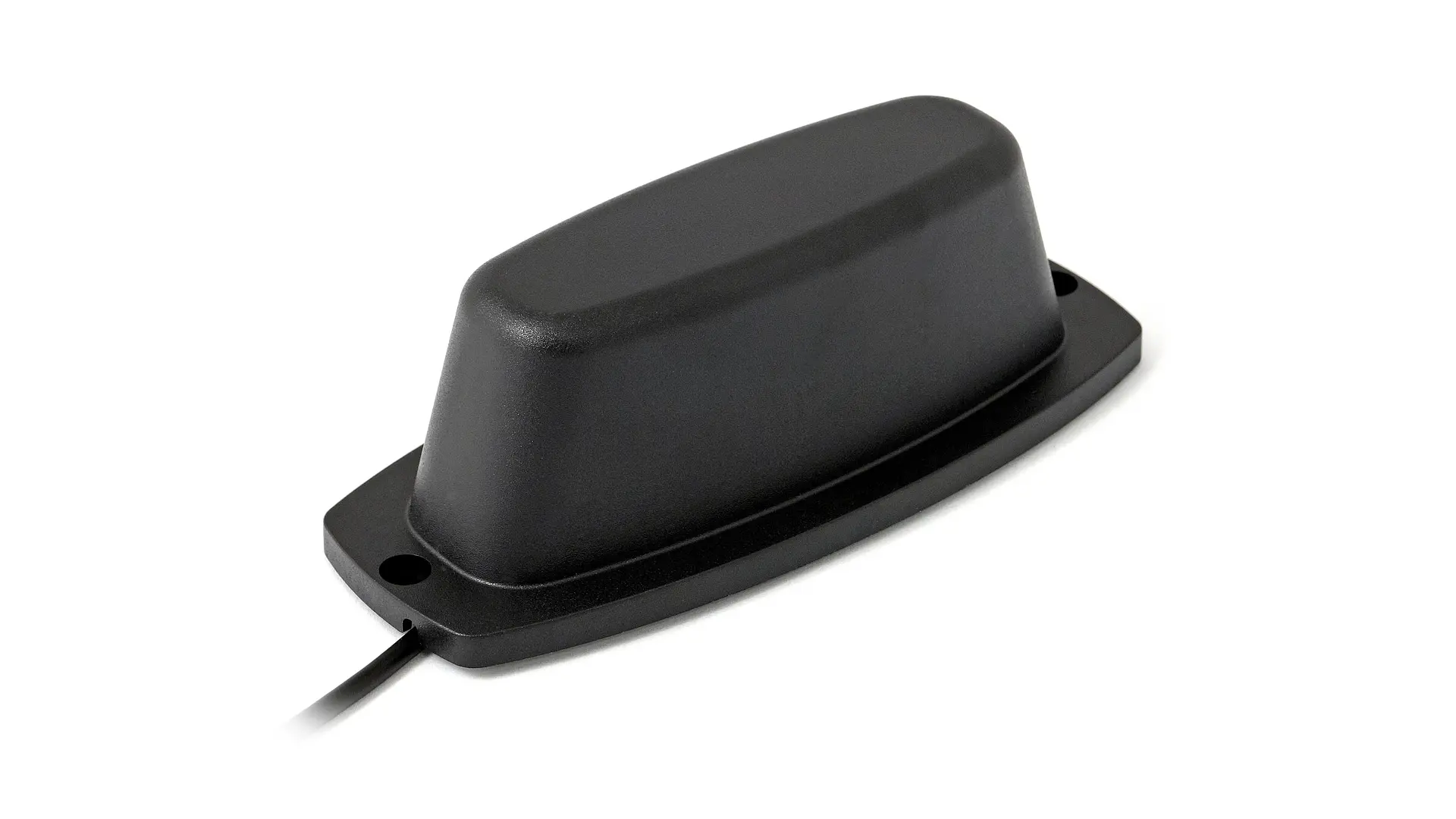

2J6815MP-868
868 MHz ISM High Performance Customizable Antenna
Connections (1)
1×
868 MHz ISM / Sigfox / LoRa / LPWA

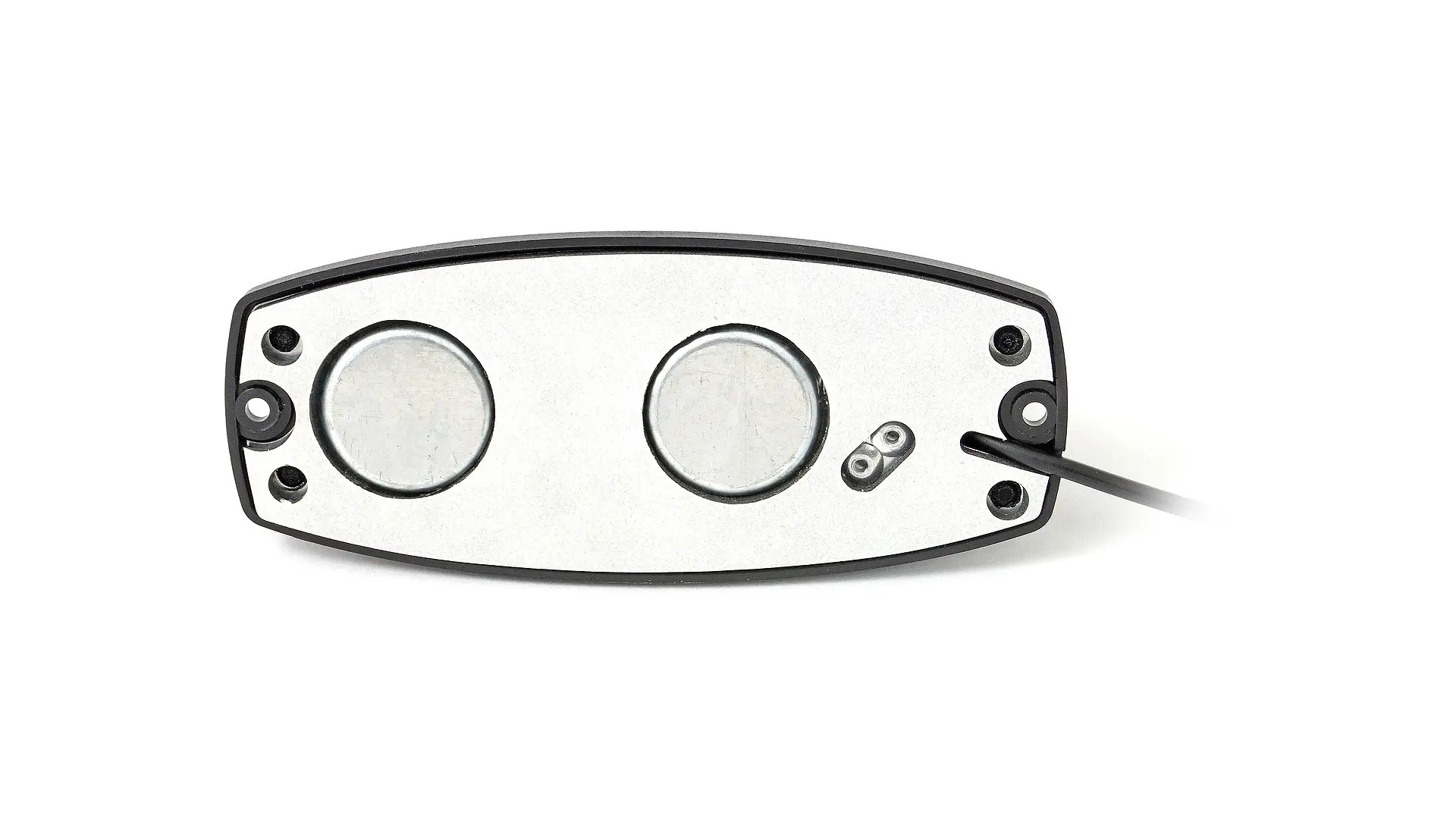

| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 117 × 49.5 × 38 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
868 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa, RFID |
|---|---|
| Frequency | 863-870 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~70.3 |
| Peak Gain (dBi) | ~3.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Dependent
High Performance
Customizable Cable and Connector
Adhesive Mounting sticker included
3.1 dBi 868 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
