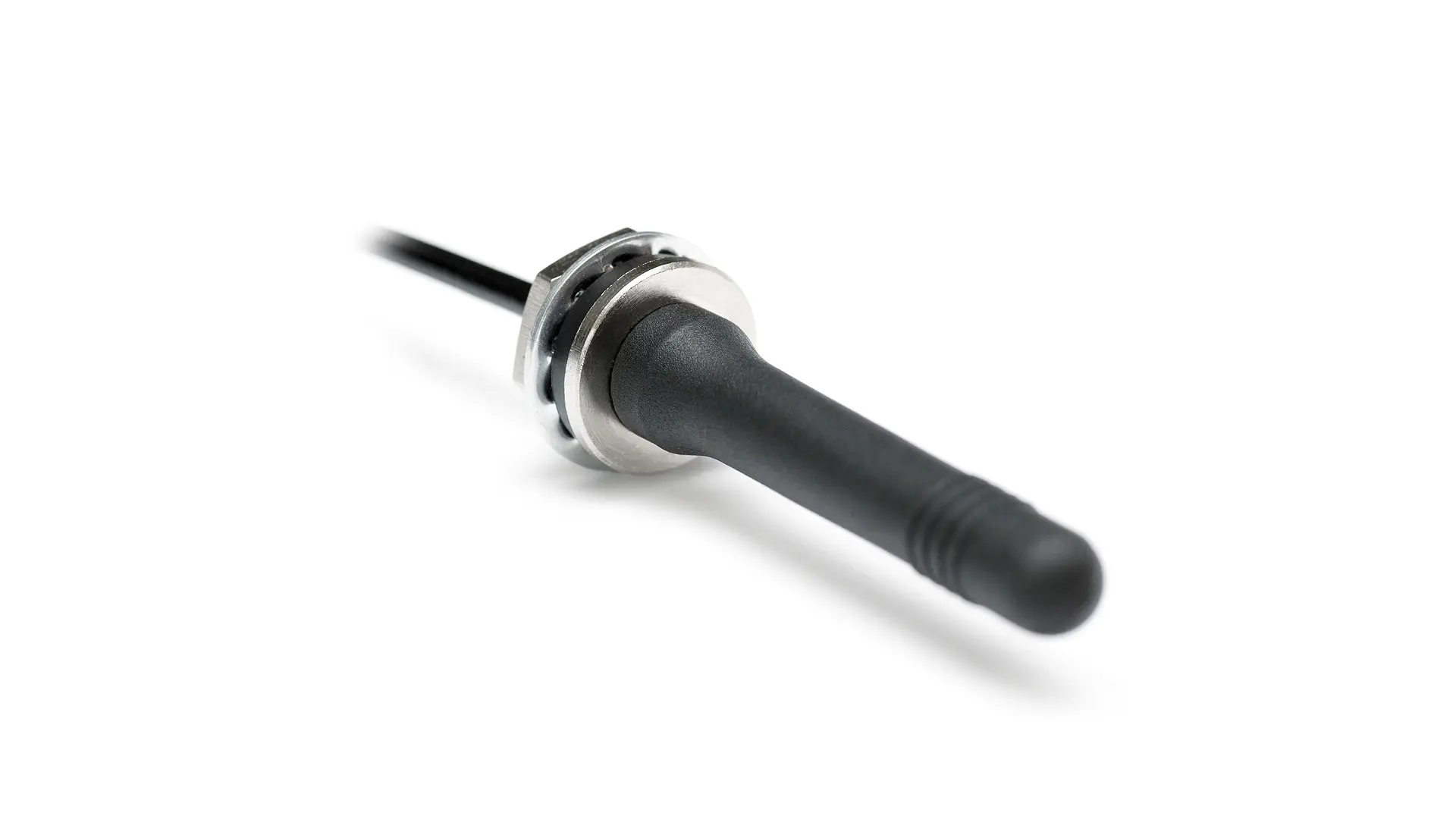

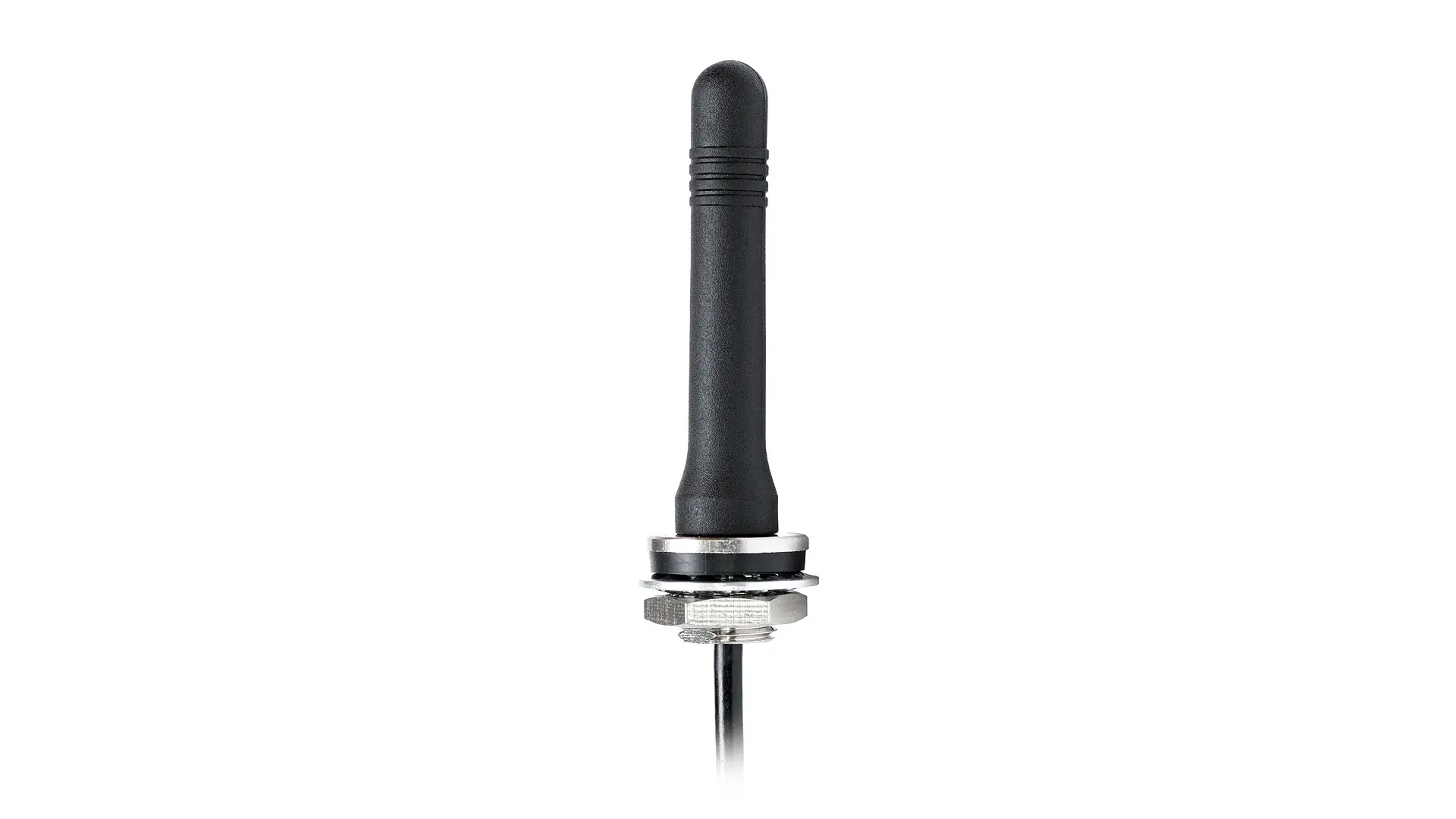

2J1015B-915
915 MHz ISM Ground Plane Dependent Antenna
Connections (1)
1×
915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 50 × Ø16 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 902-928 |
| VSWR | ~1.9:1 |
| Efficiency (%) | ~38.7 |
| Peak Gain (dBi) | ~-0.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Monopole Antenna
Small Form Factor
Ground Plane Dependent
Customizable Cable and Connector
-0.2 dBi 915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
