2J5290P

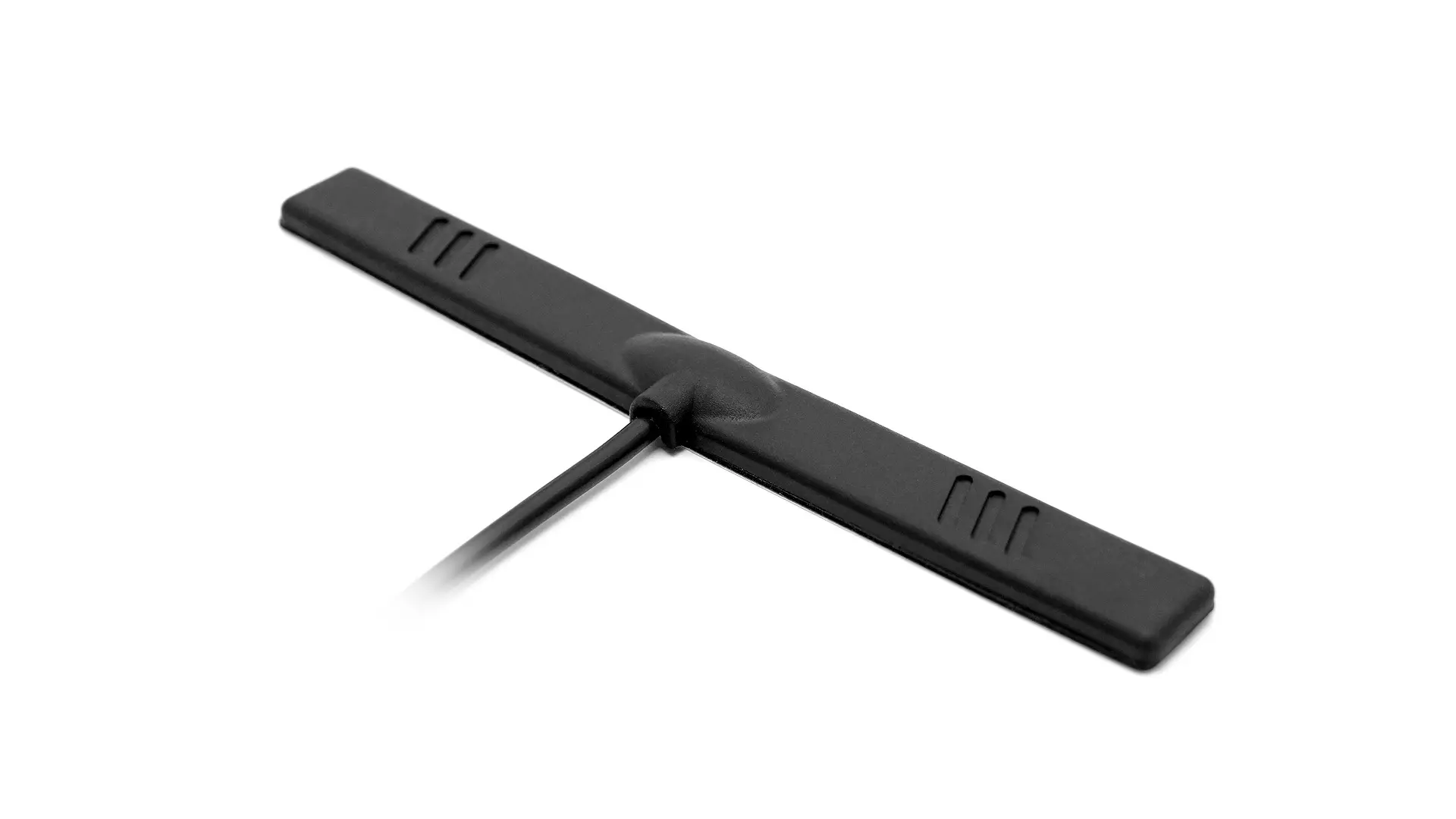

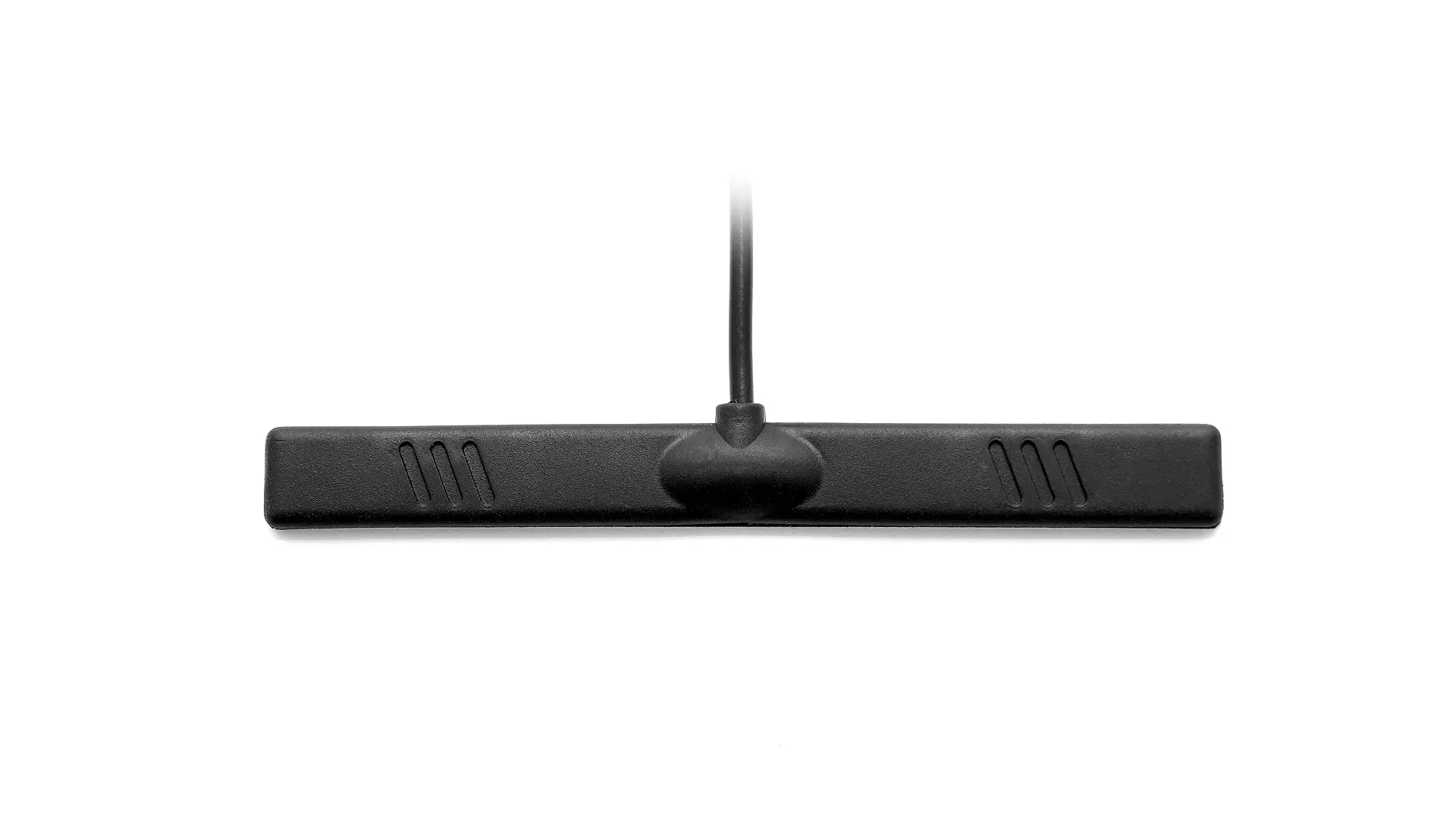

T-Bar Cellular LTE Band 450 Low-Profile Adhesive Mount Antenna
Connections (1)
1×
LTE 450
| Mounting | Adhesive Mount |
|---|---|
| Dimensions (mm) | 117.4 × 12.5 × 6.5 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
LTE 450
| Standards | LTE Band 450 |
|---|---|
| Frequency | 410-496 |
| VSWR | ~3.3:1 |
| Efficiency (%) | ~37.3 |
| Peak Gain (dBi) | ~-1.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Low Profile
Flexible Housing
LTE 450 Antenna
-1.3 dBi 4G LTE Peak Gain
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Energy & Utilities
Broadcasting & Media
Consumer & Entertainment
