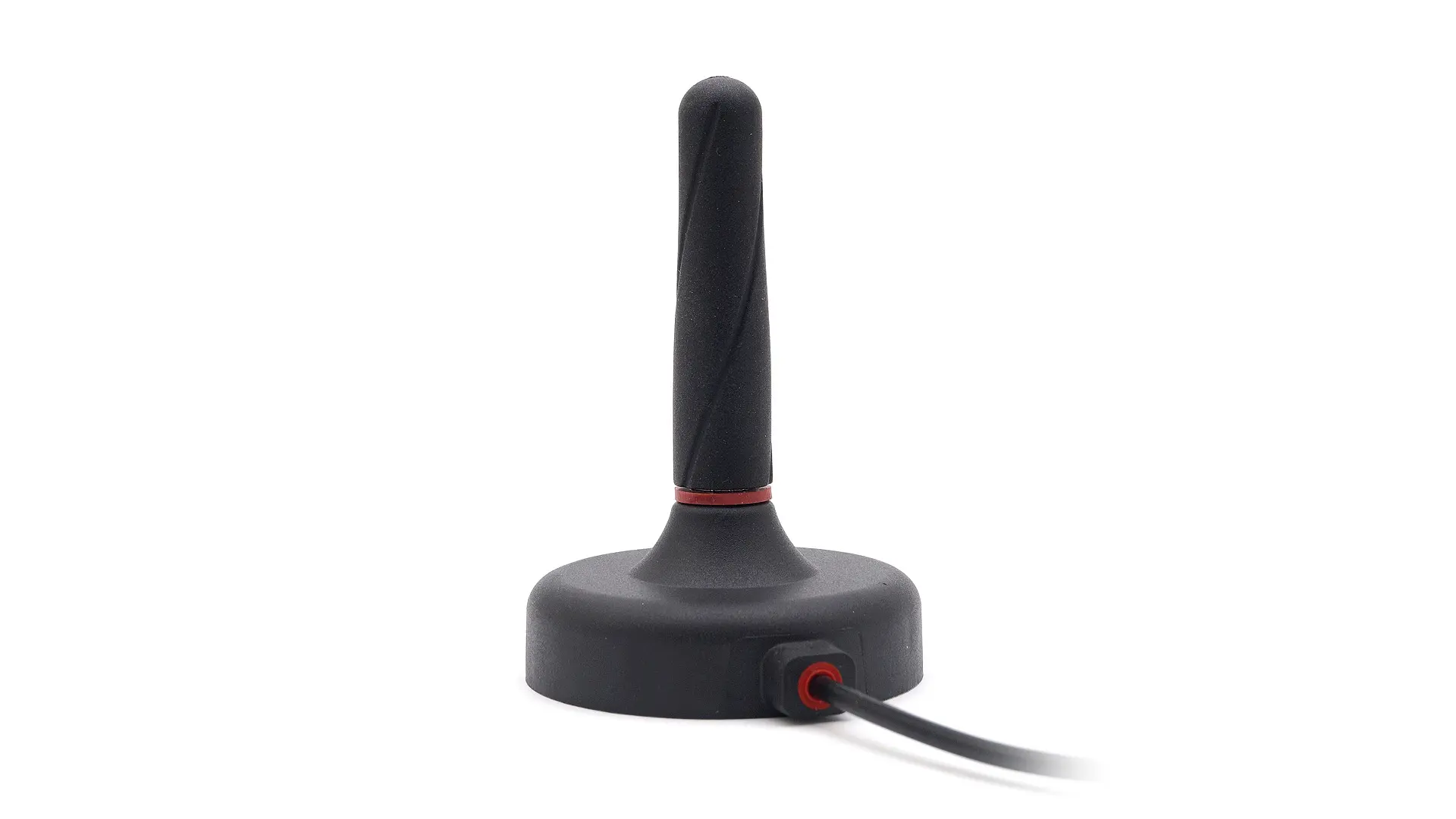

2J7515M-915
915 MHz ISM High Performance IP67 IP69 Waterproof Customizable Antenna
Connections (1)
1×
915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 54 × 80 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa, RFID |
|---|---|
| Frequency | 902-928 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~66 |
| Peak Gain (dBi) | ~2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Dependent
High Performance
High Efficiency
Customizable Cable and Connector
2.3 dBi 915 MHz ISM Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
