2J6590B-M18-SP

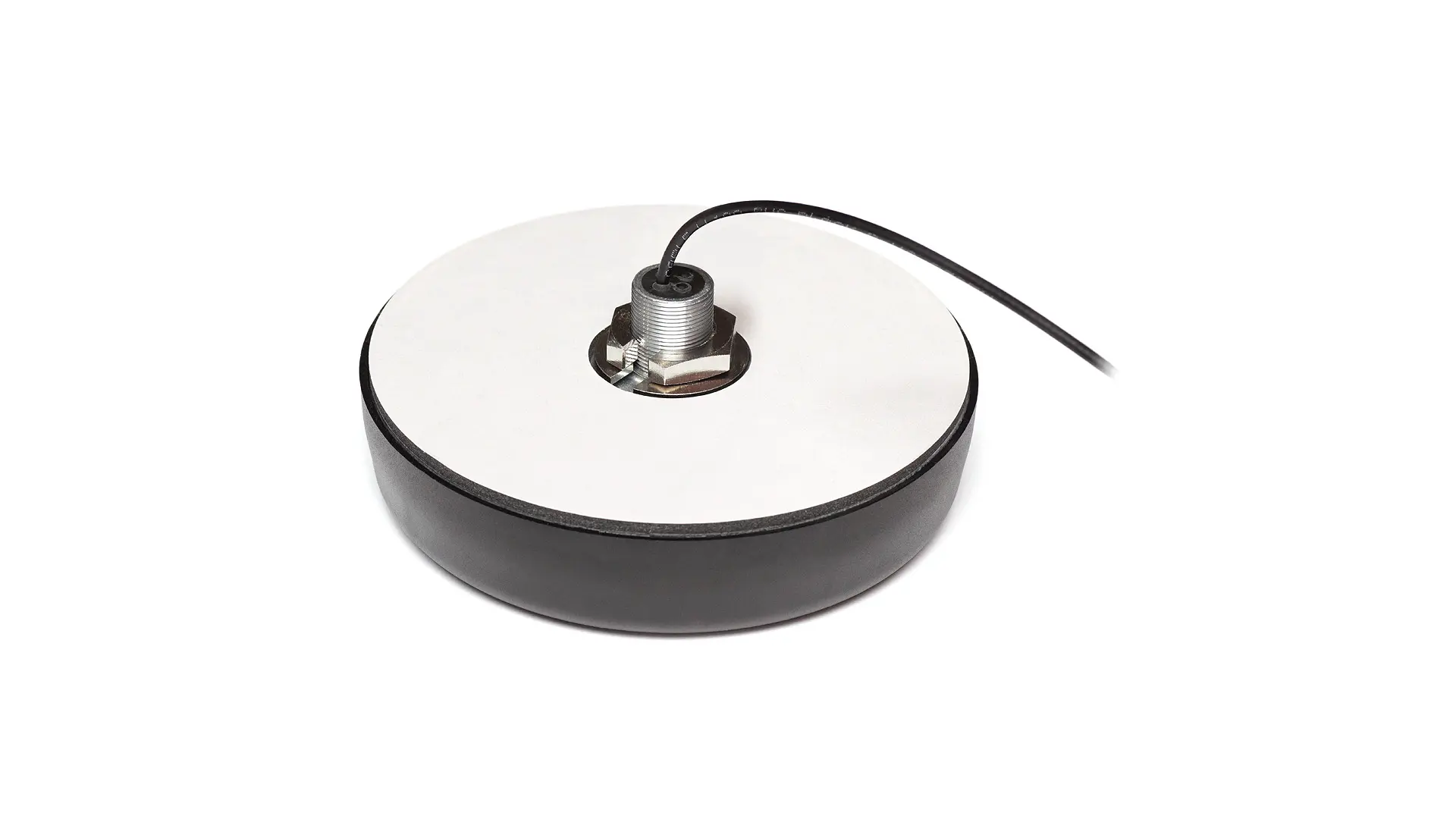

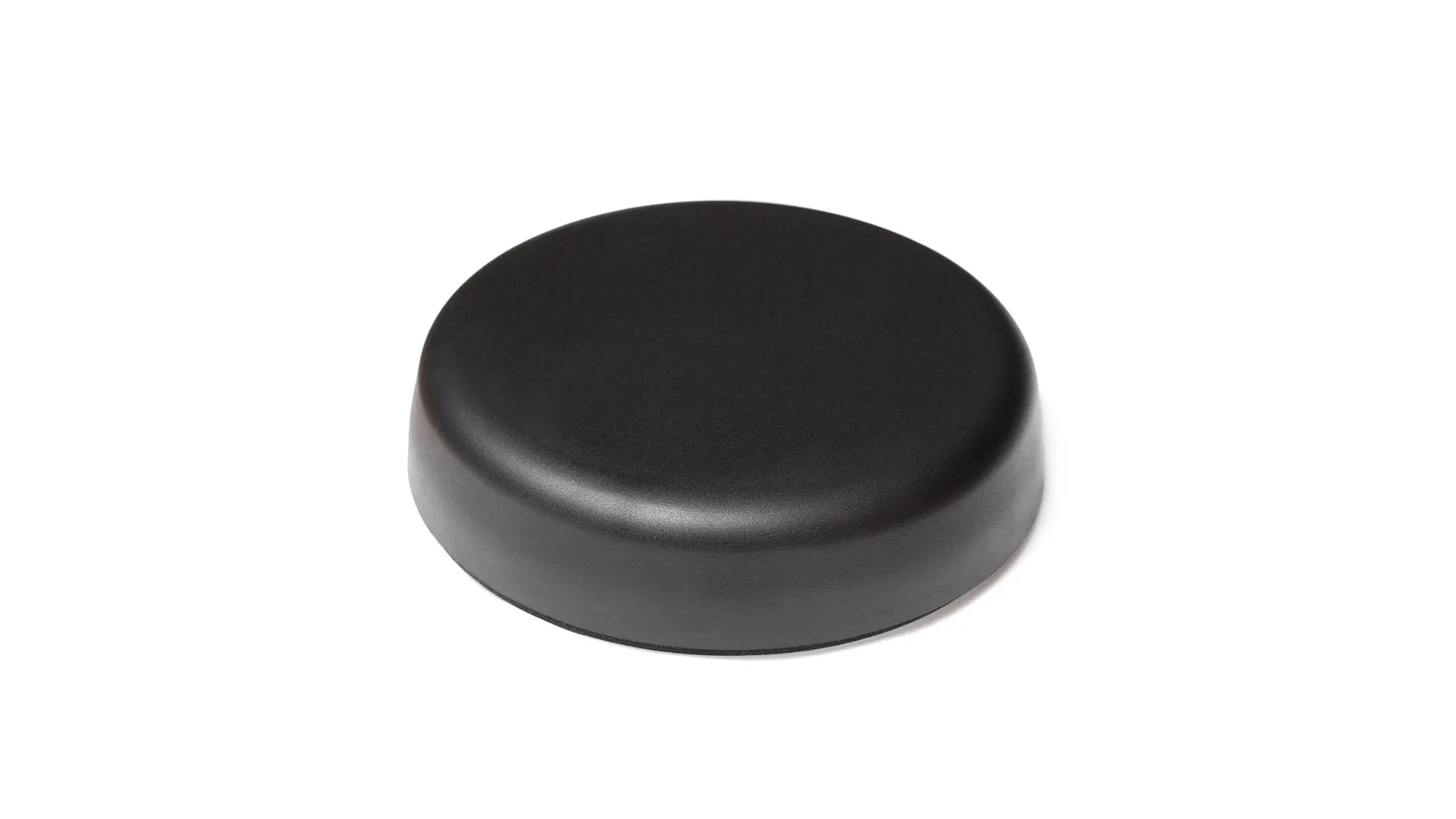

Discus LTE Band 450 Low-Profile IK09 IP67 IP69K Screw Mount Antenna
Connections (1)
1×
LTE 450
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 136 × 31.5 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
LTE 450
| Standards | LTE Band 450 |
|---|---|
| Frequency | 410-496 |
| VSWR | ~5.3:1 |
| Efficiency (%) | ~41.0 |
| Peak Gain (dBi) | ~-1.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
LTE 450 Antenna
-1.5 dBi 4G LTE Peak Gain
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Energy & Utilities
Broadcasting & Media
Consumer & Entertainment
Antenna band list
Compatible mounting brackets
2JB03Ha
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03Ja
Pole Mount metal bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
