Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-15.5, ~-12.1, ~-12.3, ~-13.0
VSWR ~1.5:1, ~1.8:1, ~1.9:1, ~1.7:1
Efficiency (%) ~35.3, ~27.1, ~23.6, ~22.3
Peak Gain (dBi) ~3.1, ~2.7, ~0.9, ~-0.4
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-16.8, ~-12.8, ~-13.4, ~-13.1
VSWR ~1.4:1, ~1.7:1, ~1.7:1, ~1.7:1
Efficiency (%) ~34.1, ~27.3, ~20.0, ~22.0
Peak Gain (dBi) ~3.2, ~2.9, ~1.2, ~0.4
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 3

2.4/5.0/6.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.0:1, ~1.3:1, ~1.3:1
Efficiency (%) ~24.7, ~27.4, ~25.4
Peak Gain (dBi) ~-0.2, ~1.7, ~1.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Out of Band Rejection (dB) ~43
ESD Protection (kV) 6

Key Features

4-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
3.2 dBi 5G NR Peak Gain
1.7 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

2J6986BGFc

The Worlds’ Most Powerful Ultra-Wideband Combination Antenna With Cutting Edge WiFi 6E Technology

2J Antennas is expanding their “Phoenix” series by adding the high-performance 4-in-1 combination antenna (2J6986BGFc) for Cellular/LTE MIMO, 2.4/5.0/6.0 GHz ISM and GPS/GLONASS global navigation. This powerful and cost-effective antenna is the ideal solution for industrial, commercial, and residential applications that operate on 617 MHz – 7125 MHz/ sub 6 GHz bands and where high performance, reliability, high data throughput and precision is high priority.

2x Cellular/ LTE Cables (1 & 2):

Tuned for high data throughput devices that operate within 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X/-MX/-NBx, NB-IoT, 3G and 2G standards. The 5GNR and the CAT connection is backwards compatible with existing 4G, 3G, 2G and other LTE networks. The benefits of dual MIMO cellular capabilities are that the antenna can search and pair the strongest signal to assure continuous connectivity.

2.4/5.0/6.0 GHz ISM Cable (3):

Designed for LPWA devices that operate within WiFi, SigFox, LoRa, BT, ZigBee, RFID and ISM standards. The 6.0 GHz band is exclusive to WiFi 6E devices offering very large capacity without competing with traffic from other devices or networks resulting in high bandwidth channels, improved security, less interference, and network congestion. This antenna is ideal for low power home automation and monitoring applications that demand faster WiFi, efficient device battery consumption and consistent network availability.

GNSS Cable (4):

This connection is for highly accurate navigation services for devices that operate within the GPS, GLONASS, QZSS, Galileo and L1 satellite networks. This powerful antenna services devices in the 1575 MHz to 1606 MHz spectrum with precision and reliability. Designed with a pre-filter allows an out of band rejection of ~43 dB while maintaining a consistent active gain of 28 dB @ 2.7 V.



Typical applications


- Automotive/ Transportation Navigation
- Autonomous Vehicles
- Emergency Response and Public Safety
- Multi-Media and Real-Time Video Streaming
- Automotive tracking and telematics
- Internet of Things (IoT)
- RFID / Asset Tracking
- Automation (home/office/industrial)
- Consumer Electronics Terminal
- High Traffic MIMO Device Connectivity




Installation

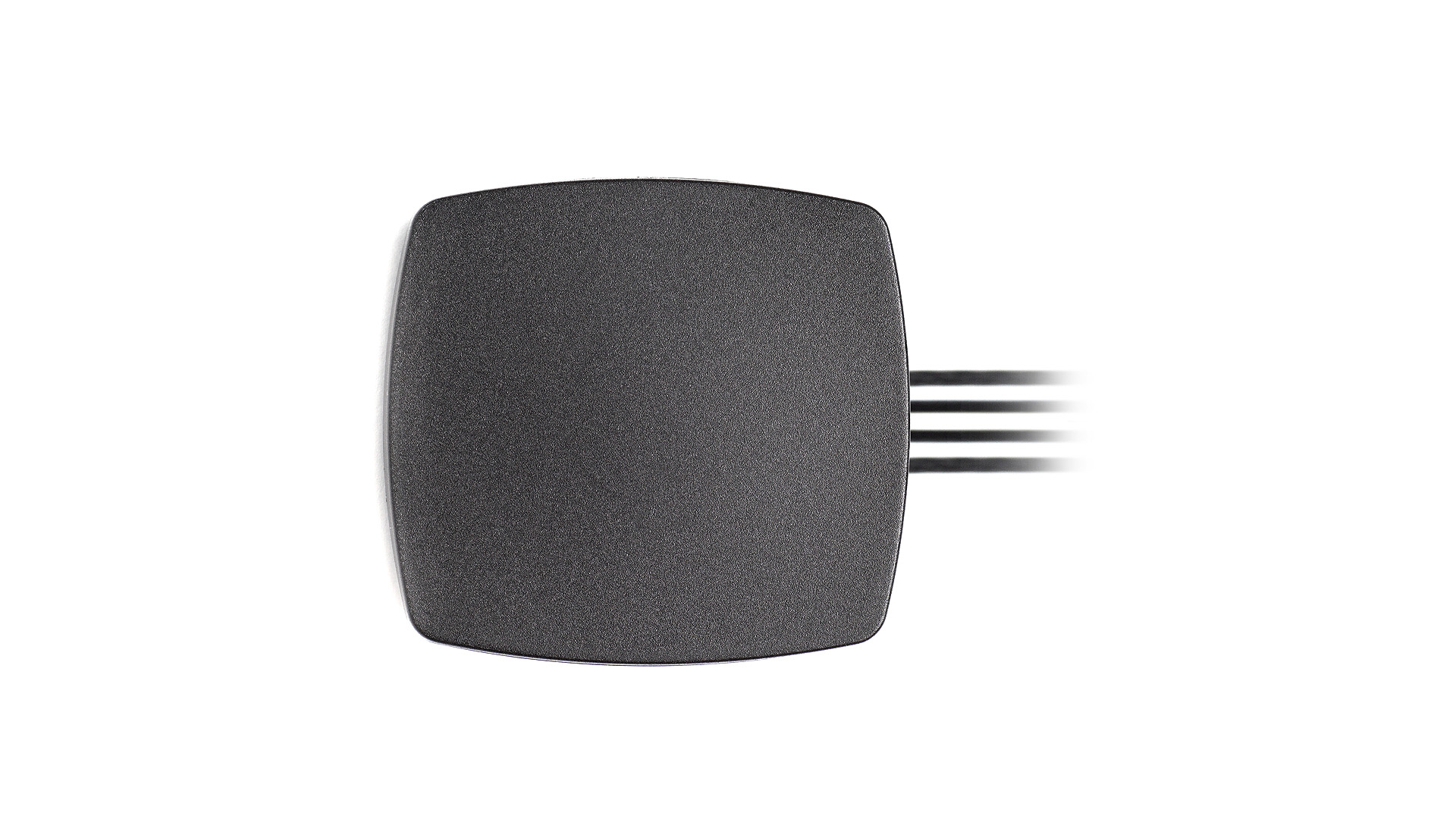

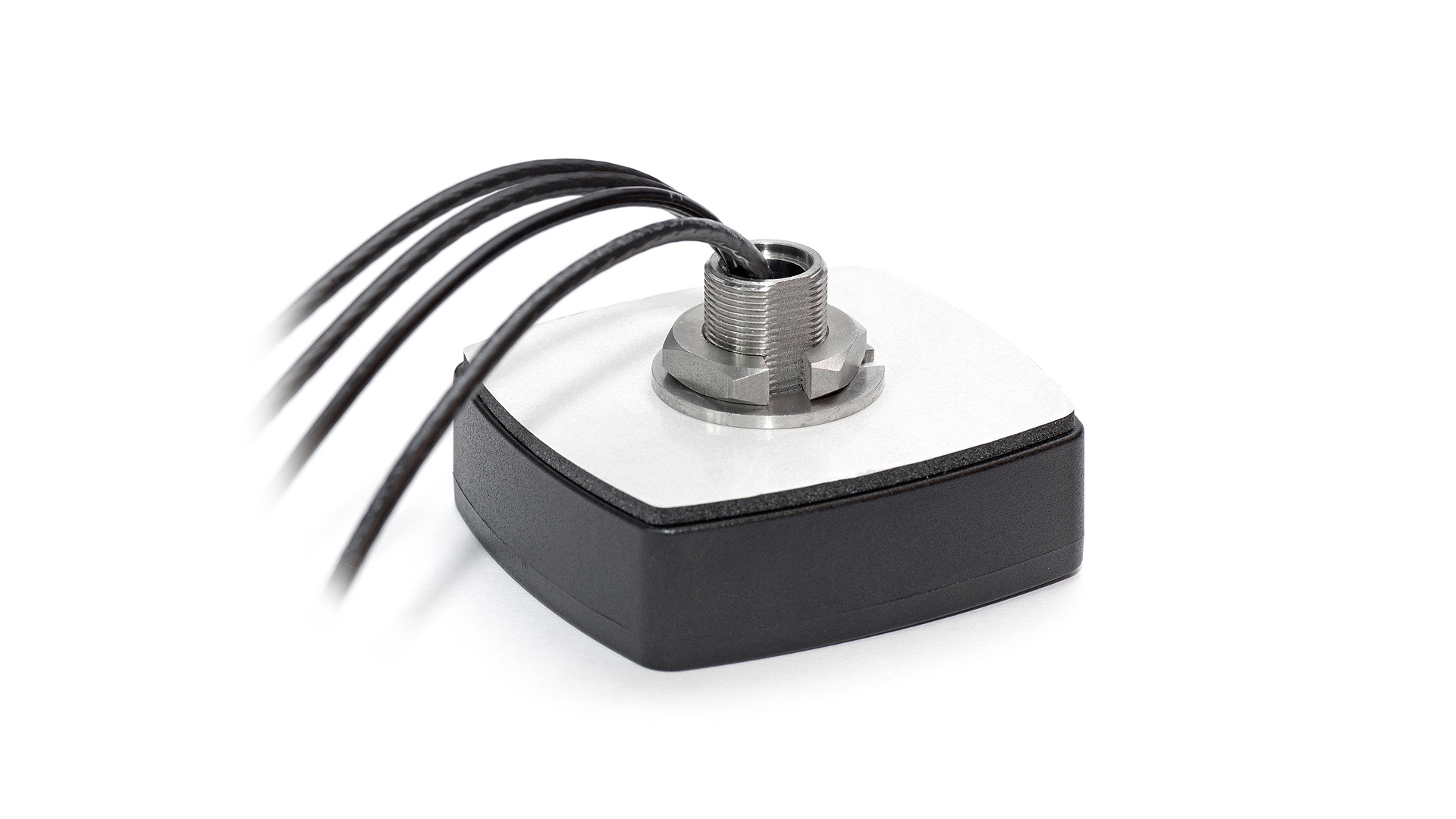

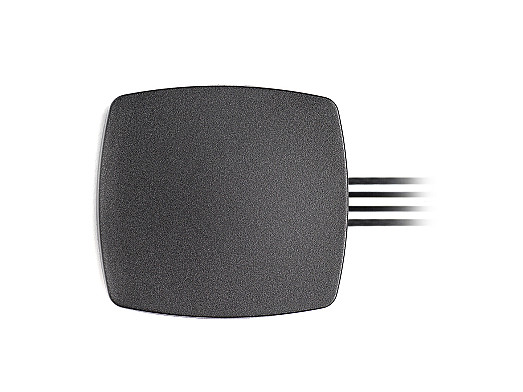

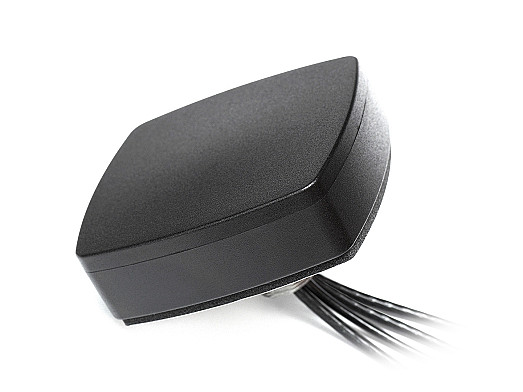

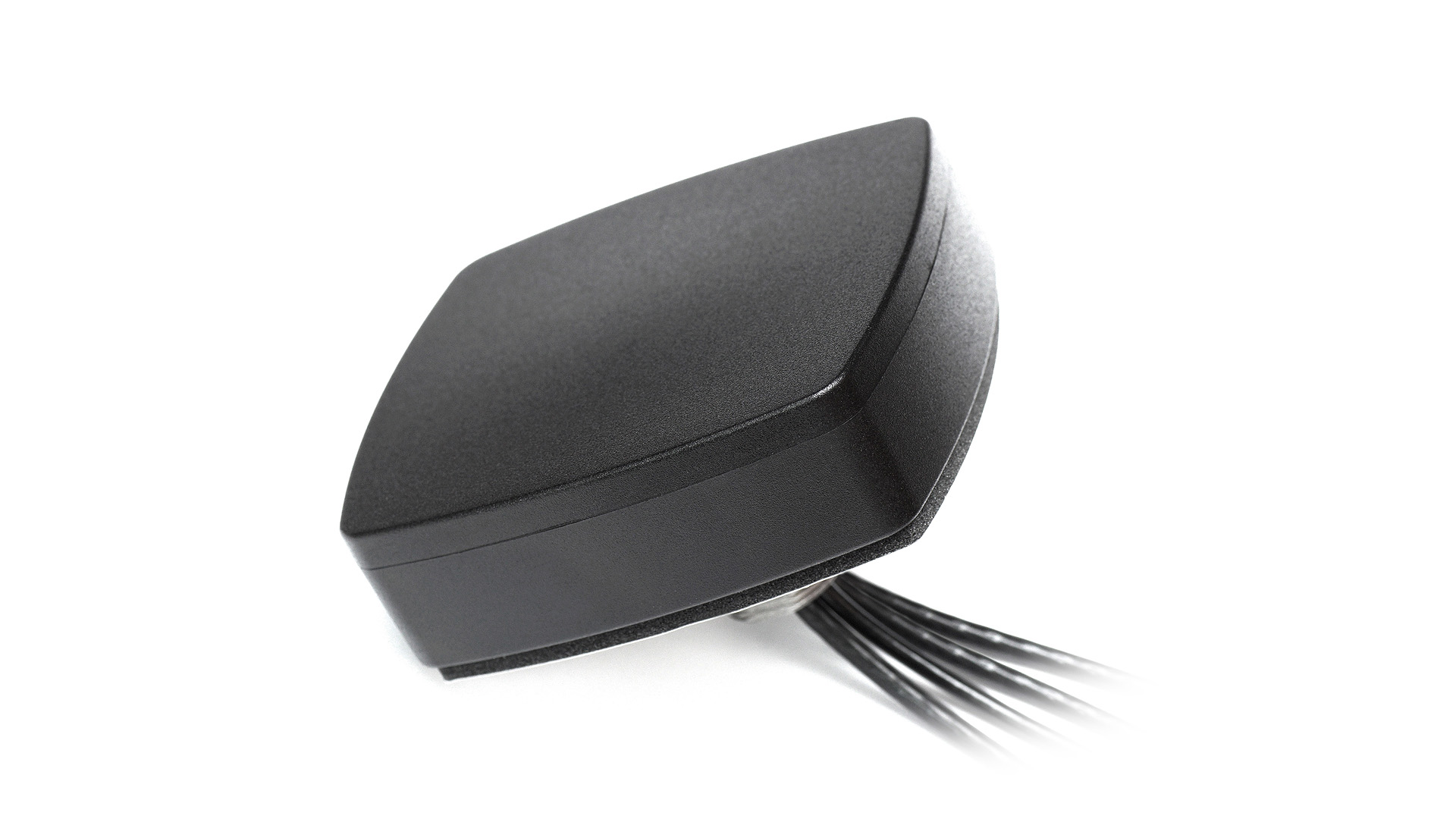

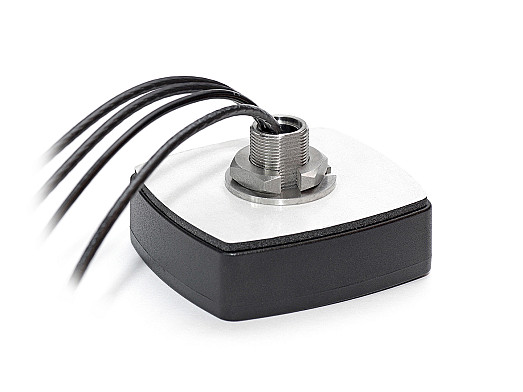

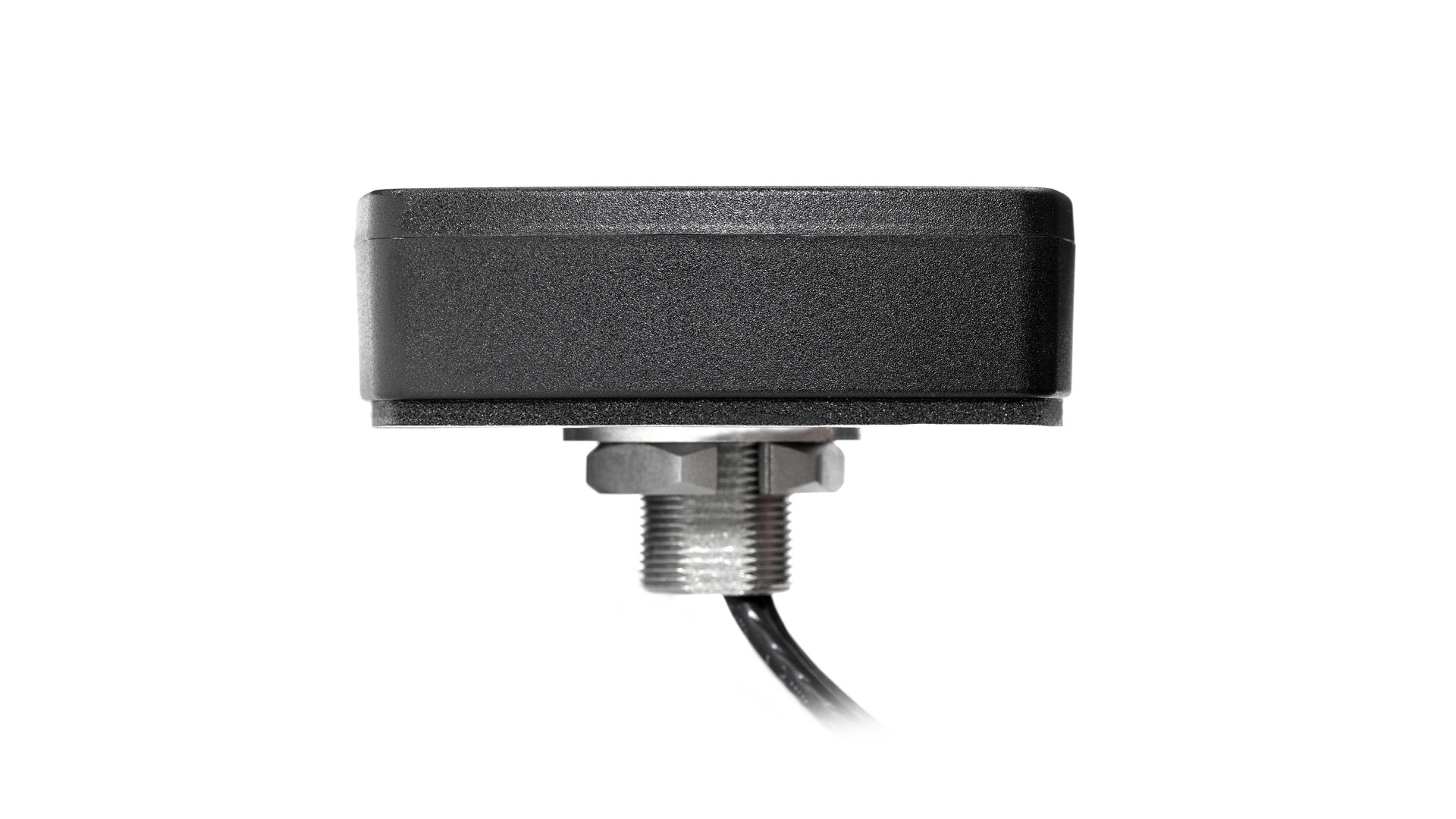

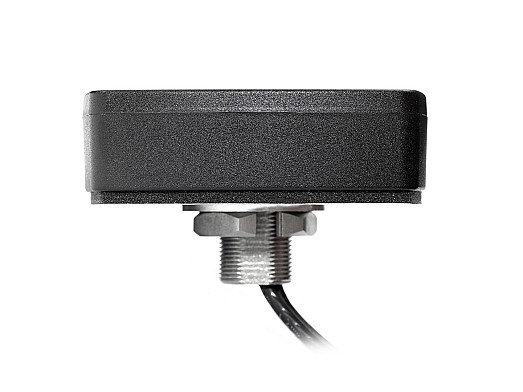

The low-profile 2J6986BGFc measures 80 x 74 x 25.6 mm and is fully IP67 and IP69 certified and the perfect antenna solution for external permanent outdoor installations. The boxed shaped antenna housing is manufactured with durable PC/ASA material available in black and white housing colors. 2J6986BGFc is ground plane independent and designed with an anti-rotation screw mount allowing installation to a wide range of surfaces without the need for grounding or free space.

This antenna comes with standard SMA-Male (RP) connectors and 300 cm long D302 (cellular/ISM)/ D100 (GNSS) cables. The cables and connectors are customizable on this antenna and our highly skilled engineers are ready to assist with any customization, installation, and antenna selection needs.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
