Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-7.0, ~-11.2, ~-7.1, ~-6.4
VSWR ~3.1:1, ~2.1:1, ~3.1:1, ~3.0:1
Efficiency (%) ~50.2, ~56.3, ~30.4, ~25.1
Peak Gain (dBi) ~2.1, ~6.3, ~3.7, ~2.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-7.3, ~-10.8, ~-7.6, ~-8.4
VSWR ~3.1:1, ~2.1:1, ~2.9:1, ~2.3:1
Efficiency (%) ~50.9, ~58.7, ~38.0, ~36.7
Peak Gain (dBi) ~1.6, ~4.3, ~4.5, ~4.4
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 3

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.3:1, ~1.7:1, ~1.4:1
Efficiency (%) ~38.4, ~25.6, ~28.0
Peak Gain (dBi) ~3.8, ~2.8, ~2.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

3-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
6.3 dBi 5G NR Peak Gain
3.8 dBi WIFI Peak Gain
High Performance
Low Profile
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

2J6985Pa

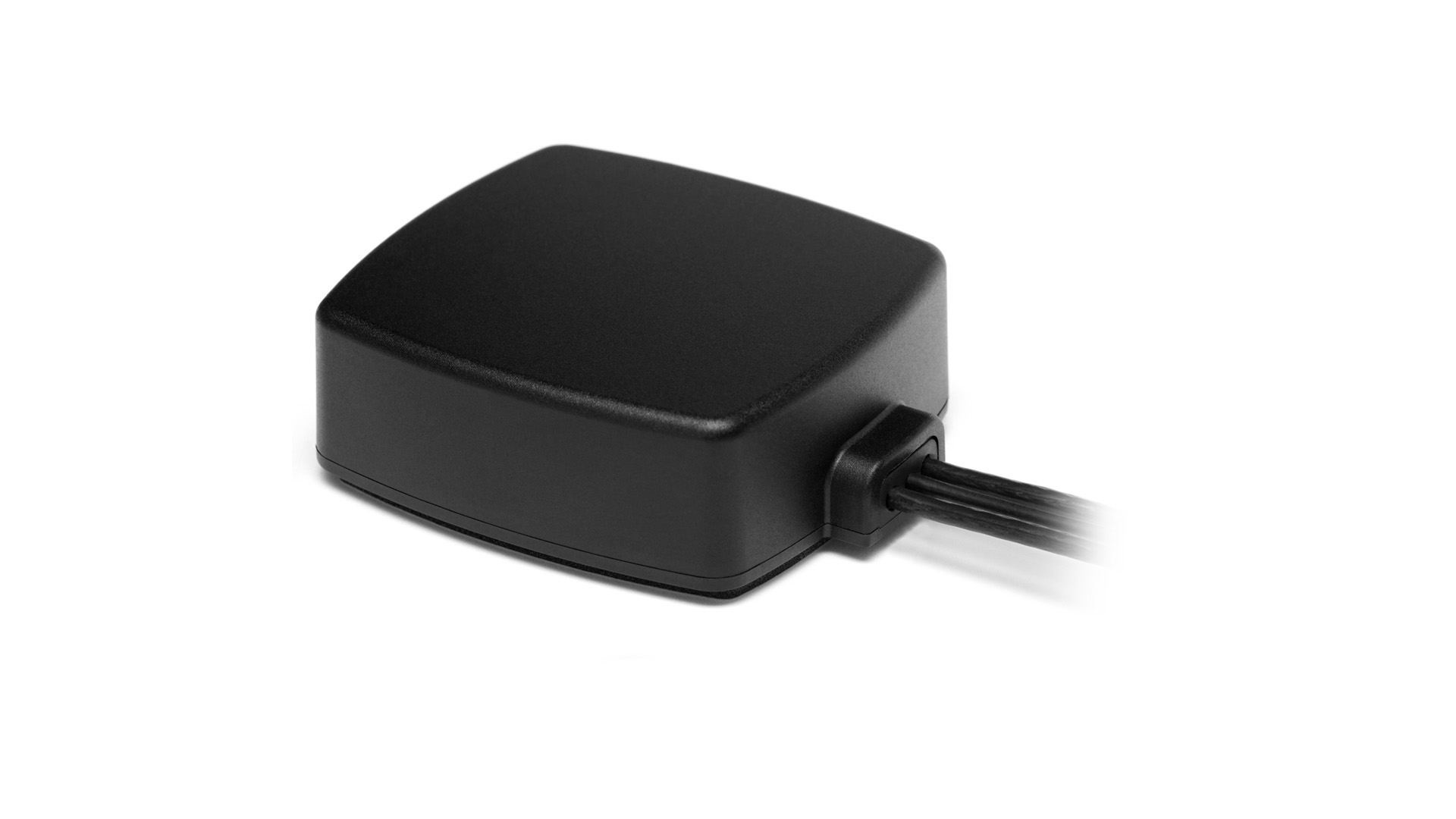

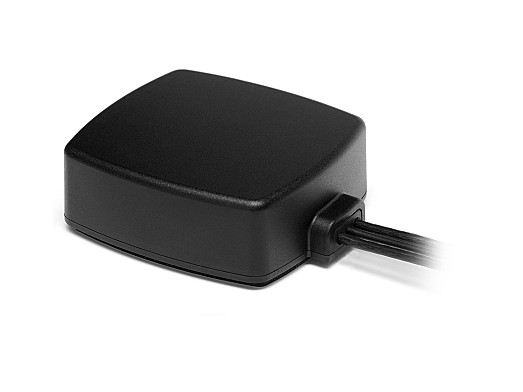

3 in 1 Combination Ultra-Wideband Antenna With Cutting Edge Cellular and WIFI 6E / WIFI 7 Technology

2J Antennas is expanding their “Phoenix” series by adding the high-performance 3-in-1 combination antenna (2J6985Pa) for Cellular/LTE MIMO and WiFi 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM. This powerful and cost-effective antenna is the ideal solution for industrial, commercial, and residential applications that operate on 617 MHz – 7125MHz bands and where high performance, reliability, high data throughput and precision is high priority.

2x 5G NR / LTE MIMO Cables (1 & 2):

Tuned for high data throughput devices that operate within 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X/-MX/-NBx, NB-IoT, 3G and 2G standards. The 5GNR and the CAT connection are backwards compatible with existing 4G, 3G, 2G and other LTE networks. The benefits of dual MIMO cellular capabilities are that the antenna can search and pair the strongest signal to assure continuous connectivity.

2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Cable (3):

Designed for LPWA devices that operate within WiFi, SigFox, LoRa, BT, ZigBee, RFID and ISM standards. The 6.0 GHz band is exclusive to WIFI 6E / WIFI 7 devices offering very large capacity without competing with traffic from other devices or networks resulting in high bandwidth channels, improved security, less interference, and network congestion. This antenna is ideal for low power home automation and monitoring applications that demand faster WiFi, efficient device battery consumption and consistent network availability.



Typical applications


- Emergency Response and Public Safety
- Multi-Media and Real-Time Video Streaming
- Internet of Things (IoT)
- RFID / Asset Tracking
- Automation (home/office/industrial)
- Consumer Electronics Terminal
- High Traffic MIMO Device Connectivity




Installation

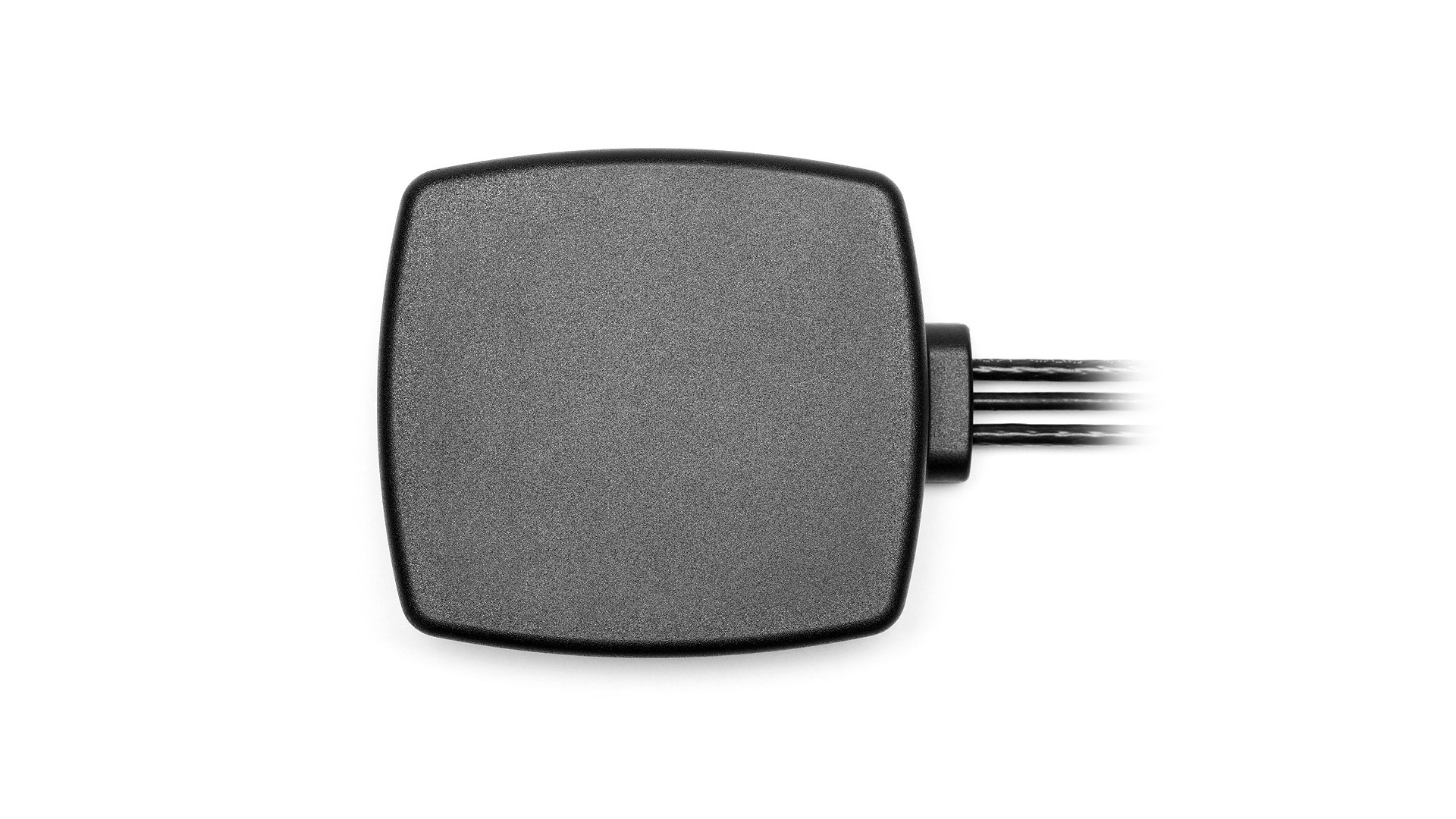

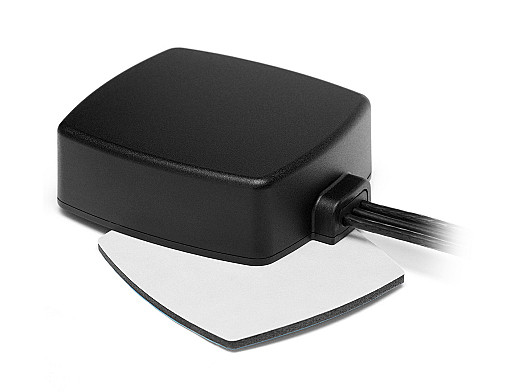

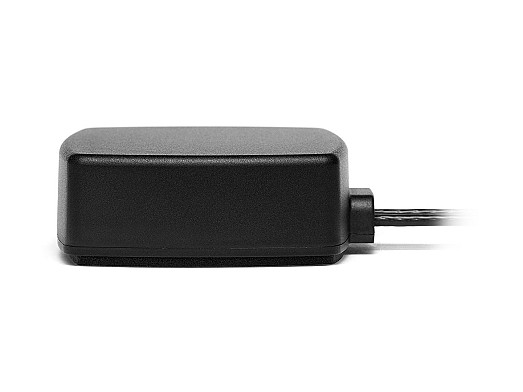

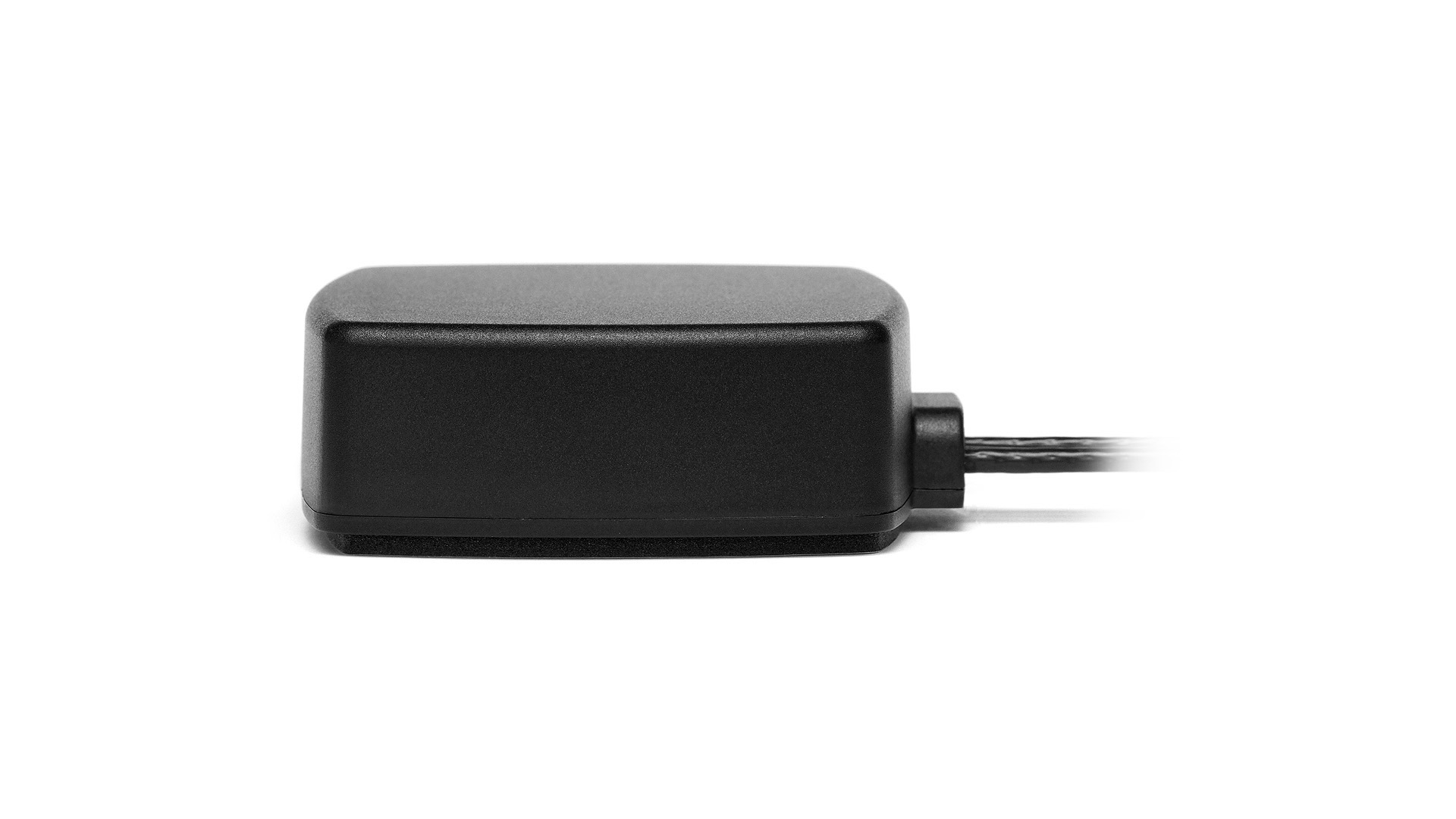

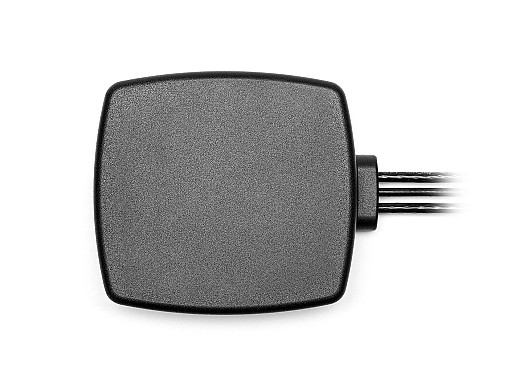

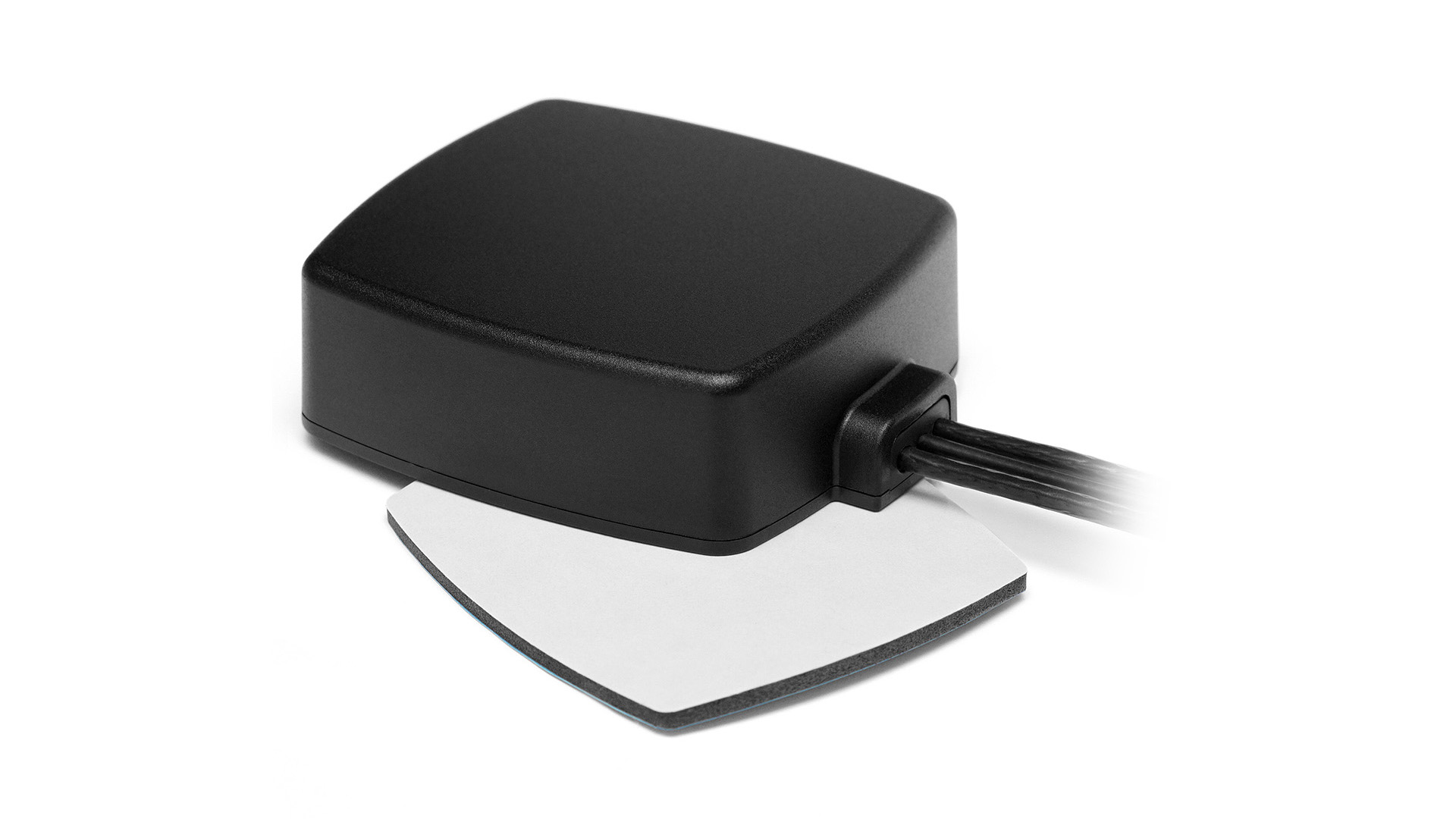

The low-profile 2J6985Pa measures 89 × 76 × 30 mm and is fully IP67 and IP69 certified and the perfect antenna solution for external outdoor installations. The boxed shaped antenna housing is manufactured with durable ASA material available in black and white housing colors. The 2J6985Pa is ground plane independent and designed as adhesive mount allowing installation to a wide range of surfaces without the need for grounding or free space.

This antenna comes with standard SMA-Male (RP) connectors and 300 cm long D302. The cables and connectors are customizable on this antenna and our highly skilled engineers are ready to assist with any customization, installation, and antenna selection needs.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
