Selecting the appropriate antenna is a critical step of any connected device - Talk to Antenna Experts

Marine & Maritime, 4G LTE / NB-IoT Antennas

Browse our selection of products including antennas, mounting brackets, and development kits.

4G LTE / NB-IoT
Marine & Maritime
Loading...
2J6041BGF

2J6041BGF

Falcon 4G LTE/3G/2G GPS/GLONASS/Galileo Compact Versatile SM Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 14.7
Mounting:
Screw Mount
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
5.0 dBi 4G LTE Peak Gain
View Product
2J6941BGF

2J6941BGF

Phoenix 4G LTE/3G/2G Cellular and GNSS/GPS Screw Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 25.6
Mounting:
Screw Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
Low Profile
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
5.3 dBi 4G LTE Peak Gain
View Product
2J6A41BF

2J6A41BF

4G LTE/3G/2G, GPS/Galileo Pre-Filter GNSS Anti-Rotation Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / QZSS / Galileo - L1
Dimensions:
Ø 77.3 × 65.5
Mounting:
Screw Mount
Certificate:
IP67, IK09, IP69K
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
4.0 dBi 4G LTE Peak Gain
Heavy Duty antenna
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
View Product
2J6A41BGF

2J6A41BGF

4G LTE/3G/2G, GPS/Galileo Ground Plane Dependent Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 77.3 × 65.5
Mounting:
Screw Mount
Certificate:
IP67, IK09, IP69K
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
4.0 dBi 4G LTE Peak Gain
Heavy Duty antenna
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
View Product
2J7541BG

2J7541BG

4G LTE/3G/2G, GPS/Galileo High Performance IP67 IP69K Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 64 × 81.4
Mounting:
Screw Mount
Certificate:
IP67, IP69K
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
2.6 dBi 4G LTE Peak Gain
Customizable Cable and Connector
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
Non-Filter GNSS
27 dB GNSS Active Gain
GNSS Voltage Range 2.7 - 5.5 V
View Product
2J7641BGF

2J7641BGF

Mini-Shaker 4G LTE/3G/2G, GPS/GLONASS/Galileo low-profile Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 50 × 50.8
Mounting:
Screw Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3.2 dBi 4G LTE Peak Gain
View Product
2J7741BGF

2J7741BGF

Shaker 4G LTE/3G/2G, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 60 × 69
Mounting:
Screw Mount
Certificate:
IP67, IP69, IK09
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
4.3 dBi 4G LTE Peak Gain
View Product
2J8741BGF

2J8741BGF

2-in-1 Cellular/LTE and GNSS ‘Shark Fin’ Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
102 × 63 × 63
Mounting:
Screw Mount
Certificate:
IP67 after mounted, IP69 after mounted, IK09
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3.1 dBi 4G LTE Peak Gain
View Product
2J4241PGF

2J4241PGF

4G LTE/3G/2G GPS/GLONASS/Galileo Compact size Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
77 × 34 × 14
Mounting:
Adhesive Mount
Certificate:
IP67
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
2.4 dBi 4G LTE Peak Gain
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
View Product
2J4441PGF

2J4441PGF

4G LTE/3G/2G GPS/GLONASS/Galileo Customizable Adhesive Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
161 × 76.5 × 16
Mounting:
Adhesive Mount
Certificate:
IP67
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
4.1 dBi 4G LTE Peak Gain
2-in-1 Combination Antenna
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
24 dB GNSS Active Gain
Post Filter GNSS
View Product
2J4441PGFR

2J4441PGFR

4G LTE/3G/2G GPS/GLONASS/Galileo 10K Resistor Adhesive Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
161 × 76.5 × 16
Mounting:
Adhesive Mount
Certificate:
IP67
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
4.1 dBi 4G LTE Peak Gain
2-in-1 Combination Antenna
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
24 dB GNSS Active Gain
Post Filter GNSS
10K resistor for antenna detection
View Product
2J4841PCF

2J4841PCF

4G LTE/3G/2G, GPS/GLONASS/BeiDou/Galileo 2 Cables Adhesive Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
Dimensions:
83 × 35 × 13.3
Mounting:
Adhesive Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
2.4 dBi 4G LTE Peak Gain
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
View Product
2J4841PGF

2J4841PGF

4G LTE/3G/2G, GPS/GLONASS/Galileo 2 Cables Adhesive Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
83 × 35 × 13.3
Mounting:
Adhesive Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
2.4 dBi 4G LTE Peak Gain
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
View Product
2J4941PGF

2J4941PGF

4G LTE/3G/2G, GPS/GLONASS/Galileo High Performance Adhesive Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
150.5 × 42 × 15.3
Mounting:
Adhesive Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
High Efficiency
Customizable Cable and Connector
Low Profile
3.9 dBi 4G LTE Peak Gain
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
View Product
2J6041PGF

2J6041PGF

Falcon 2-in-1 4G LTE/3G/2G, GPS/GLONASS/Galileo Adhesive Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 76 × 16
Mounting:
Adhesive Mount
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3.2 dBi 4G LTE Peak Gain
View Product
2J6941PGF

2J6941PGF

Phoenix 4G/3G/2G Cellular and GPS/GNSS Adhesive Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
89 × 76 × 30
Mounting:
Adhesive Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
5.8 dBi 4G LTE Peak Gain
View Product
2J6041MGF

2J6041MGF

Falcon 4G LTE/3G/2G GPS/GLONASS/Galileo Compact Magnetic Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 76 × 13
Mounting:
Magnetic Mount
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
4.3 dBi 4G LTE Peak Gain
View Product

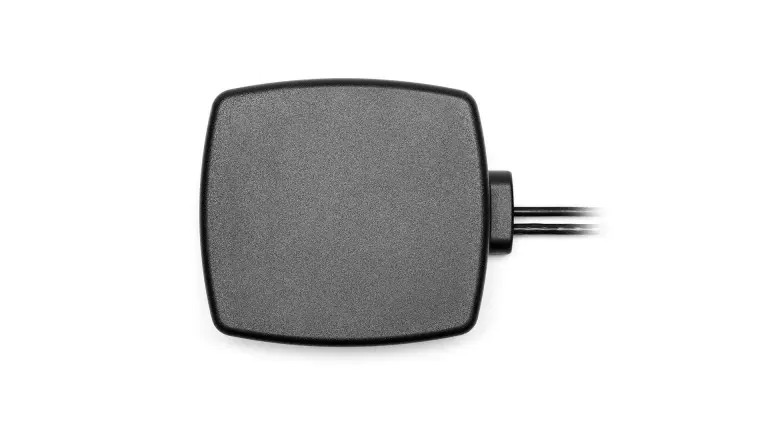

2J6941MGF

2J6941MGF

Phoenix 4G LTE/3G/2G Cellular and GNSS/GPS Magnetic Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
89 × 76 × 27
Mounting:
Magnetic Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
Low Profile
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
5.8 dBi 4G LTE Peak Gain
View Product
2J7541MG

2J7541MG

4G LTE/3G/2G, GPS/Galileo High Performance MM Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 54 × 80
Mounting:
Magnetic Mount
Certificate:
IP67, IP69K
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
2.6 dBi 4G LTE Peak Gain
Customizable Cable and Connector
2-in-1 Combination Antenna
Active GNSS Antenna
Non-Filter GNSS
27 dB GNSS Active Gain
GNSS Voltage Range 2.7 - 5.5 V
View Product
2J7741MGF

2J7741MGF

Shaker 4G LTE/3G/2G, GPS/GLONASS/Galileo Magnetic Mount Antenna.

Connections (2)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 54 × 68.2
Mounting:
Magnetic Mount
Certificate:
IP67, IP69, IK09
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Heavy Duty antenna
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3.1 dBi 4G LTE Peak Gain
View Product
2J6041BGFa

2J6041BGFa

Falcon 2 x 4G LTE/3G/2G MIMO, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 14.7
Mounting:
Screw Mount
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
3.2 dBi 4G LTE Peak Gain
View Product
2J6050BGF

2J6050BGF

Falcon 4G LTE/3G/2G, Wifi ISM, GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
2.4 / 5.0 GHz WIFI / ZigBee / ISM
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 14.7
Mounting:
Screw Mount
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
3.4 dBi WIFI Peak Gain
5.2 dBi 4G LTE Peak Gain
View Product
2J6069BGF

2J6069BGF

Falcon 4G LTE/3G/2G, 868/915 MHz ISM and GPS/GLONASS/Galileo Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 14.7
Mounting:
Screw Mount
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Low Profile
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
Dual Band 868/915 MHz ISM Antenna
3.3 dBi 868/915 MHz ISM Peak Gain
2.5 dBi 4G LTE Peak Gain
View Product
2J6941BGFa

2J6941BGFa

Phoenix 4G LTE/3G/2G Cellular MIMO and GNSS/GPS Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 25.6
Mounting:
Screw Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
Low Profile
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
6.0 dBi 4G LTE Peak Gain
3-in-1 Combination Antenna
View Product
2J6950BGF

2J6950BGF

Cellular 4G LTE/3G/2G, WiFi 2.4/5.0 GHz ISM and GNSS Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
2.4 / 5.0 GHz WIFI / ZigBee / ISM
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
80 × 74 × 25.6
Mounting:
Screw Mount
Certificate:
IP67, IP69
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
Low Profile
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
3.4 dBi WIFI Peak Gain
5.3 dBi 4G LTE Peak Gain
View Product
2J6A41BGFa

2J6A41BGFa

2 x 4G LTE/3G/2G MIMO GPS/GLONASS/Galileo Ground Plane Dependent Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 77.3 × 65.5
Mounting:
Screw Mount
Certificate:
IP67, IP69, IK09
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
3.4 dBi 4G LTE Peak Gain
View Product
2J6A50BCF

2J6A50BCF

4G LTE/3G/2G, WiFi ISM, GPS/GLONASS/BeiDou/Galileo Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
2.4 / 5.0 GHz WIFI / ZigBee / ISM
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
Dimensions:
Ø 77.3 × 65.5
Mounting:
Screw Mount
Certificate:
IP67, IK09, IP69K
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
4.0 dBi 4G LTE Peak Gain
Heavy Duty antenna
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
5.0 dBi WIFI Peak Gain
3-in-1 Combination Antenna
View Product
2J6A50BGF

2J6A50BGF

4G LTE/3G/2G, Wifi ISM, GPS/GLONASS/Galileo Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
2.4 / 5.0 GHz WIFI / ZigBee / ISM
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 77.3 × 65.5
Mounting:
Screw Mount
Certificate:
IP67, IK09, IP69K
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
4.0 dBi 4G LTE Peak Gain
Heavy Duty antenna
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
5.0 dBi WIFI Peak Gain
3-in-1 Combination Antenna
View Product
2J7041BGFa

2J7041BGFa

Medusa 4G LTE/3G/2G Cellular MIMO and GPS/GNSS Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 96 × H 90
Mounting:
Screw Mount
Certificate:
IP67, IP69, IK09
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
24 dB GNSS Active Gain
Post Filter GNSS
4.2 dBi 4G LTE Peak Gain
3-in-1 Combination Antenna
View Product
2J7114BGF

2J7114BGF

Big-Medusa Cellular 4G LTE/3G/2G, TETRA/UHF, GNSS/GPS Screw Mount Antenna.

Connections (3)
4G LTE / Cellular / LPWA / NB-IoT
TETRA / UHF / LMR - 380-470 MHz
GPS / GLONASS / QZSS / Galileo - L1
Dimensions:
Ø 96 × H 130
Mounting:
Screw Mount
Certificate:
IP67, IP69, IK09
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
3.0 dBi 4G LTE Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
Public safety TETRA Antenna
2.1 dBi TETRA Peak Gain
View Product

Stay Connected

Never miss anything important with our newsletter.
