Key Features

  • GPS/GLONASS/BeiDou/QZSS/Galileo
  • Surface Mount
  • Easy to Integrate
  • Compact Size
  • Ceramic Passive Antenna
  • Ground Plane Dependent
  • Applications

    Antenna and electrical specifications

    connection 1

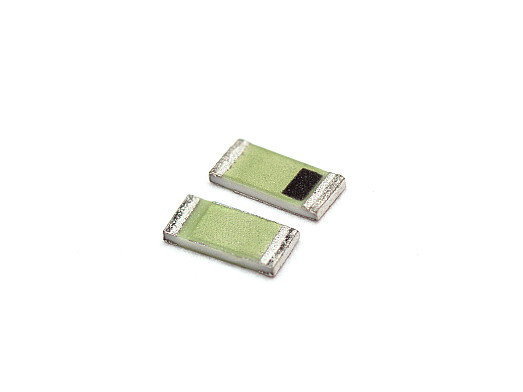

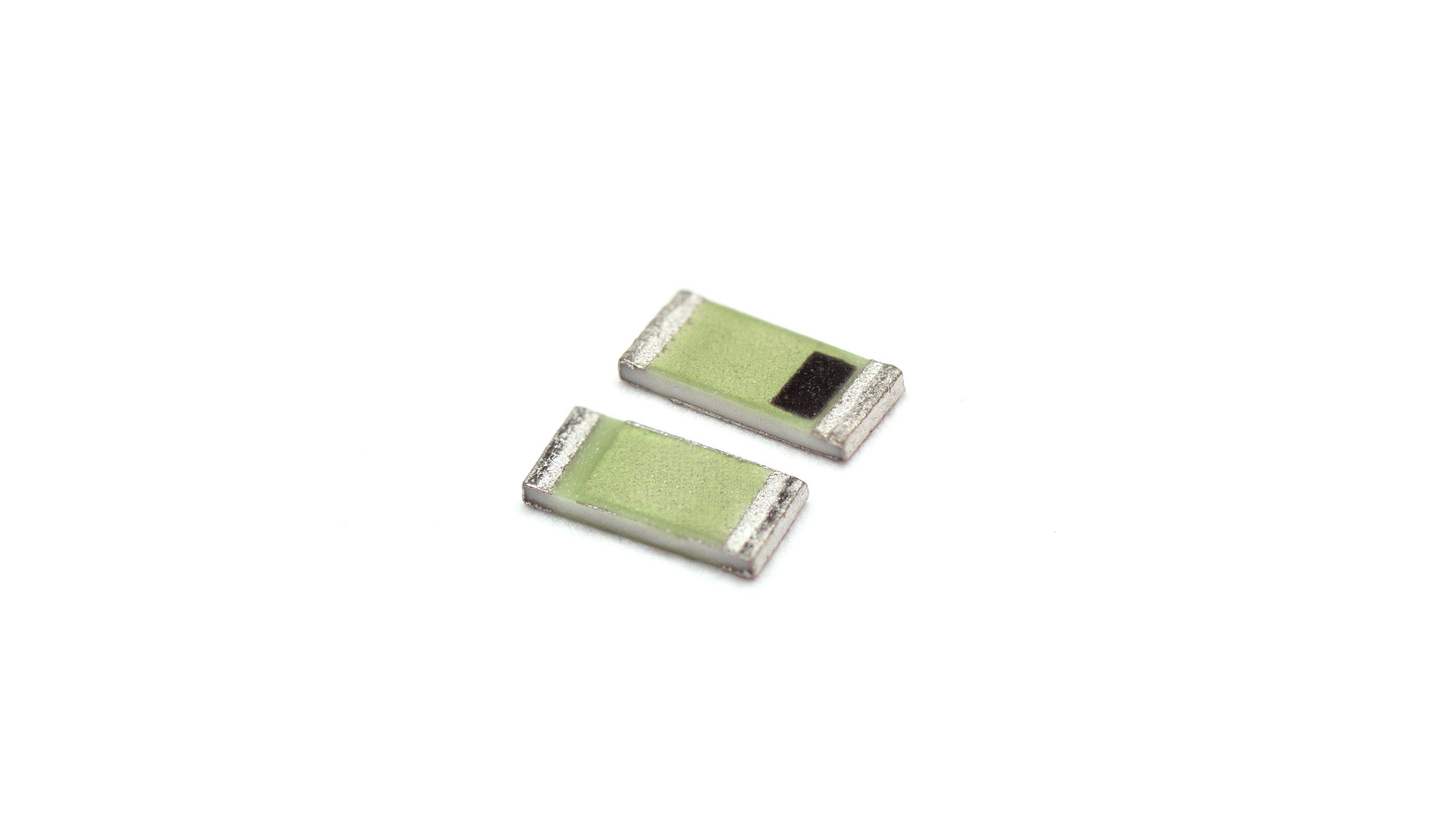

    GPS/GLONASS - Ceramic Passive Antenna

    Standards GPS/GLONASS/BeiDou/QZSS/Galileo
    Frequency 1561.098, 1575.42, 1598-1606
    Peak Gain (dBi) ~1.7, ~2.3, ~1.8
    Efficiency (%) ~64.6, ~67.2, ~61.1
    Impedance (Ohm) 50
    Radiation Pattern Omni-Directional
    Polarization Linear
