Antenna and electrical specifications

connection 1

2.4/5.0/6.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.5:1, ~1.5:1, ~2.1:1
Efficiency (%) ~35.8, ~28.4, ~25.2
Peak Gain (dBi) ~3.5, ~2.9, ~2.9
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Wifi 6E Antenna
Ground Plane Dependent
3.5 dBi WIFI Peak Gain
Low Profile
Customizable Cable and Connector

Applications

Antenna Description

Most Competitive Next Generation Solution for Wireless Applications

The 2J4702B Wi-Fi 6E antenna is suitable for 2.4/5.0/6.0, WiFi, and WiFi 6E technologies. WiFi 6E offers lower power consumption, higher data rates with peak gigabit speeds, increased capacity with reduced latency that supports a higher volume of users and devices, making it ideal for the next-gen commercial and residential wireless applications. This is a substantial improvement for routers, gaming, and IoT devices.

The 2J4702B caters to 2.4/5.0/6.0, WiFi, WiFi 6, WiFi 6E, BT, ZigBee, ISM, SigFox, and LoRa standards and is backward compatible, allowing computing and mobile devices to reach exceptional signal quality operating within 2410 MHz to 7125 MHz frequencies. This powerful antenna combines 3.5 dBi WiFi peak gain and up to 35.8% efficiency for optimal antenna performance where uninterrupted signal strengths and high bandwidths are desired, even in very crowded networks.

Suggested applications include:

  • IoT devices
  • Commercial and residential automation
  • Consumer electronics
  • Mobile and computing devices
  • Gaming
  • Augmented reality
  • Virtual reality
  • Industrial, scientific and medical devices

Installation / Environmental

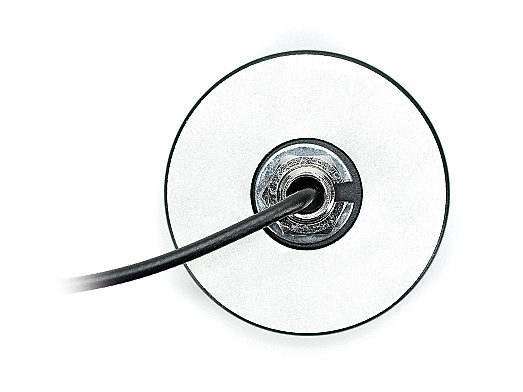

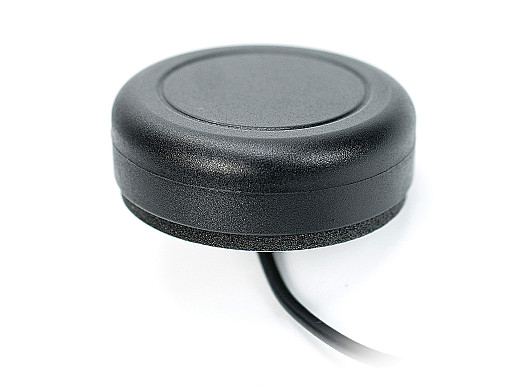

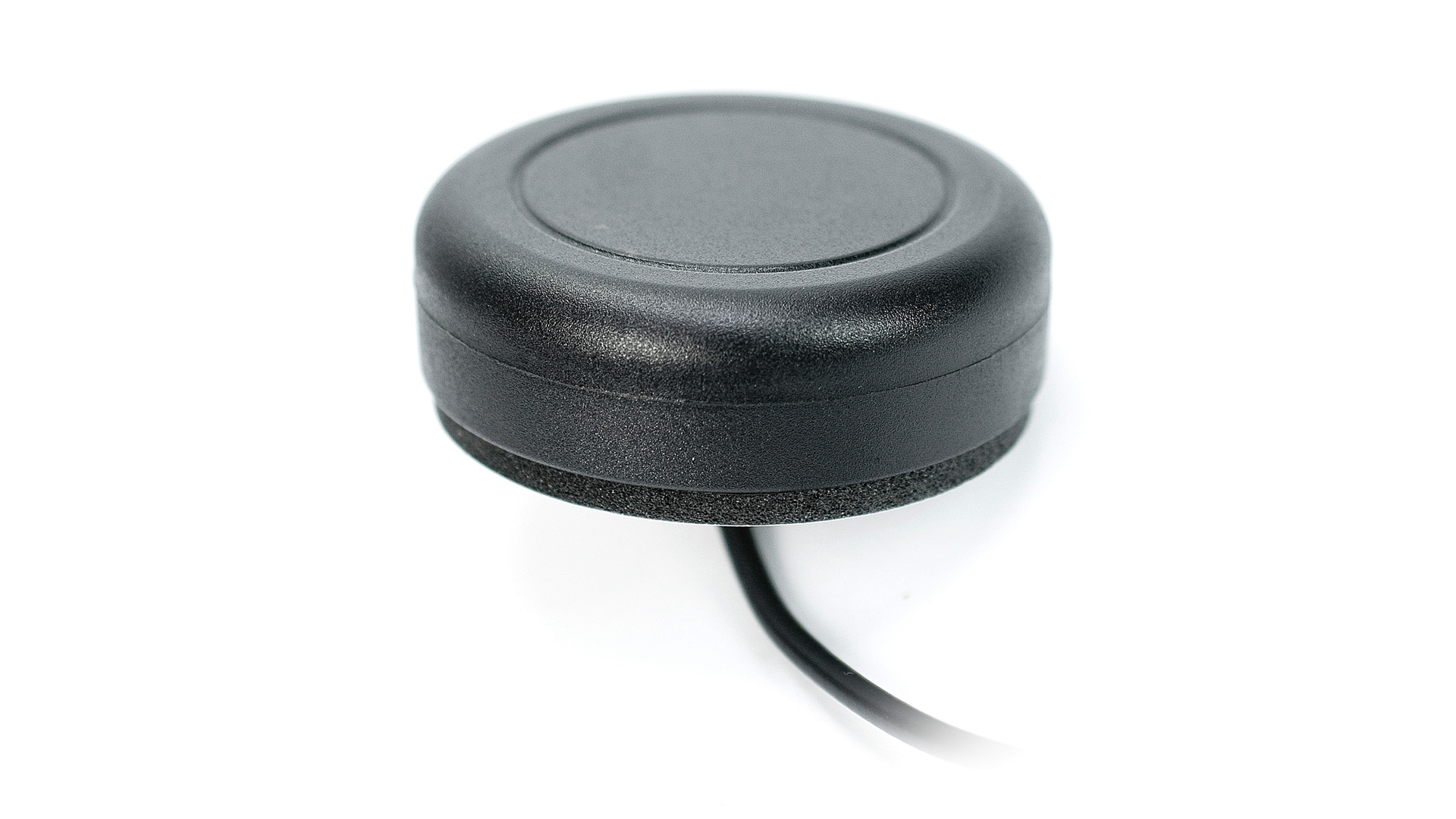

The 2J4702B is designed with a compact dimension of 52 x 17.5 mm and comes with a screw mount. This antenna is manufactured with high-grade IP69K ASA UV stable material that has a strong resistance to corrosive chemicals and/or physical impacts making it extremely durable in temperatures ranging between -40C and +85C. The IP69K rating provides protection against water, chemicals, high pressure and high temperature. This low-profile form factor antenna is ground plane dependent. The 2J4702B is delivered with a standard RF-SMA-Male connector and a standard 300 cm RG174 cable. The antenna comes with a selection of customized extension cable lengths and connector types. This antenna is manufactured without any hazardous materials while maintaining full REACH and RoHS compliance.
