Antenna and electrical specifications

connection 1

2.4/5.0/6.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.4:1, ~2.2:1, ~2.5:1
Efficiency (%) ~53, ~64, ~52.1
Peak Gain (dBi) ~3.2, ~5.0, ~5.2
50
Polarisation Linear
Max. Input Power (W) 10
connection 2

2.4/5.0/6.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.4:1, ~2.2:1, ~2.7:1
Efficiency (%) ~55, ~63, ~63
Peak Gain (dBi) ~3.0, ~4.9, ~5.2
50
Polarisation Linear
Max. Input Power (W) 10

Key Features

2-in-1 Combination Antenna
Wifi 6E Antenna
Flexi Internal Antenna
Ground Plane Independent
5.2 dBi WIFI Peak Gain
High Performance
Compact Size
Self-Adhesive
Customizable Cable and Connector

Antenna description

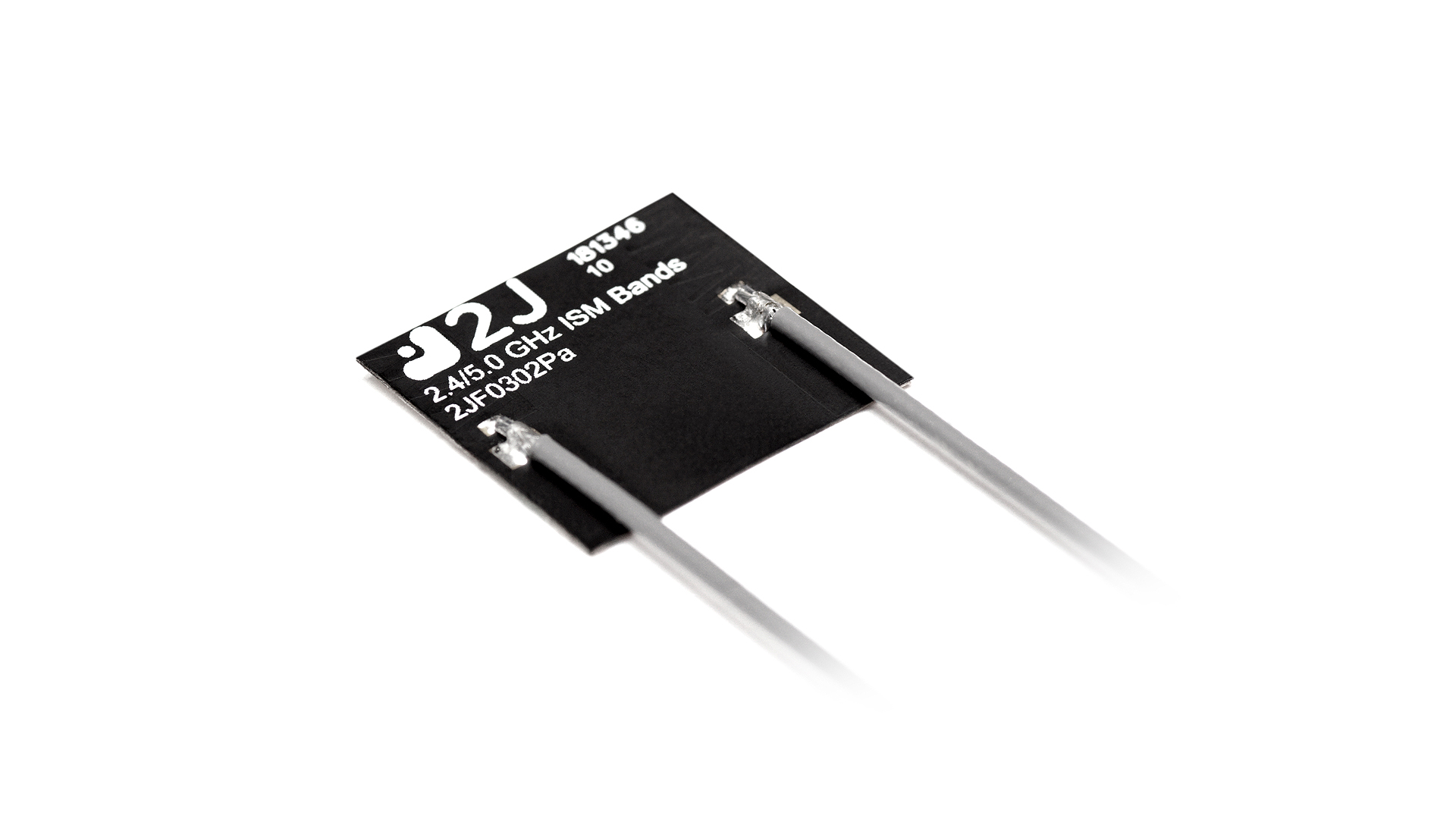

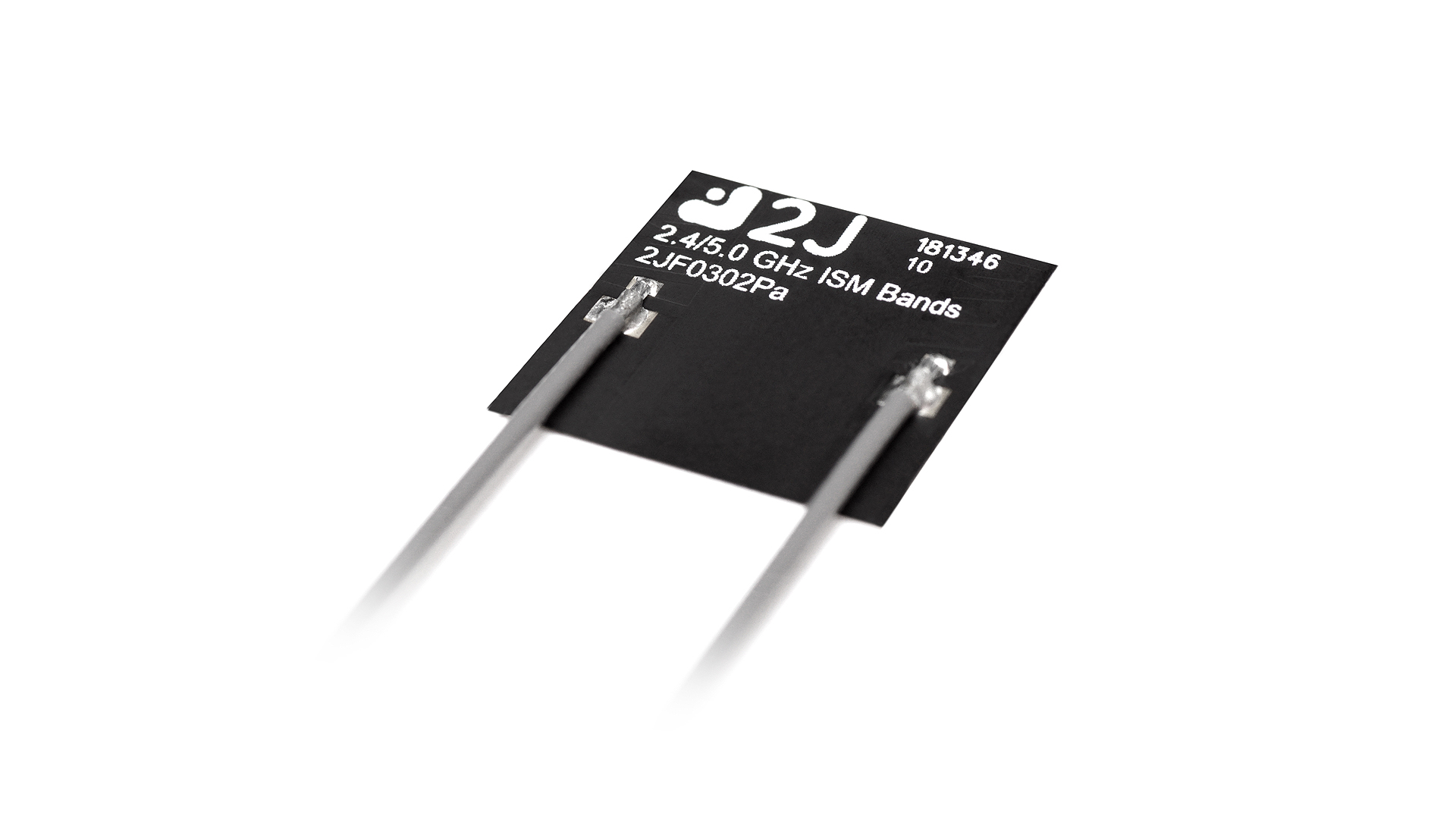

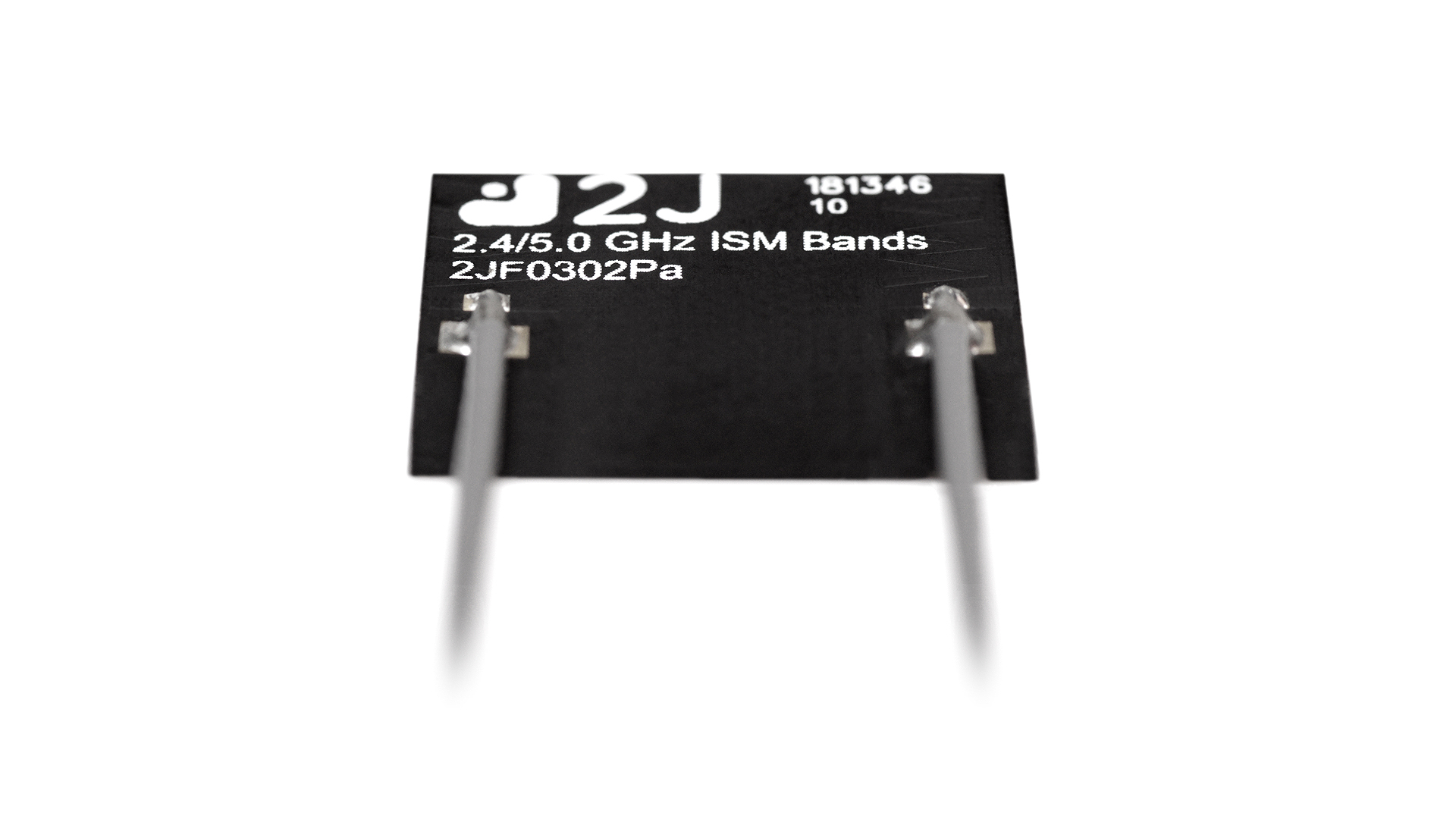

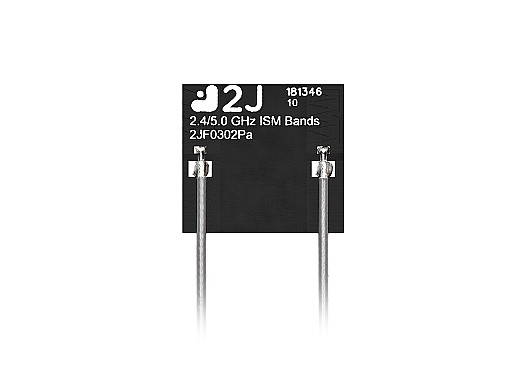

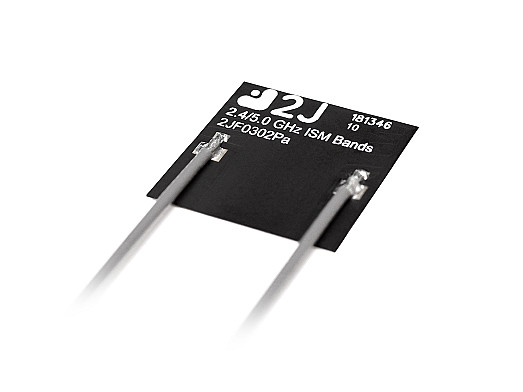

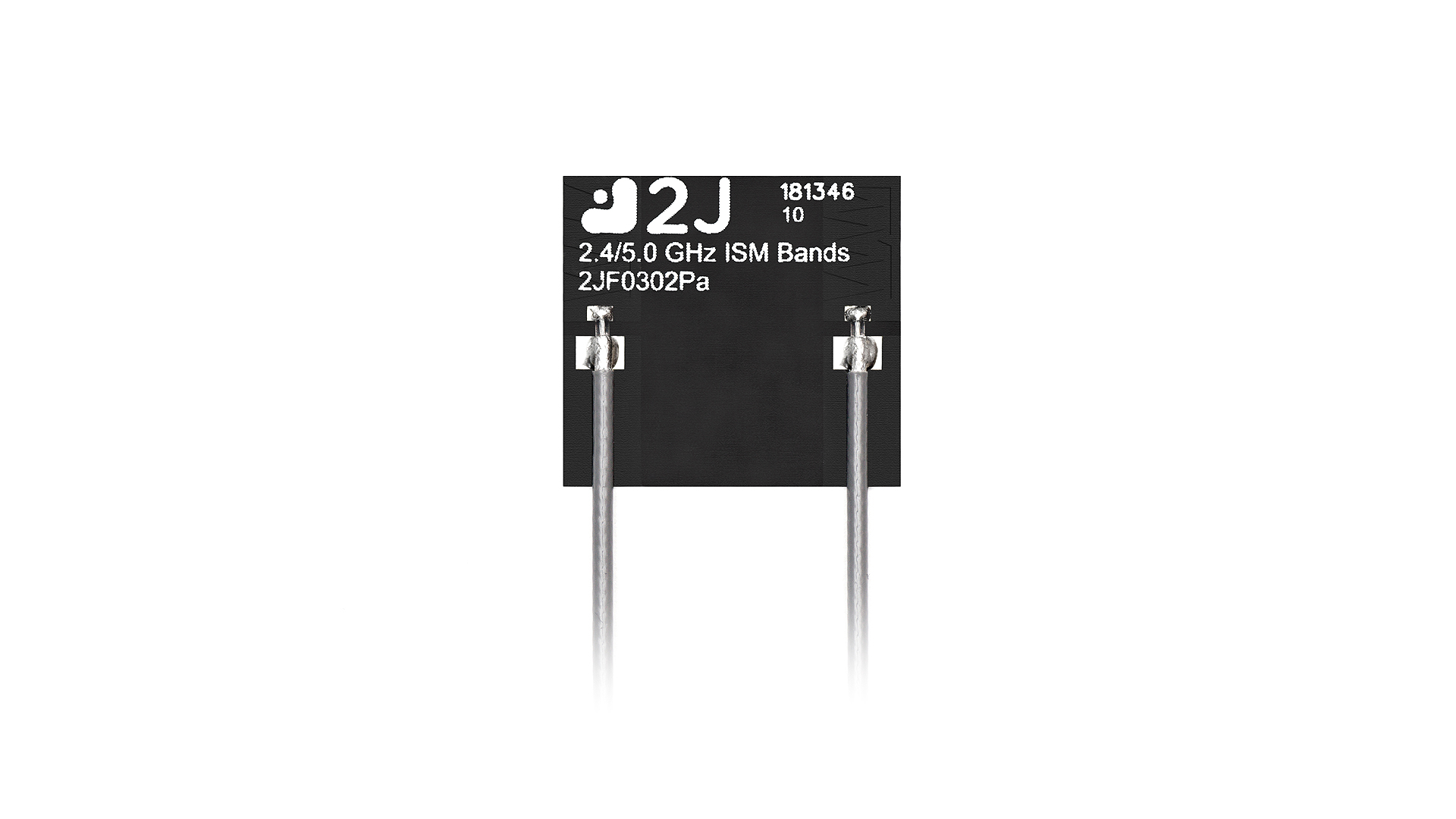

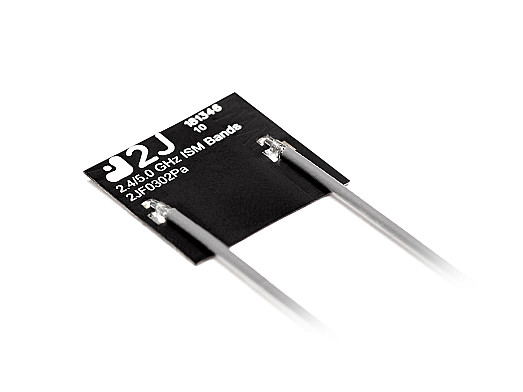

2JF0302Pa



One of the smallest WiFi ISM MIMO flexible self-adhesive embedded antennas on the market

At only 22x20mm size, this flexible self-adhesive embedded antenna is one of the only designs providing a MIMO solution suitable for 2.4/5.0/6.0, WiFi, WiFi 6 and WiFi 6E technologies. WiFi 6E offers lower power consumption, higher data rates with peak gigabit speeds, increased capacity with reduced latency that supports higher volume of users and devices, making it ideal for the next-gen commercial and residential wireless applications. This is a substantial improvement for routers, gaming and IoTdevices.

Applications

Implementing an omnidirectional design the 2JF0302Pis ideal for IoTand automotive wireless systems as it provides 360° of coverage. Applications can range from WiFi hotspots, dash cameras, routers, infotainment systems and any others that require contact connection with large data demand. Where the 2JF0302Pexceeds is particularly based on its MIMO design capability. One of the top applications for this antenna is data actually intensive integrations, such as connected cars, self-driving cars and self-driving systems such as manufacturing autonomous robots and other logistical applications. This system is compatible with a large number of standards such as WiFi, Bluetooth, BLE, ISM, DSRC, V2V, V2X, Sigfox, LoRa, ZigBee, RPMAand LPWAN.



Typical applications

- IoTdevices
- Commercial and residential automation
- Consumer electronics
- Mobile and computing devices
- Gaming
- Augmented reality
- Virtual reality
- Industrial, scientific and medical devices



Key Features

- Flexible ultra-small and thin PCB for convenient integration
- Self-Adhesive back side aiding easy installation
- Eco-friendly in Size
- High-Efficiency MIMO Embedded Antenna
- Ground Plane Independent
- Customizable Cable and Connector



Fully Customizable

With an ultra-thin and flexible PCB compact design, this antenna comes equipped with a self-adhesive peel-and-stick installation option. Connectors can be customized based on application and design. of -40C to +85C. All antennas are manufactured using RoHS, REACH compliance.
