Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%) ~45.0, ~56.3, ~43.3, ~42.4
Peak Gain (dBi) ~1.4, ~3.6, ~3.3, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-7.7, ~-12.4, ~-11.9, ~-11.9
VSWR ~2.7:1, ~1.7:1, ~2.0:1, ~1.8:1
Efficiency (%) ~45.4, ~54.8, ~43.0, ~47.1
Peak Gain (dBi) ~1.5, ~3.6, ~3.5, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 3

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.9:1, ~1.6:1, ~1.9:1
Efficiency (%) ~58, ~64, ~65
Peak Gain (dBi) ~5.6, ~5.5, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.9:1, ~1.6:1, ~1.6:1
Efficiency (%) ~58, ~64, ~63.1
Peak Gain (dBi) ~5.6, ~5.5, ~3.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 5

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137.5
Out of Band Rejection (dB) 32

Key Features

5-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
3.8 dBi 5G NR Peak Gain
5.6 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Lightweight Plastic Base
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

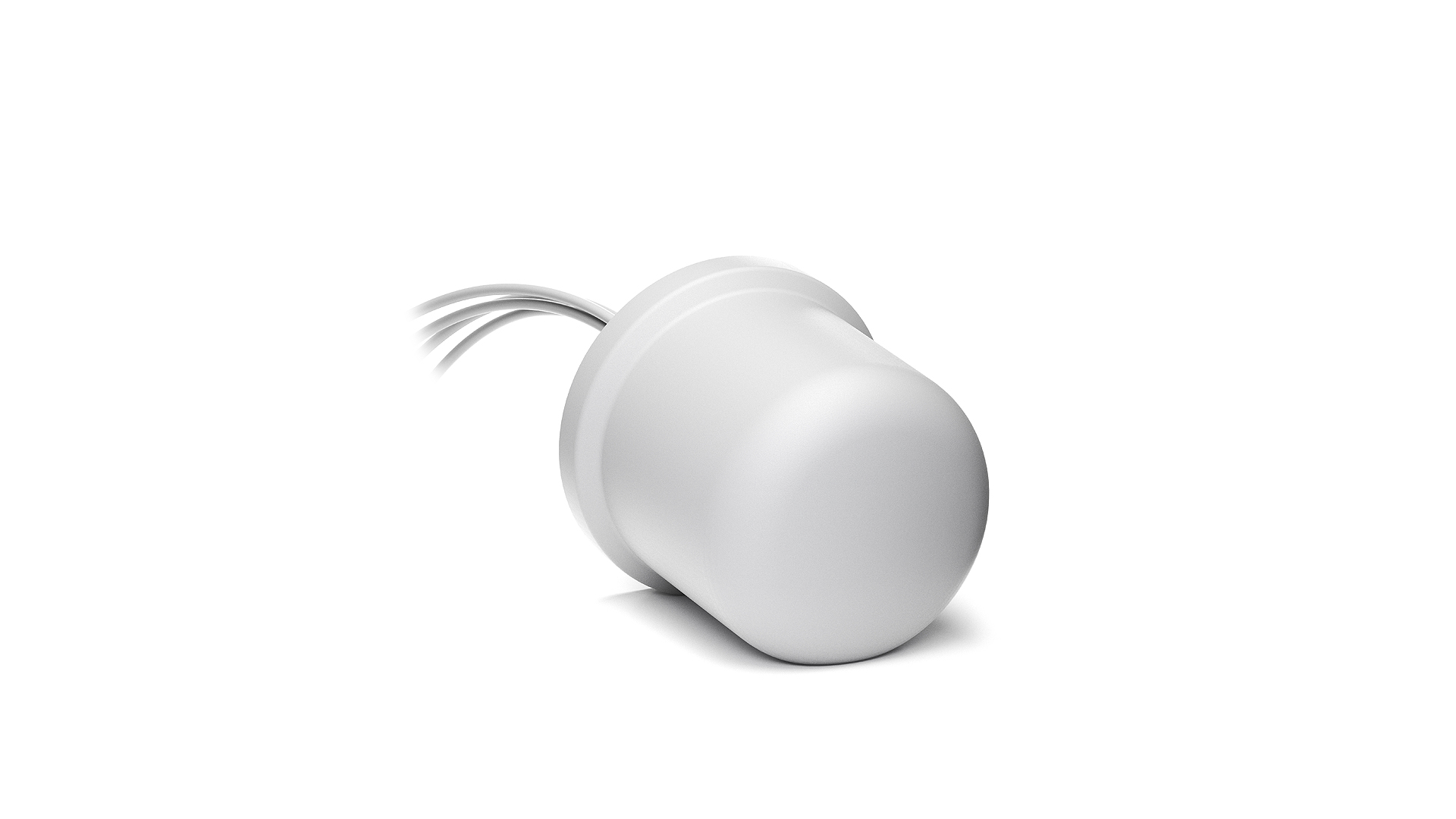

2J7A86BGFa

The Leading Antenna Solution That Outperforms in Every Category

The 5-in-1 Combination Antenna (2J7A86BGFa) is part of our “Medusa” series and offers superior performance with dual 5GNR MIMO, dual 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM MIMO and single GPS/GNSS connectivity. This ultra-wide band antenna facilitates communications in MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. These features make it a leading antenna solution for the next generation of mobile services including high-end public safety, railway, transportation, critical communications, automotive, industrial and consumer automation.

Typical applications

- Terminals, Base Stations and Routers
- Emergency Services and Public Safety
- MIMO Device Connectivity
- Industrial, Commercial and Residential IoT / Smart Home
- Electrical and Environmental Monitoring
- RFID Asset Tracking
- Industrial Automation / Robotics
- Real-Time Remote Control
- GPS-Enabled IoT Applications (Agriculture Equipment)
- V2V, V2X and Fleet Management
- Multi-Media and Real-Time 4k/HD Video Streaming



Connection 1 & 2: 5GNR

Cables 1 and 2 are designed for high traffic devices that operate within 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X-Mx, CAT-NBx, NB-IoT, 3G and 2G standards. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility. These dual connections bring exceptional signal strength and quality in a 360-degree radiation pattern while maintaining high peak gain of up to ~3.8 dBi and up to ~56.3% efficiency.

Connection 3 & 4: 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM

Cable 3 and 4 are designed for LPWA devices that operate within WiFi, BT, ZigBee and ISM standards. The 2.4/5.0 GHz and the 6.0 GHz bands combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for low power home automation and monitoring applications that demand faster WiFi and consistent network availability. These two connections offer up to ~5.6 dBi peak gains and maximum efficiency of ~65%.

Connection 5: GPS/GLONASS

This single cable is tuned with precision and reliability for navigational applications that operate within GPS, QZSS, Galileo and GLONASS standards. With a hemispherical radiation pattern and right-hand circular polarization, cable 5 radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals, penetrating obstructions, reducing dead spots, boosting throughput, and improving resistance to signal degradation caused by inclement weather conditions. Cable 5 can maintain an active peak gain of 23 dBi @ 3V/ 24 dBi @ 5V. The SAW post-filter blocks inadequate frequencies with an out of band rejection of ~32 dB across the 1575 – 1602 MHz bands.

Installation / Environmental

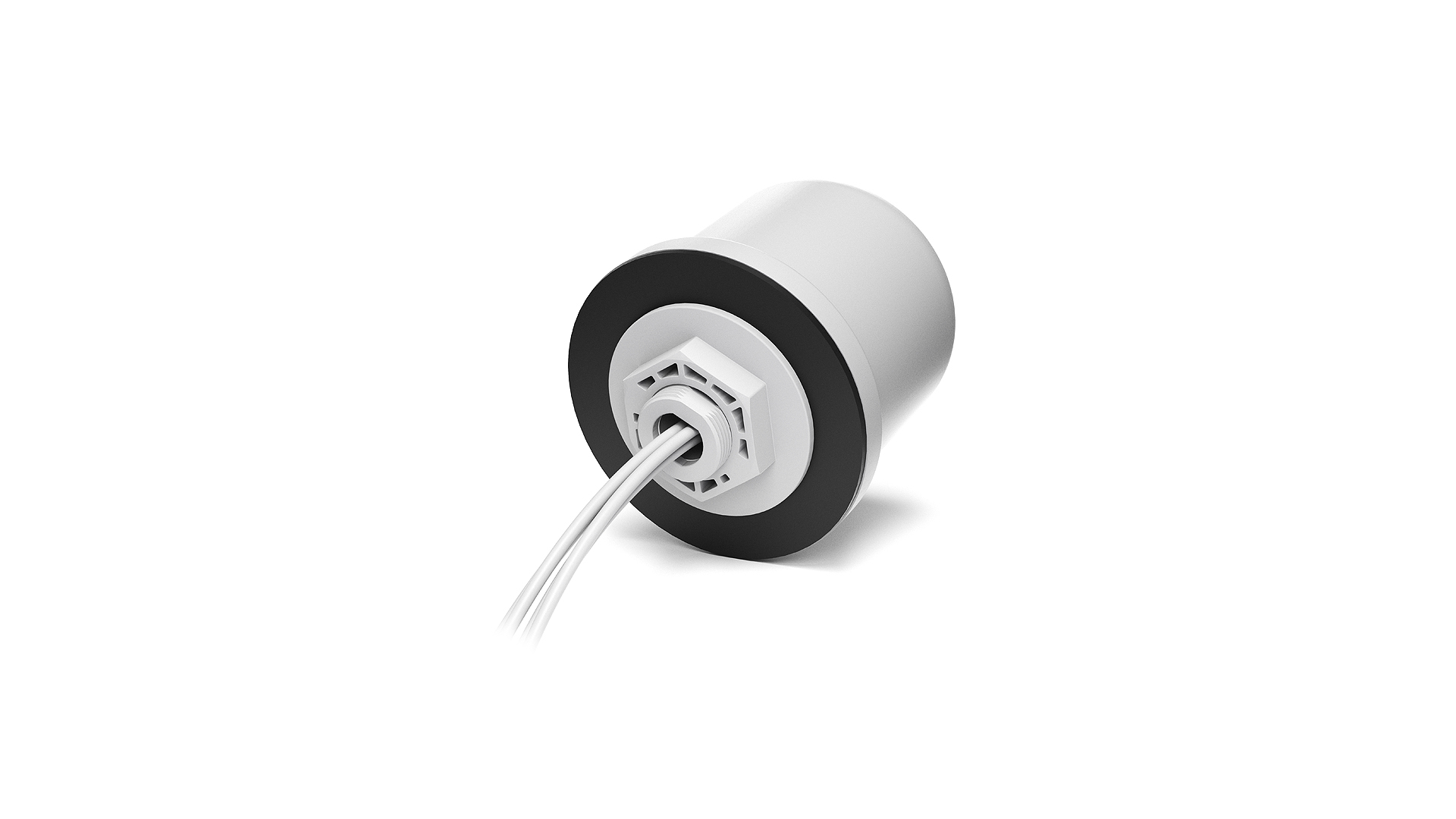

The 2J7A86BGFa is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything Marine Aviation Applications Satellite Realtime Navigation MIMO Device Connectivity Retail Services Home Applications Public Wi-Fi Short-Range Personal Area Networks High-Density Environments MU-MIMO Connectivity RFID devices V2X - Vehicle to Everything
