Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.3, ~-10.8, ~-9.4, ~-6.7
VSWR ~3.6:1, ~2.0:1, ~2.3:1, ~2.9:1
Efficiency (%) ~45.7, ~58.8, ~49.2, ~31.9
Peak Gain (dBi) ~0.4, ~4.5, ~5.3, ~4.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.5, ~-11.4, ~-11.3, ~-9.5
VSWR ~3.5:1, ~1.8:1, ~1.9:1, ~2.1:1
Efficiency (%) ~45.3, ~58.3, ~48.8, ~42.2
Peak Gain (dBi) ~0.5, ~4.1, ~4.9, ~4.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 3

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~2.4:1, ~1.6:1, ~2.5:1
Efficiency (%) ~40.2, ~49.0, ~33.8
Peak Gain (dBi) ~3.7, ~4.8, ~2.9
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.9:1, ~1.7:1, ~2.7:1
Efficiency (%) ~47.3, ~48.4, ~29.2
Peak Gain (dBi) ~4.6, ~5.0, ~2.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 5

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impedance (Ohm) 50
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6

Key Features

5-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
5.3 dBi 5G NR Peak Gain
5.0 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

The Heavy Duty 5-in-1 Solution That Delivers Powerful Technology And High Performance While On The Move

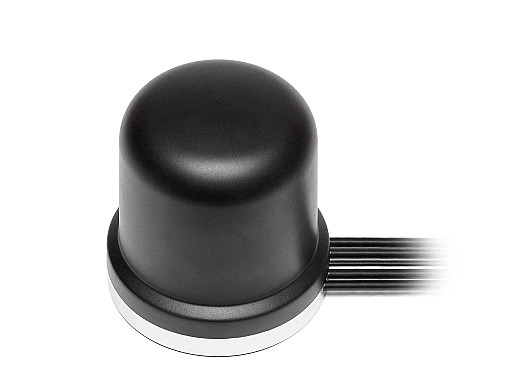

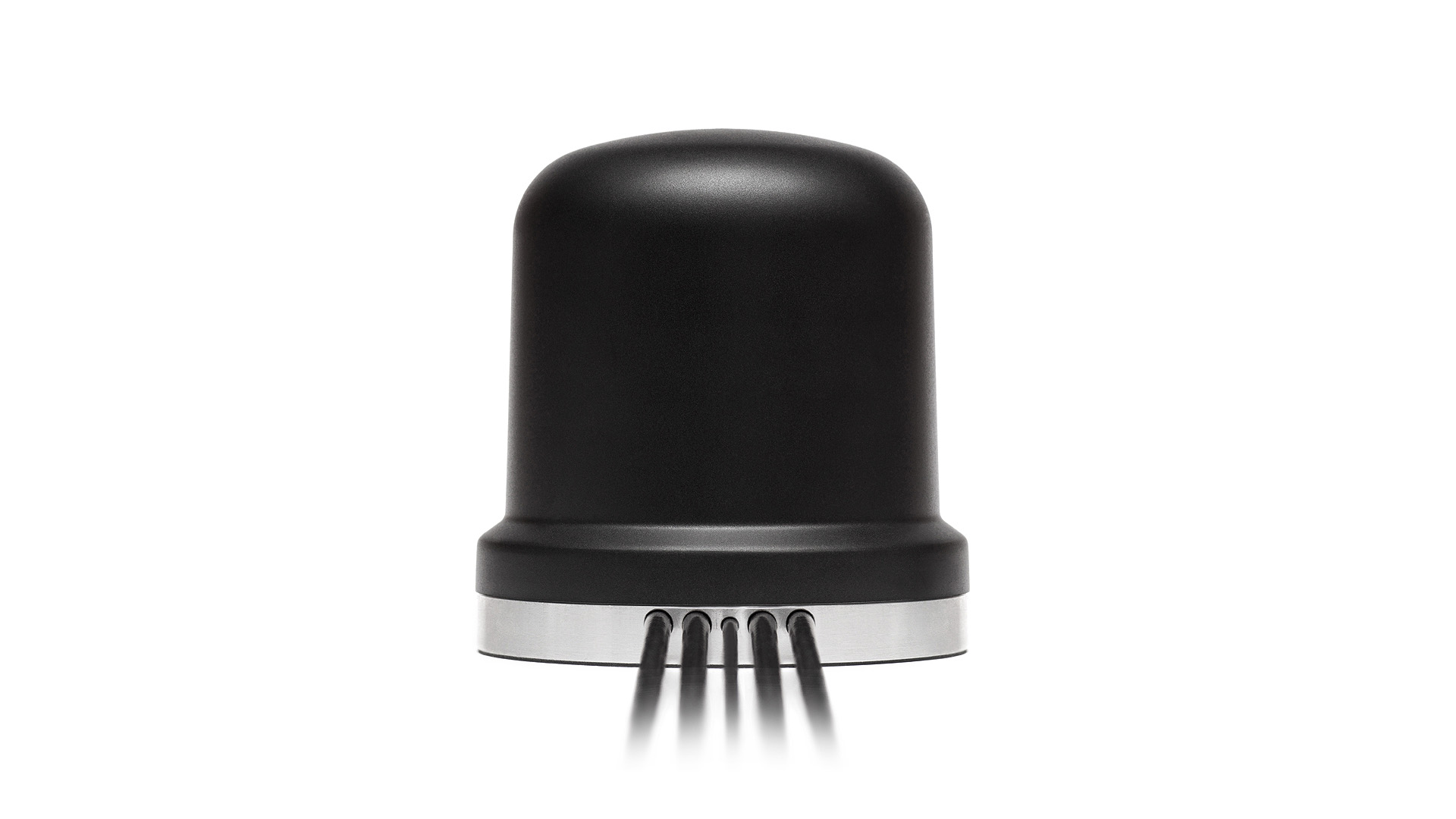

The 2J7086MGFa is an ultra-wideband external 5-in-1 antenna combining 5 ideal technologies into one antenna. The 2J7086MGFa offers 5 high-performance antennas that support 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, WiFi, WIFI 6E / WIFI 7, BT, ZigBee, ISM, GPS, QZSS, Galileo and GLONASS standards making it the most reliable and versatile antenna on the market.

This next-generation antenna integrates durability, high performance, efficiency, and ultra-reliable low-latency communication (URLLC) into a low-cost solution for medical emergency, construction, agriculture, and transportation industries.  This antenna offers good efficiency and isolation which increases signal throughout. This antenna is ideal for applications that require real-time streaming and high-speed video uplink and downlink speed.



Suggested applications include:

  • Automotive and heavy equipment vehicle tracking
  • High Traffic MIMO Device Connectivity
  • Automobile / transportation
  • Telematics remote asset and pipeline monitoring
  • HD video over LTE
  • Cellular mobile and internet
  • First responder and emergency services
  • M2M and telematics
  • IoT
  • Outdoor building and roofs



Cable 1 and 2: 5GNR MIMO

Cables 1 and 2 are designed for 5GNR devices that operate within 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz) and are fully 4G LTE backwards compatible with existing networks. The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. It has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency of up to ~58.8% and 5GNR peak gains of ~5.3 dBi.

Cables 3 and 4: WIFI 6E / WIFI 7 2.4/5.0/6 GHz MIMO ISM

Cables 3 and 4 are dedicated to wireless-enabled device solutions operating within WiFi, ZigBee, and ISM standards. Both cables are designed with an omni-directional radiation pattern for maximum radiation efficiencies delivering unmatched performance making it the ideal solution for high-capacity network communications and HD video streaming. It offers a maximum efficiency of  up to ~49% and 5.0 dBi WiFi Peak Gain.

Cables 5: GPS/GLONASS

Cable 5 is designed for precision navigational applications that operate within GPS, QZSS, Galileo and GLONASS standards. Designed with a hemispherical radiation pattern and linear polarization this antenna provides improved throughput. This active GNSS antenna offers an active gain of 28 dB @ 2.7V The SAW pre-filter blocks inadequate frequencies with an out of band rejection of ~43 dB across the 1575 – 1606 MHz bands.

Installation / Environmental

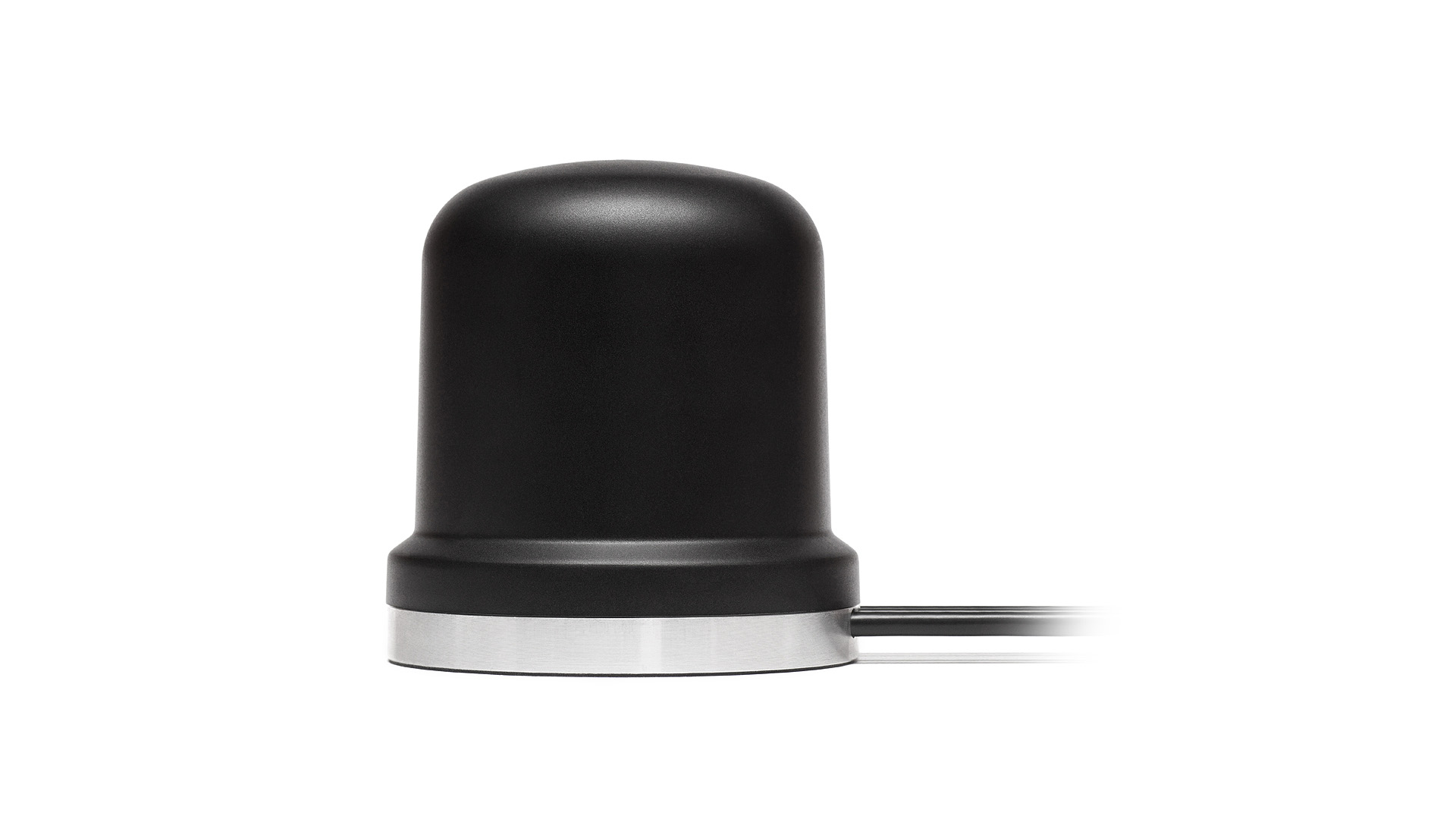

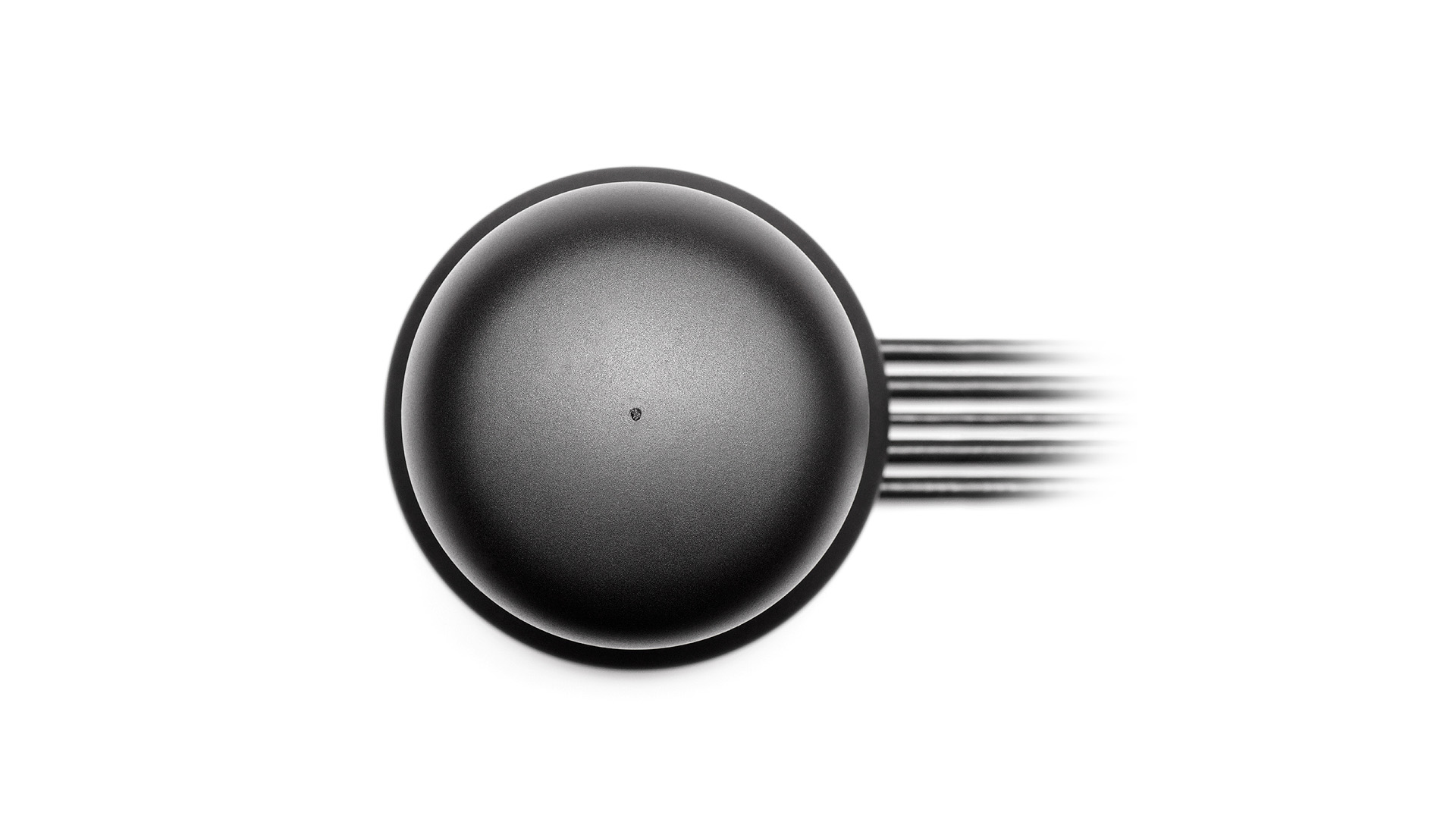

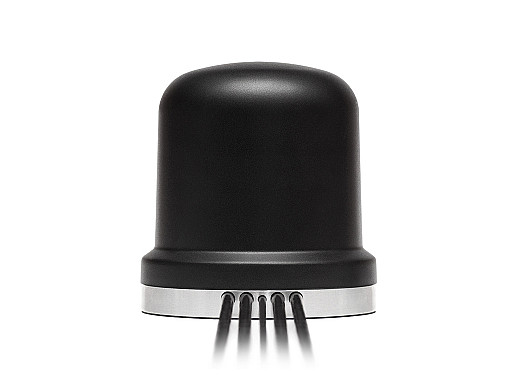

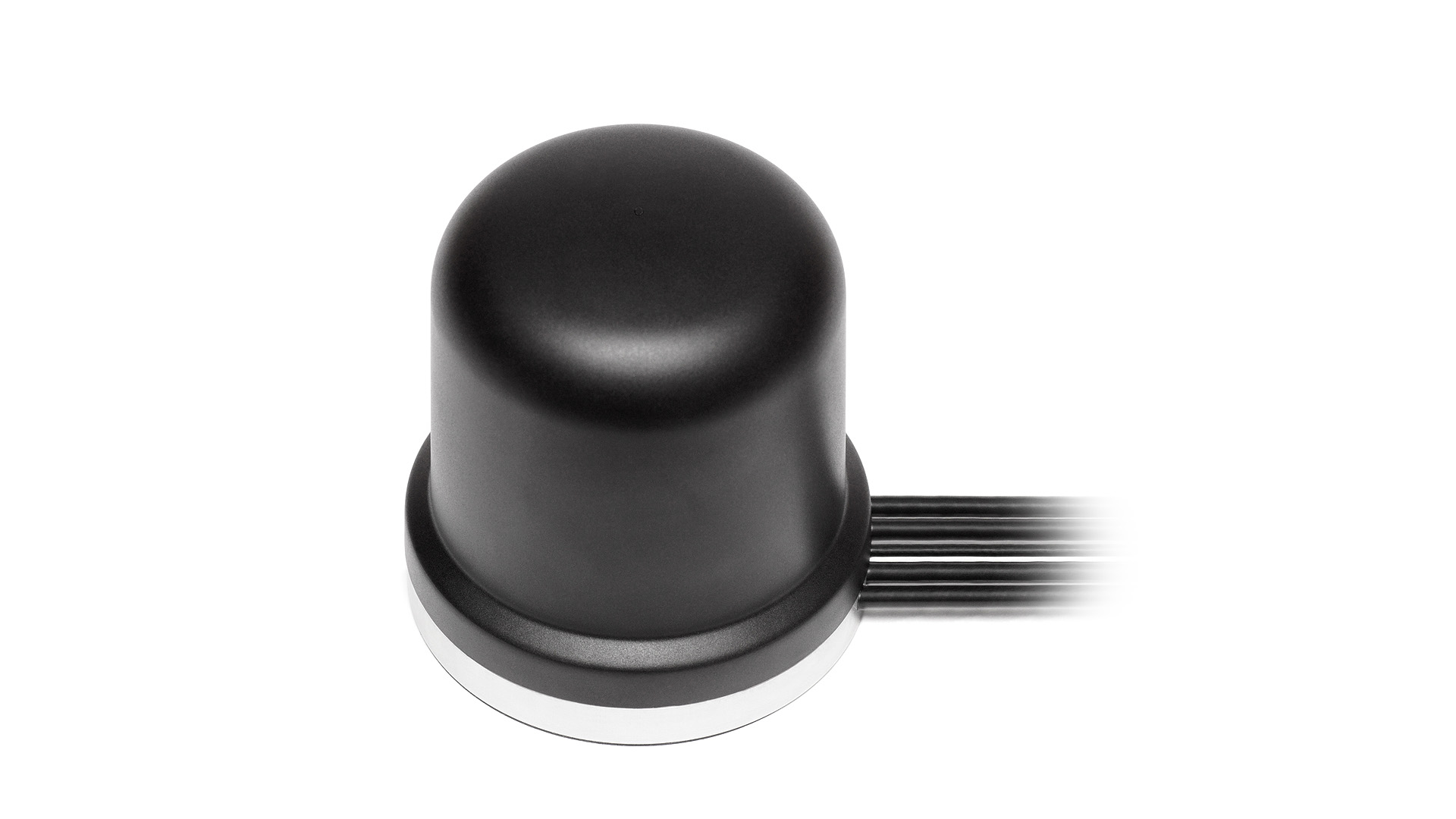

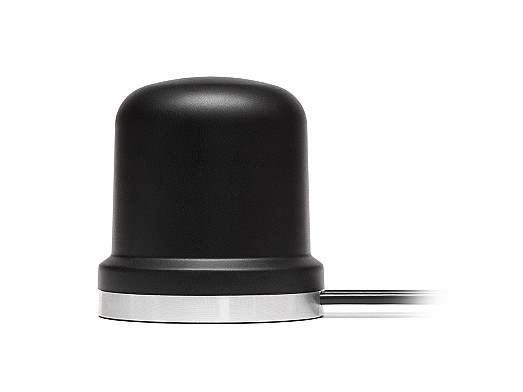

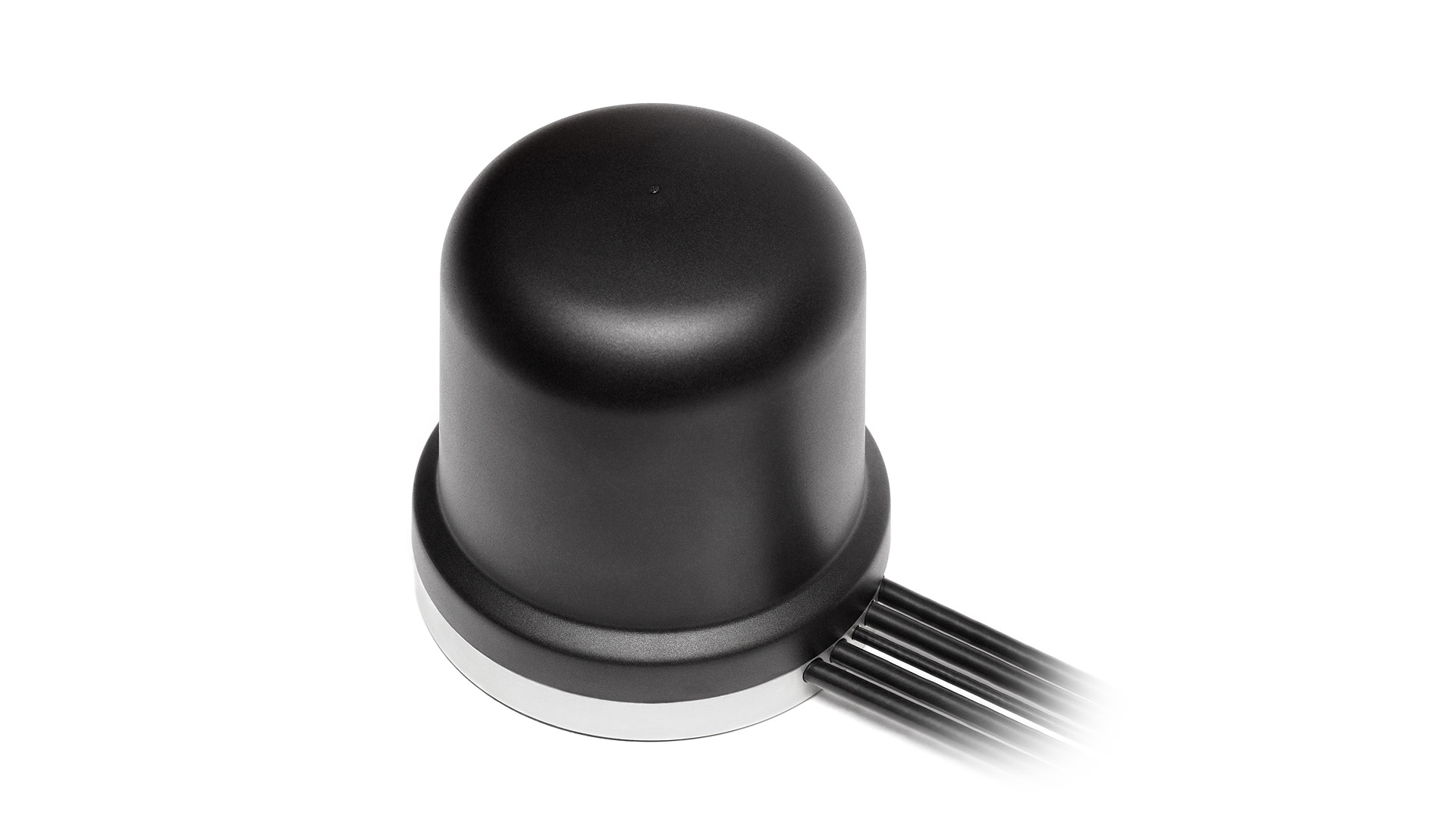

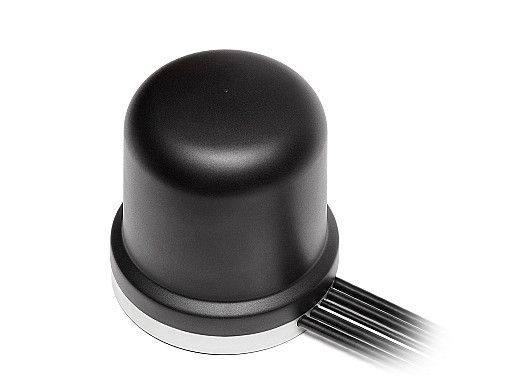

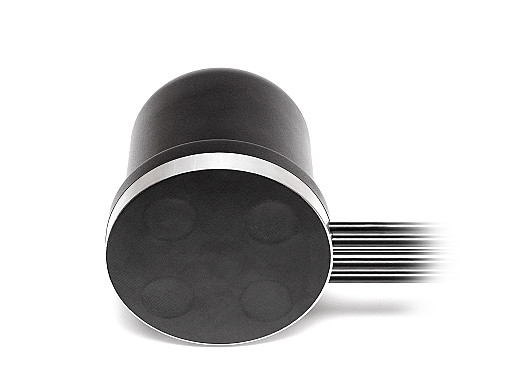

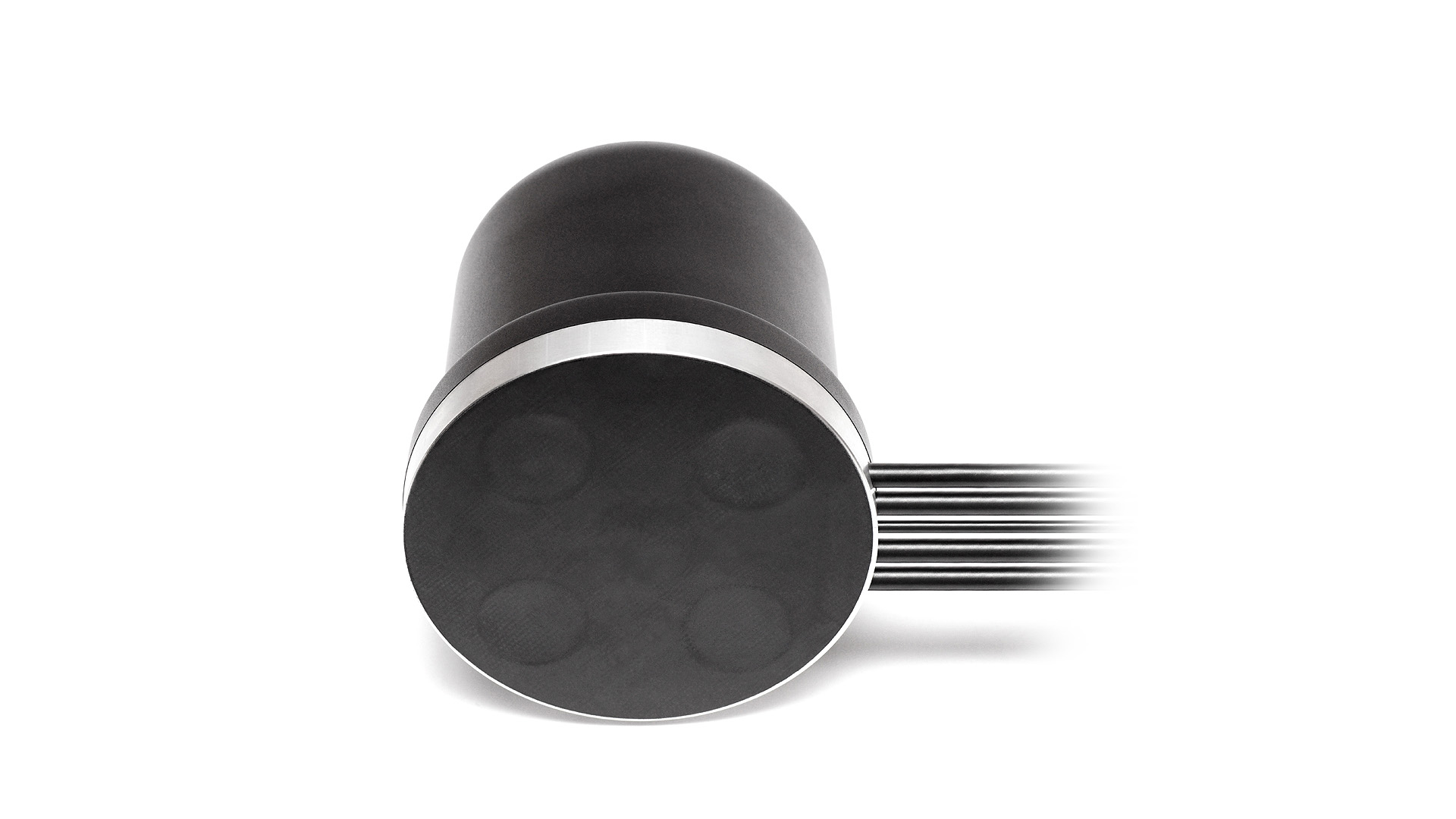

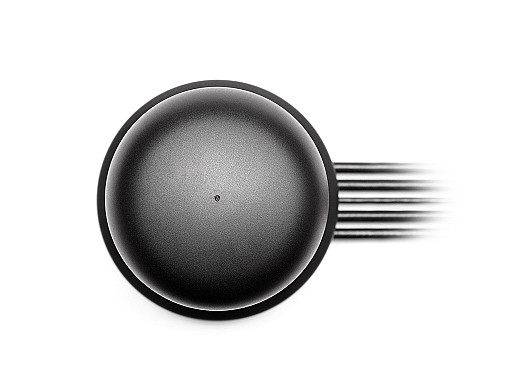

The 2J7086MGFa is a low-profile heavy-duty, external antenna. It is protected with a robust and heavy-duty housing made with (ASA) UV stable material, known for its thermal resistant properties, and an aluminum alloy base. This antenna is impact resistant, dust resistant, and waterproof with full IP67, IP69, and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and magnetic mount installation offer easy installations on a wide range of surfaces. All cables and connectors can be customized.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything Marine Aviation Applications Satellite Realtime Navigation MIMO Device Connectivity Retail Services Home Applications Public Wi-Fi Short-Range Personal Area Networks High-Density Environments MU-MIMO Connectivity RFID devices V2X - Vehicle to Everything
