Antenna and electrical specifications

connection 1

2.4/5.0/6.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.6:1, ~1.3:1, ~1.4:1
Efficiency (%) ~63.7, ~61.3, ~48.1
Peak Gain (dBi) ~5.9, ~6.3, ~6.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

2.4/5.0/6.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
Max. Input Power (W) 25
VSWR ~1.5:1, ~1.4:1, ~1.6:1
Efficiency (%) ~63.2, ~62.2, ~48.7
Peak Gain (dBi) ~4.8, ~6.3, ~6.4
Impedance (Ohm) 50
Polarisation Linear
connection 3

2.4/5.0/6.0 GHz ISM

VSWR ~1.6:1, ~1.9:1, ~1.6:1
Efficiency (%) ~61.8, ~52.0, ~52.1
Peak Gain (dBi) ~4.4, ~6.3, ~7.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125

Key Features

3-in-1 Combination Antenna
Ground Plane Independent
7.1 dBi WIFI Peak Gain
High Performance
Anti-Rotation Mounting
Customizable Cable and Connector

Antenna Description

Seamless and Turbocharged: Experience Ultra-Fast WiFi Connectivity

2J Antennas is excited to add the newly designed 3-in-1 WiFi-6E 2.4/5.0/6.0 GHz ISM MIMO antenna (2J6C02Bb) to our Bullion Series. This ground plane independent, high performance, compact solution has a 7.1 dBi WiFi peak gain, making it one of the best products on the market in its category. This antenna series is a popular choice for automotive OEM manufacturers and aftermarket distributors.

This MIMO (Multiple-Input, Multiple-Output) 3x WiFi-6E antenna can be used in various applications that require high-speed and reliable wireless connectivity. With three streams and the extended spectrum of WiFi-6E, this antenna configuration offers increased data throughput, reduced interference, and improved overall performance. Here are some potential applications for a MIMO 3x WiFi-6E antenna:

Suggested applications include:

-High-density Wi-Fi networks: In environments with a high concentration of wireless devices, such as stadiums, airports, conference centers, or large offices, the 2J6C02Bb can provide better capacity and support more users simultaneously.

-Internet of Things (IoT): As IoT devices become more prevalent, this antenna can handle the increased traffic from numerous smart devices, sensors, and appliances, providing reliable communication in smart homes, smart cities, and industrial IoT deployments.

-Virtual Reality (VR) and Augmented Reality (AR): VR and AR applications require low latency and high bandwidth to deliver a compelling and immersive experience.

-Video streaming and online gaming: With the increasing popularity of 4K and ultra-high-definition streaming and gaming, this MIMO 3x WiFi-6E antenna can support high-quality, low-latency video and gaming experiences for multiple devices simultaneously.

-Outdoor and long-range deployments: Point-to-point or point-to-multipoint setups to establish long-range wireless links for outdoor connectivity in rural areas, campus-to-campus connections, or wireless backhaul applications.

-Public Wi-Fi hotspots: In public areas like cafes, libraries, and parks, where multiple users connect to a shared Wi-Fi network, this solution provides faster and more reliable connectivity for a better user experience.

-Smart transportation: In smart transportation systems, such as connected vehicles or trains, it enables reliable communication between vehicles and infrastructure components for improved safety and traffic management.


3 X WiFi-6E 2.4/5.0/6.0 GHz ISM MIMO

The three cables on this antenna are expertly tailored for LPWA (Low Power Wide Area) devices, encompassing a wide range of communication standards, including WiFi, Bluetooth (BT), ZigBee, ISM (Industrial, Scientific, and Medical), SigFox, and LoRa.

Built to excel in today's demanding wireless landscape, this antenna seamlessly integrates the power of the 2.4/5.0/6.0 GHz bands, alongside the revolutionary WiFi-6E technology. Say goodbye to connectivity limitations and embrace a new era of long-range and short-range capabilities that offer unparalleled performance without any interference from other devices or networks.

Installation / Environmental

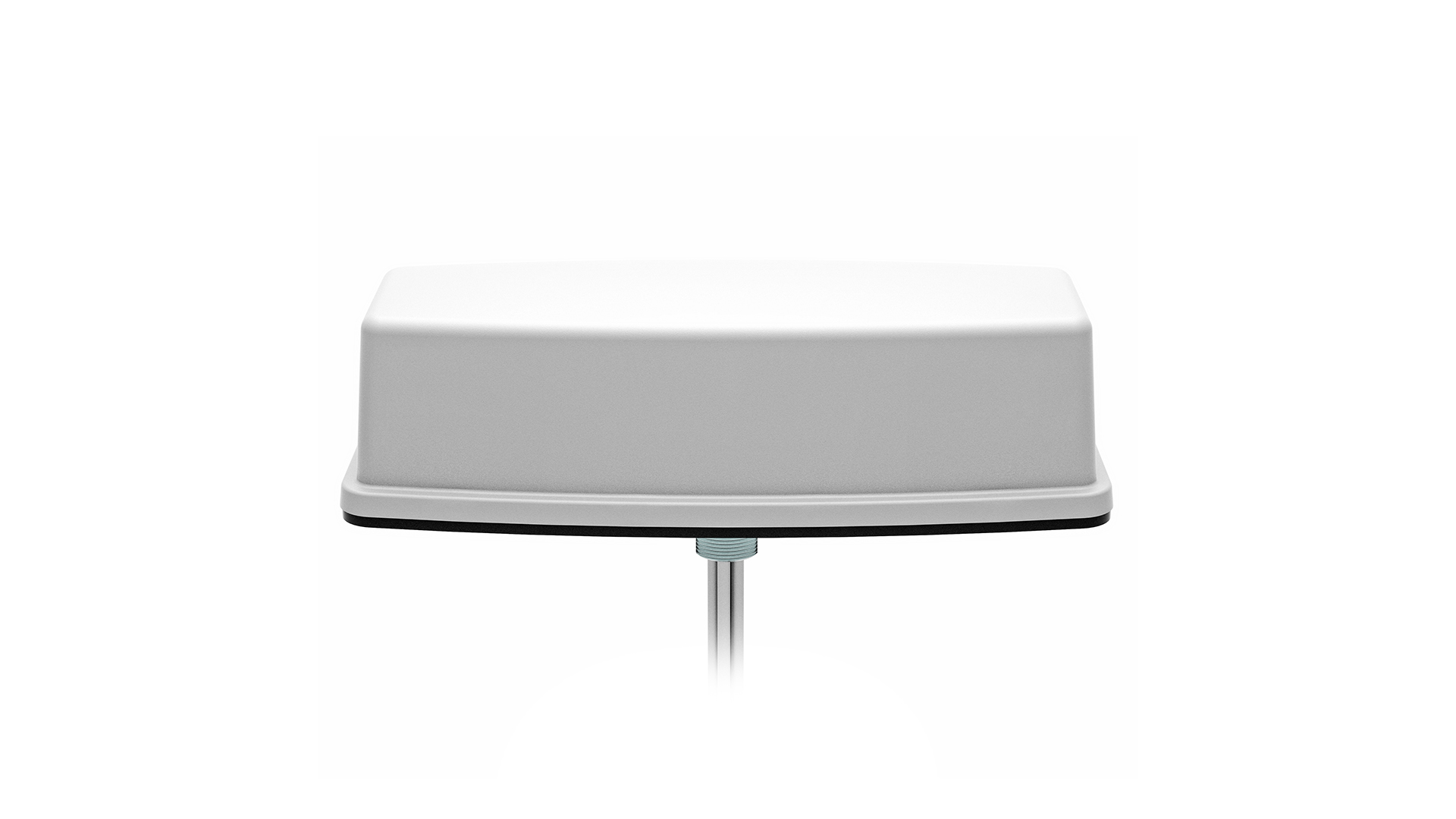

The 2J6C02Bb is fully IP67/IP69 rated and manufactured with a lightweight ASA UV stable material that provides durability against moisture without any compromise to performance. This ground plane independent antenna measures only 193 x 76.3 x 52.4 mm and with reliable anti-rotation screw mounting making it ideal for permanent installations on any surface.  Please see 2J6C02Mb for the 3-in-1 magnetic mounting antenna option or the 2J6C02Mc for the 4-in-1 magnetic option.

Cables 1-3 are low loss LL195 that measure 300 cm in length and feed through the screw mount connection located at the antenna base. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
