Low Profile, Futureproof Solution For WIFI 6E / WIFI 7 Applications
The Phoenix 2J6902MPa is a dual external antenna WIFI 6E / WIFI 7 suitable for 2.4/5.0/6.0, WiFi, and WIFI 6E / WIFI 7 technologies. WIFI 6E / WIFI 7 offers lower power consumption, higher data rates, and increased capacity with reduced latency, which supports a higher volume of users and devices. These features make this antenna ideal for the next generation of router connectivity and commercial and residential wireless applications.
This high-performance antenna is designed for devices that operate within WiFi, BT, ZigBee, and ISM standards. The WIFI 7 technology significantly enhances the wireless networking experience, and its MIMO configuration delivers higher-quality video streaming and faster data transfer, to name a few applications. Its high-bandwidth channels of up to 320 MHz allow for more data to be transmitted simultaneously.
2J6902MPa combines 3.8 dBi WiFi peak gain and up to 38.4% efficiency, ensuring high performance where uninterrupted signal strengths and high bandwidths are desired, even in very crowded networks. Implementing an omnidirectional design is ideal for IoT and automotive wireless systems as it provides 360° of coverage.
Such features make it exceptionally suitable for applications requiring rapid WiFi speeds and reliable network connectivity. This is a substantial improvement for routers, gaming, and IoT devices, amongst other applications.
Suggested Applications:
- Entertainment and Multimedia
- Smart Home
- Smart Cities
- Gaming and Virtual Reality
- Automation
- Marine
- Defense
- Logistics
- Wearables
- MU-MIMO Connectivity
- Internet of Things (IoT)
Installation and Durability
With a user-friendly peel-n-stick adhesive magnetic mount, the Phoenix 2J6902MPa can be effortlessly installed on any metal surface, be it a vehicle or a metal building. No additional grounding is required, making the installation process a breeze. The adhesive and magnetic mount is robust enough for long-term installations, yet it also provides an easy option for temporary applications and relocation, ensuring your convenience at all times.

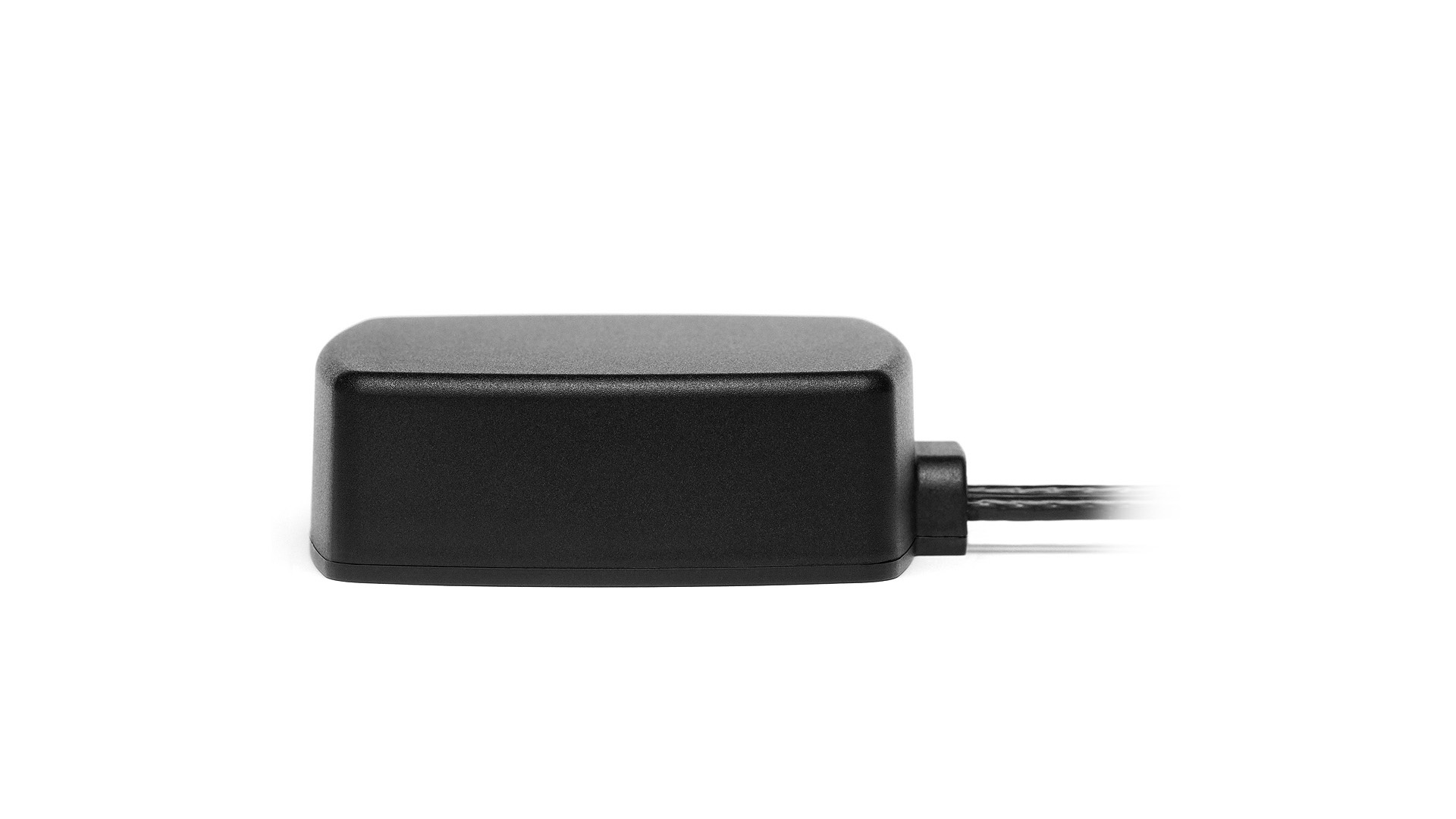

The Phoenix 2J6902MPa is built to last, enclosed in a robust, waterproof, and dust-resistant ASA UV-stable housing. This compact antenna, measuring 89 × 76 × 27/30 mm, is designed to withstand extreme environmental conditions, ensuring uninterrupted performance. It comes with a standard SMA-Male connector and a 300 cm long D302 cable (custom options available), providing you with the flexibility you need.
This antenna is IP67 and IP69 certified. Don't hesitate to contact our highly skilled team members to assist with customization and integration needs.
At 2J Antennas, we are committed to the environment. We have taken significant steps to enhance sustainability, ensuring our products are fully RoHS and Reach compliant. This commitment to sustainability is a testament to our dedication to not just providing high-quality products but also to making a positive impact on the world around us.
