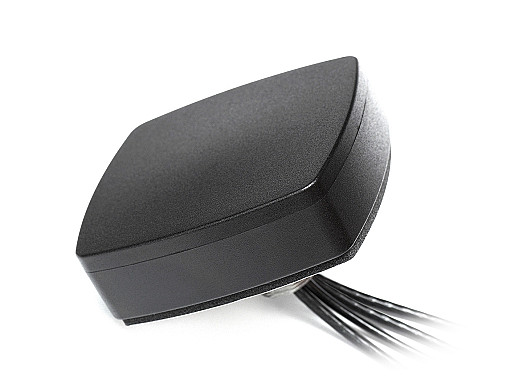

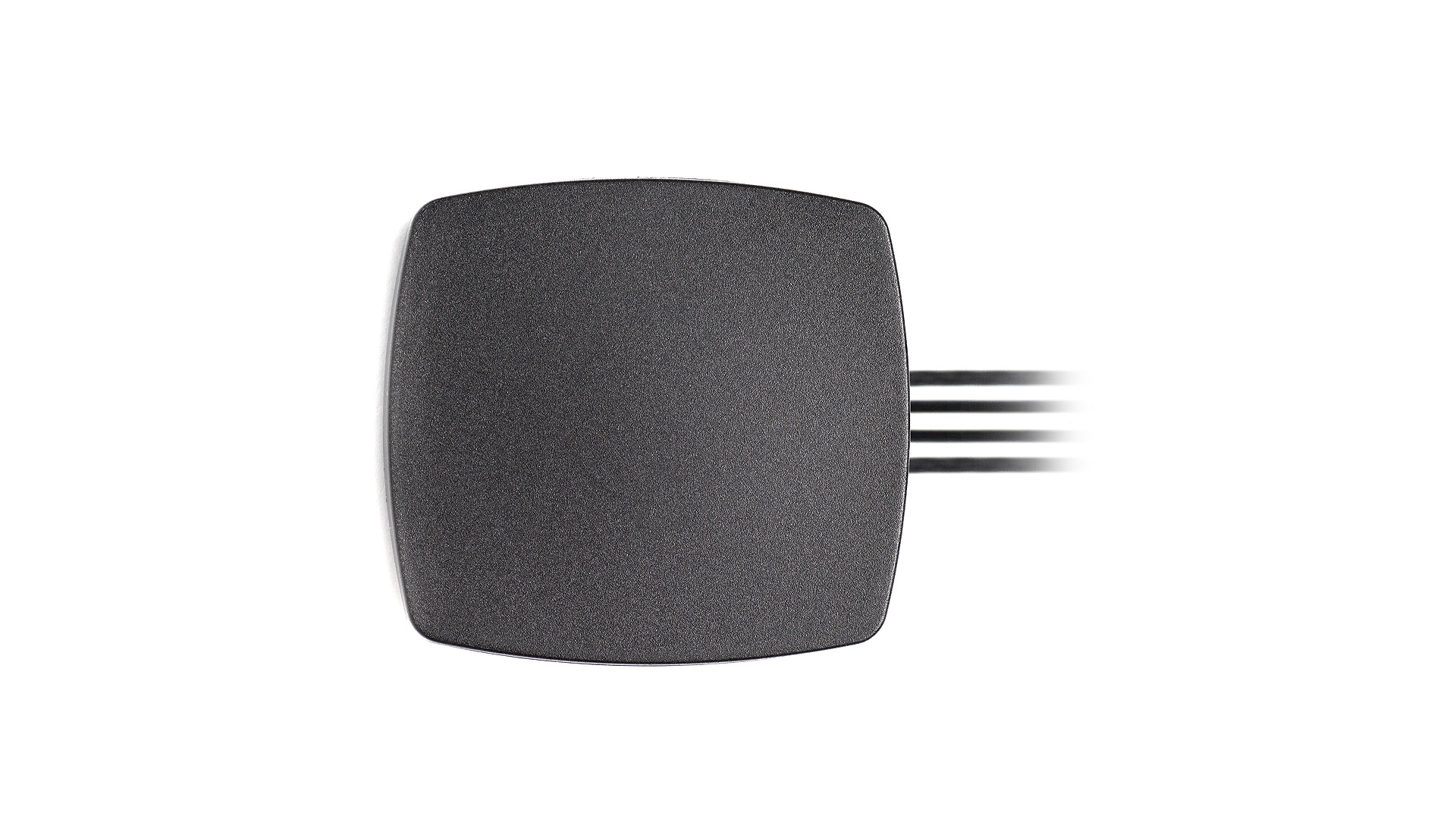

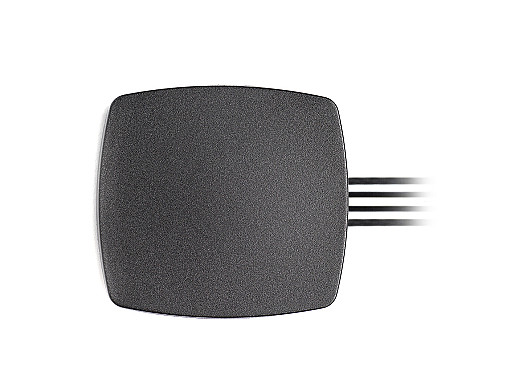

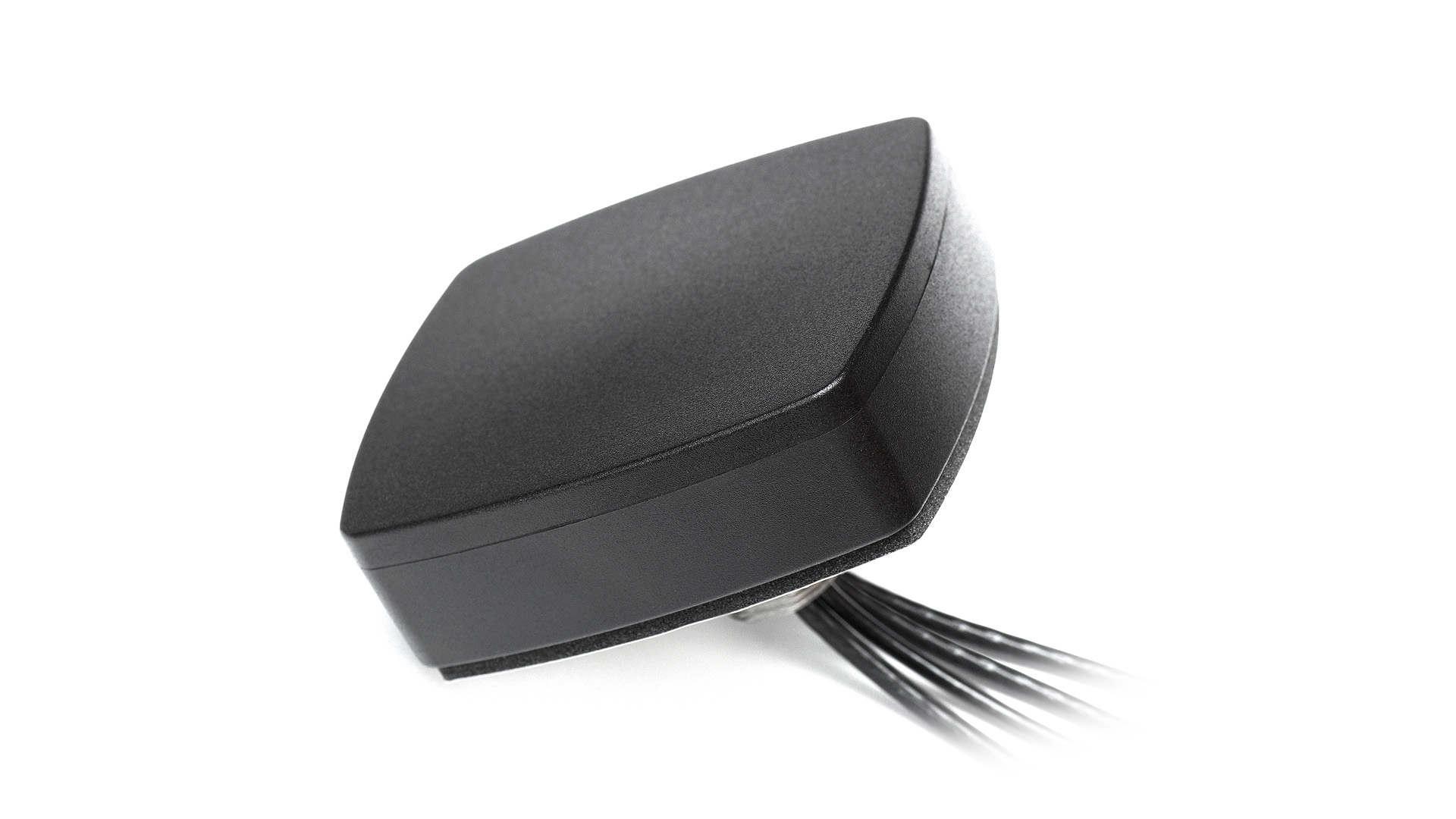

Phoenix 4-in-1 WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO Screw Mount Antenna

Supercharge Your WIFI 6E / WIFI 7 Experience With 4x MIMO Connections In One Antenna

Step into the future of WiFi connectivity with the Phoenix 4-in-1 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM MIMO antenna. This antenna is engineered to allow computing and mobile devices to reach exceptional signal quality operating within 2410 MHz to 7125 MHz frequencies. This solution is engineered to support Multi-User Multiple Input Multiple Output (MU-MIMO) technology, making it exceptionally well-suited for applications where multiple devices require simultaneous high-speed internet access.

The antenna's compatibility with WiFi 6E also means it can operate in the newly opened 6 GHz band, offering a cleaner spectrum with less interference and better channel availability.

Cable 1, 2, 3 & 4: WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM

The four cables on this antenna are expertly tailored for LPWA (Low Power Wide Area) devices, encompassing a wide range of communication standards, including WiFi, Bluetooth (BT), ZigBee and ISM (Industrial, Scientific, and Medical). 2J6902Bc offers up to 5.5 dBi WiFi peak gain and up to 49.5% efficiency, ensuring ultra-optimal antenna performance where uninterrupted signal strengths and high bandwidths are desired, even in very crowded networks. Implementing an omnidirectional design is ideal for IoT and automotive wireless systems as it provides 360° of coverage.

This antenna dramatically increases network capacity and efficiency, allowing for faster data transmission rates and reduced latency. This makes it ideal for bandwidth-intensive applications like high-definition video streaming, online gaming, and virtual reality experiences.

Suggested Applications:

• Entertainment and Multimedia
• Smart Home
• Smart Cities
• Medical and Healthcare
• Drone Operation
• Gaming and Virtual Reality
• Retail Services
• Transportation
• Automation
• Marine
• Defense
• Logistics
• Wearables
• Routers

Installation and Durability

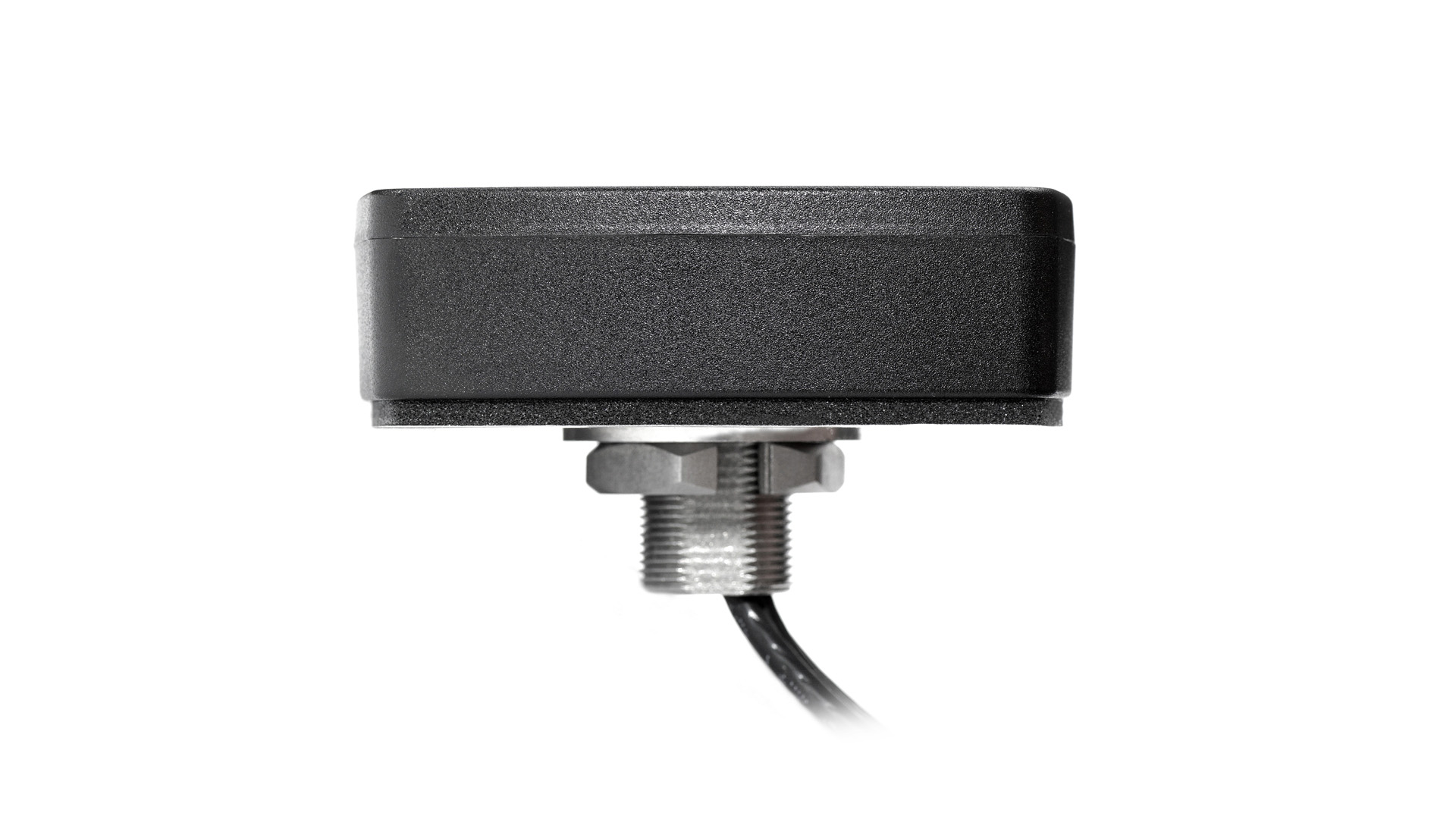

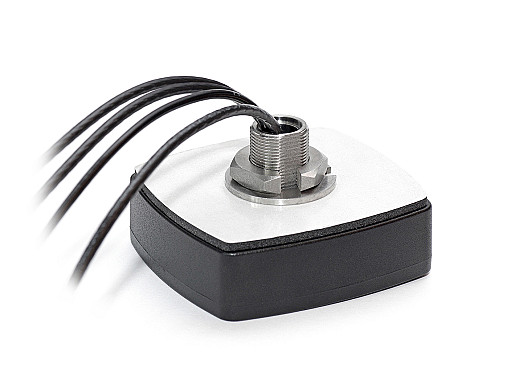

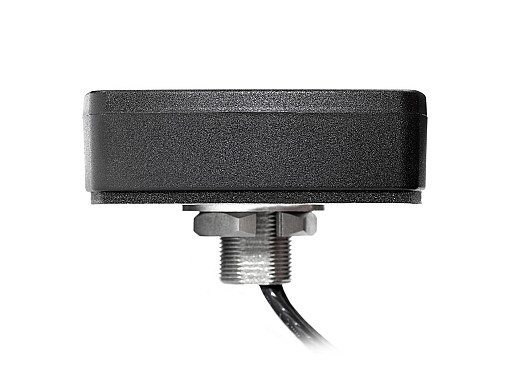

This ground plane independent antenna measures only 80 x 74 x 25.6 mm and features a durable, ASA material housing that is both waterproof and dustproof, with added UV protection, offering reliable protection in extreme weather conditions. Its screw mounting features an anti-rotation allowing easy and secure permanent installations. This external antenna comes equipped with a standard SMA-Male connector and a 300 cm long D302 cable, with custom options available upon request.

This antenna is IP67 and IP69 certified. Our highly skilled team members are available to assist with any customization and integration needs.

2J Antennas recognizes the importance of the environment and has implemented steps to further sustainability, making us fully RoHS and Reach compliant.
