Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-13.2, ~-15.7, ~-12.6, ~-11.6
VSWR ~1.6:1, ~1.6:1, ~1.7:1, ~1.8:1
Efficiency (%) ~55.2, ~46.9, ~30.4, ~26.3
Peak Gain (dBi) ~3.1, ~4.5, ~2.0, ~0.9
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-14.6, ~-15.4, ~-15.6, ~-15.7
VSWR ~1.5:1, ~1.5:1, ~1.5:1, ~1.4:1
Efficiency (%) ~55.1, ~46.9, ~35.5, ~34.0
Peak Gain (dBi) ~3.3, ~4.1, ~3.2, ~2.9
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 3

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-15.4, ~-14.3, ~-13.7, ~-13.0
VSWR ~1.5:1, ~1.6:1, ~1.7:1, ~1.7:1
Efficiency (%) ~55.3, ~44.0, ~29.7, ~27.5
Peak Gain (dBi) ~3.5, ~3.4, ~2.6, ~3.1
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 4

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-15.2, ~-16.8, ~-13.9, ~-12.5
VSWR ~1.5:1, ~1.4:1, ~1.6:1, ~1.7:1
Efficiency (%) ~57.1, ~48.4, ~30.4, ~25.1
Peak Gain (dBi) ~3.4, ~4.5, ~2.5, ~1.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 5

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.6:1, ~1.5:1, ~1.6:1
Efficiency (%) ~30.8, ~20.2, ~47.2
Peak Gain (dBi) ~4.5, ~3.1, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 6

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.9:1, ~1.7:1, ~1.9:1
Efficiency (%) ~37.6, ~23.0, ~42.3
Peak Gain (dBi) ~6.0, ~5.0, ~3.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 7

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.3:1, ~1.6:1, ~1.6:1
Efficiency (%) ~38.2, ~34.3, ~44.4
Peak Gain (dBi) ~3.7, ~2.3, ~3.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 8

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.4:1, ~1.5:1, ~1.5:1
Efficiency (%) ~36.3, ~28.4, ~39.4
Peak Gain (dBi) ~4.4, ~2.6, ~3.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 9

GPS/GLONASS

Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~4.5, ~5.0
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6

Key Features

9-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
4.5 dBi 5G NR Peak Gain
6.0 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Small Form Factor
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

Sleekest 9-in-1 Antenna Design on the Market, Accelerating 5GNR and WIFI 6E / WIFI 7 Performance

The super low profile 9-in-1 adhesive mount antenna (2J4H86PGFf) is 55% smaller than what the competition can offer and is designed for 5GNR, 2.4/5.0/6.0 WIFI 6E / WIFI 7 and GNSS bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. These features make it a leading antenna solution for the next generation of mobile services including high-end public safety, transportation, automotive, consumer and commercial industries. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

  • Wireless broadband communications
  • Private Networking
  • Cellular and Mobile Data and Voice
  • Data Terminals, Base Stations and Routers
  • Critical Communications and Public Safety
    • Law Enforcement
    • Medical Transportation
    • Fire Departments
  • Precision Navigation
  • Tracking/ Mapping
  • Industrial Machinery
  • Automotive and Transportation
  • Telematics
  • Utilities
  • Mobile Modems



4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G and 2G standards. With accelerated 5GNR technology and edge computing workloads, this antenna  outperforms its competition.  Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360 degree signal strength and quality.



4 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 5-8 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi and consistent network availability.



GNSS GPS/GLONASS/Galileo/QZSS

Cable 9 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 6KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1602 MHz) from passing from the antenna to the receiver.



Installation / Environmental

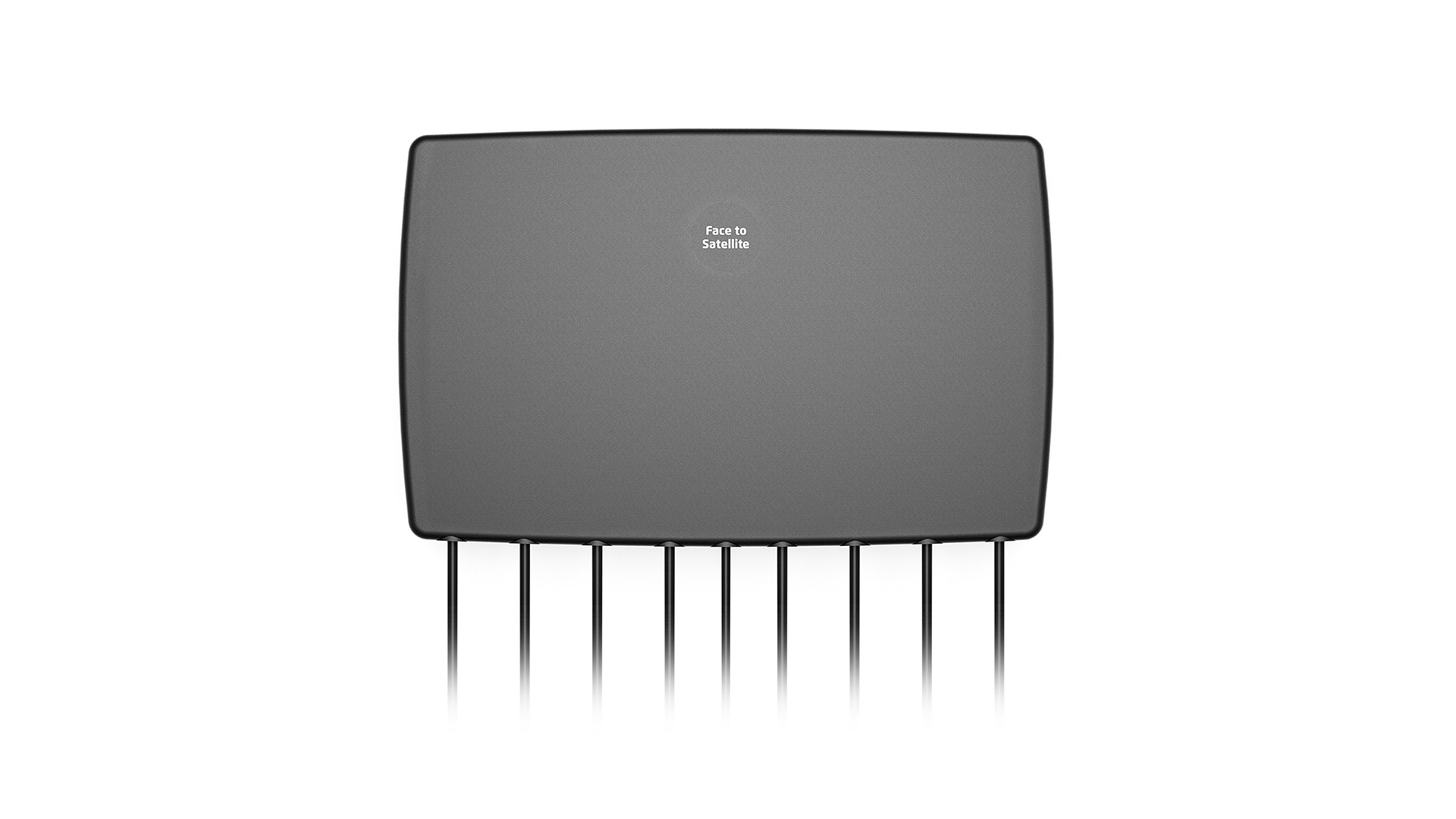

This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any type of non-metallic surface making it ideal for temporary installations. We also offer this antenna with magnetic mount and screw mount, please see product 2J4H86MGFf and 2J6B86BGFf for more details. The low-profile housing measures only 198 x 127 x 15.7 mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture.  This antenna is available in black or white color.

2J4H86PGFf connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long D302 (5GNR/WIFI 6E / WIFI 7 ISM)/ LL100 (GNSS) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything Marine Aviation Applications Satellite Realtime Navigation Retail Services Home Applications Public Wi-Fi Short-Range Personal Area Networks RFID devices V2X - Vehicle to Everything High-Density Environments MU-MIMO Connectivity MIMO Device Connectivity
