Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-16.3, ~-14.9, ~-13.1, ~-12.9
VSWR ~1.5:1, ~1.5:1, ~1.7:1, ~1.7:1
Efficiency (%) ~58.0, ~49.4, ~32.3, ~32.1
Peak Gain (dBi) ~3.2, ~5.2, ~4.5, ~4.5
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-14.9, ~-14.6, ~-15.3, ~-15.2
VSWR ~1.6:1, ~1.5:1, ~1.6:1, ~1.4:1
Efficiency (%) ~58.1, ~47.0, ~35.5, ~39.8
Peak Gain (dBi) ~3.9, ~5.8, ~5.6, ~6.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 3

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-16.2, ~-14.2, ~-14.4, ~-13.2
VSWR ~1.6:1, ~1.6:1, ~1.6:1, ~1.6:1
Efficiency (%) ~58.0, ~46.7, ~35.8, ~36.7
Peak Gain (dBi) ~3.4, ~5.8, ~5.3, ~5.7
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 4

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-16.2, ~-15.5, ~-13.1, ~-13.1
VSWR ~1.4:1, ~1.5:1, ~1.7:1, ~1.6:1
Efficiency (%) ~58.2, ~47.3, ~33.9, ~37.6
Peak Gain (dBi) ~3.5, ~5.7, ~5.1, ~5.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 5

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.7:1, ~1.7:1, ~1.8:1
Efficiency (%) ~37.7, ~31.2, ~42.6
Peak Gain (dBi) ~6.1, ~4.5, ~3.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 6

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.3:1, ~1.6:1, ~1.2:1
Efficiency (%) ~37.9, ~34.5, ~44.7
Peak Gain (dBi) ~2.7, ~2.3, ~3.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 7

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.4:1, ~1.4:1, ~1.6:1
Efficiency (%) ~36.7, ~30.8, ~39.7
Peak Gain (dBi) ~4.4, ~2.6, ~3.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 8

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.6:1, ~1.5:1, ~1.6:1
Efficiency (%) ~31.1, ~22.8, ~31.1
Peak Gain (dBi) ~4.6, ~3.3, ~4.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

8-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
6.6 dBi 5G NR Peak Gain
6.1 dBi WIFI Peak Gain
High Performance
Small Form Factor
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

Sleekest 8-in-1 Antenna Design on the Market, Accelerating 5GNR and WIFI 6E / WIFI 7 Performance

The super low profile 8-in-1 magnetic mount antenna (2J4H85Me) is 55% smaller than what the competition can offer and is designed for 5GNR and 2.4/5.0/6.0 bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO allowing devices to remain online while moving through different coverage areas. These features make it a leading antenna solution for the next generation of mobile services including high-end public safety, transportation, automotive, consumer and commercial industries. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

  • Wireless broadband communications
  • Private Networking
  • Cellular and Mobile Data and Voice
  • Data Terminals, Base Stations and Routers
  • Critical Communications and Public Safety
    • Law Enforcement
    • Medical Transportation
    • Fire Departments
  • Industrial Machinery
  • Automotive and Transportation
  • Telematics
  • Utilities
  • Mobile Modems



4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G, 2G, Cellular, HSPA+, UMTS, WCDMA, CDMA, GSM, GPRS, EDGE, EV-DO standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition.  Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality.



4 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 5-8 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi and consistent network availability.



Installation / Environmental

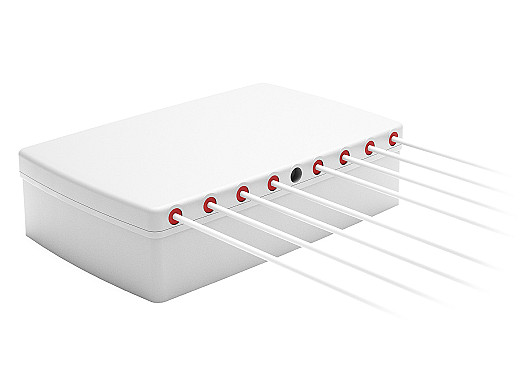

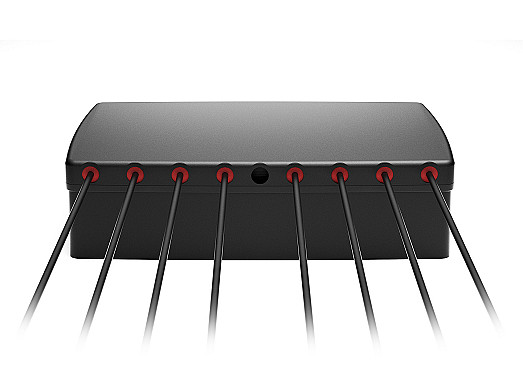

This ground plane independent antenna can be easily installed with the heavy-duty magnetic mount on metal surfaces such as vehicles and metal buildings for permanent or temporary applications. The low-profile housing measures only 198 x 126 x 50.7mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.

2J4H85Me connections are standard SMA-Male (5GNR)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long D302 (5GNR/WIFI 6E / WIFI 7 ISM) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
